Part Number

387-7067

3877067

Specification

PSI Rating: 1600 psi
Brake Type: Made for Disc Brakes

Port Size: 3/16"
Power Source: 12V DC
Housing Material: Extruded anodized aluminum
Wire Gauge: Heavy-duty 12 Gauge wire (Black for constant power, Blue for brake controller, White for ground, Yellow for break-away)
Wire Length: 4 feet
Brake Fluid Requirement: D.O.T. 3 or 4 (fluid not included)
Axle Compatibility: 1 to 3 axles

Feature

【Durable Construction】

Enclosed in a robust extruded anodized aluminum housing, built to withstand harsh environmental and road conditions.
【Fast Response Time】

Offers the industry's quickest braking response, ensuring superior braking safety and performance for heavy-duty trailers.
【Compliance】

Meets all CFR-393 Federal Braking Requirements and Department of Transportation (D.O.T.) regulations for legal operation.
【Versatile Compatibility】

Works with disc brakes, ensuring reliable and consistent braking performance across different systems.
【Easy Installation】

Color-coded heavy-duty wires and a straightforward setup process make installation simple and quick.
【Universal Fit】

Engineered to accommodate trailer setups from 1 to 3 axles, providing flexibility for various applications.

Application

For trailers transporting horses, cars, construction, and farm equipment.

Designed to fit any trailer configuration with up to 3 axles, providing versatile application for various setups.

Package Includes

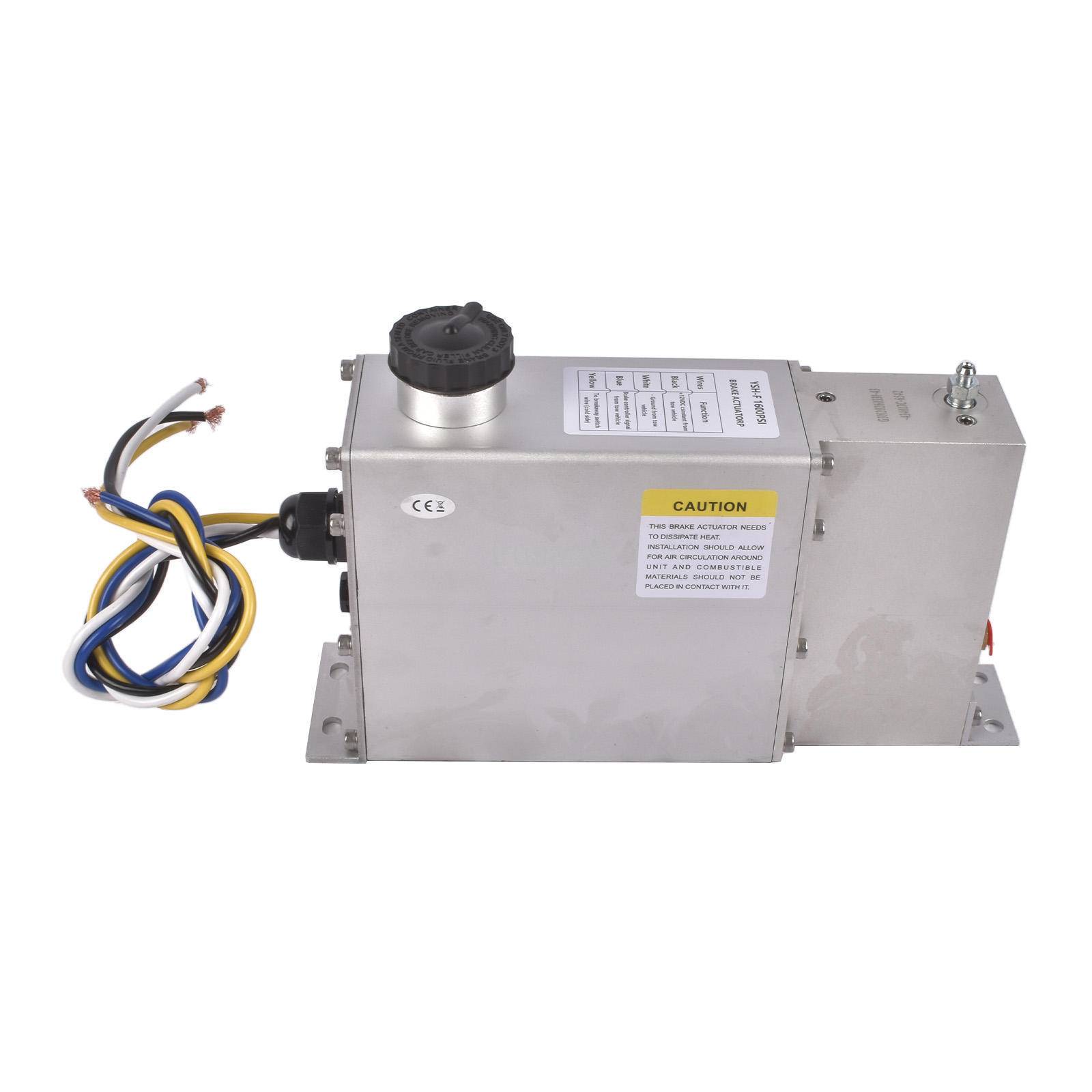

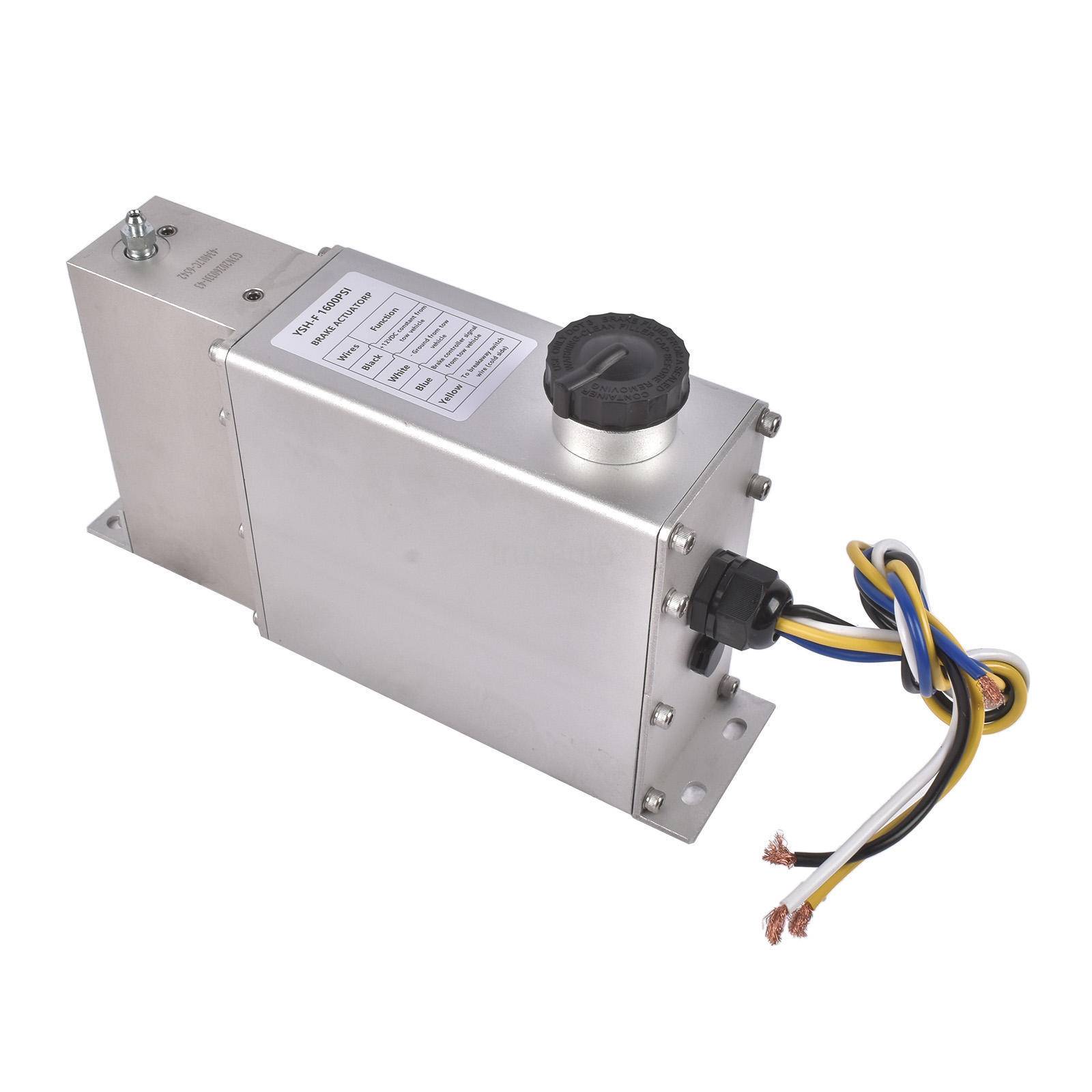

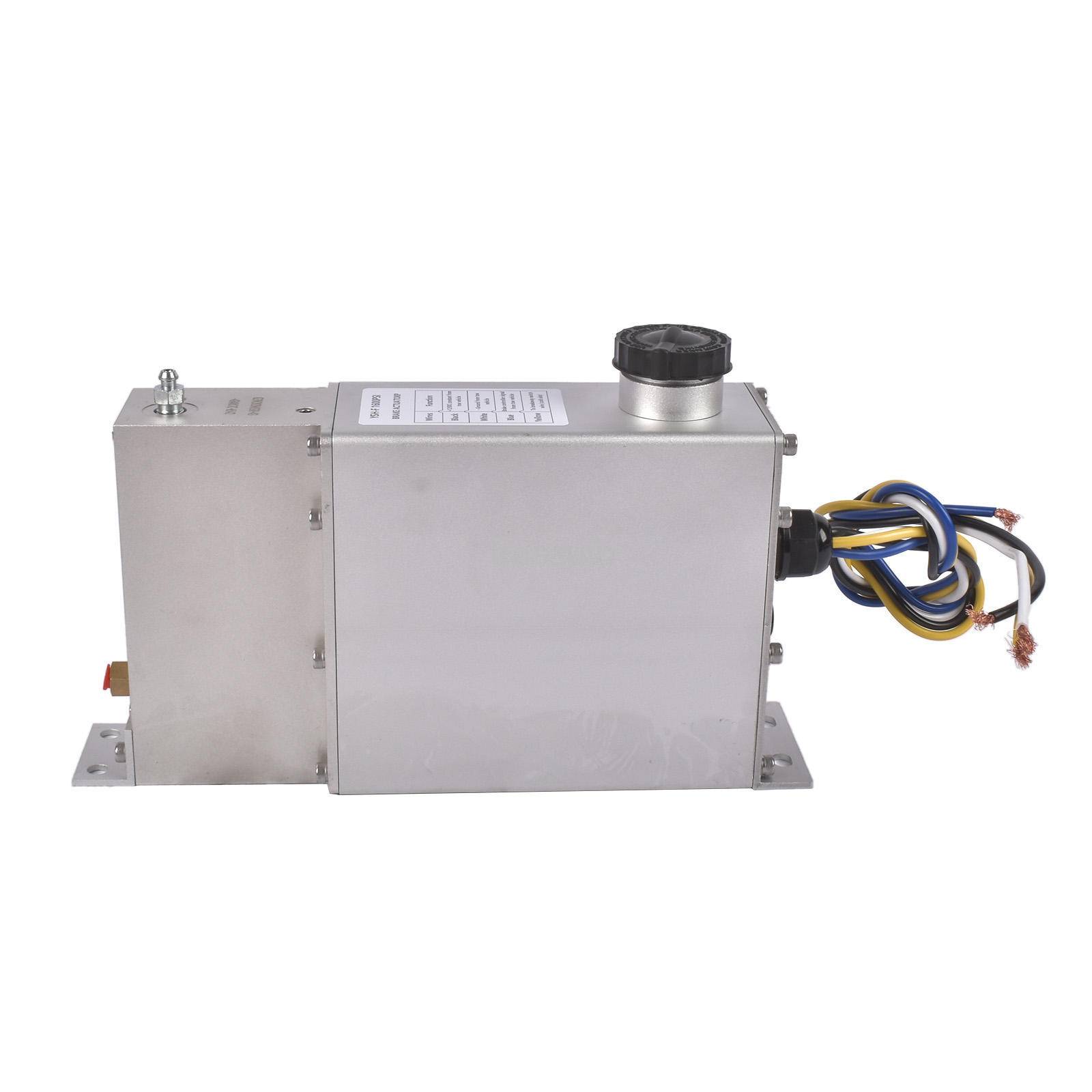

1x Hydraulic Brake Actuator - 1600 psi (As Pics Shown)
