Description:

This is a new in the box C10 1967-1972 Chevrolet truck 8 inch dual diaphragm brake booster and master cylinder with a disc drum proportioning valve. This is set up for disc brakes in the front and drum brakes in the rear.

Features:

--8" Dual Zinc brake booster with Bail Top Master Cylinder

--This 8" booster is for Chevy Trucks 1967 - 1972.

--The booster mounts with a 4-bolt pattern.

--The 4 bolts are in a perfect square and are 3 3/8" apart (center to center).

--The master cylinder in this kit is the Bail Top style and features a 1" bore.

--This master has ports on both sides (9/16" and 1/2") and includes plugs to block the unused ports.

--This master cylinder will work with your disc/drum setup.

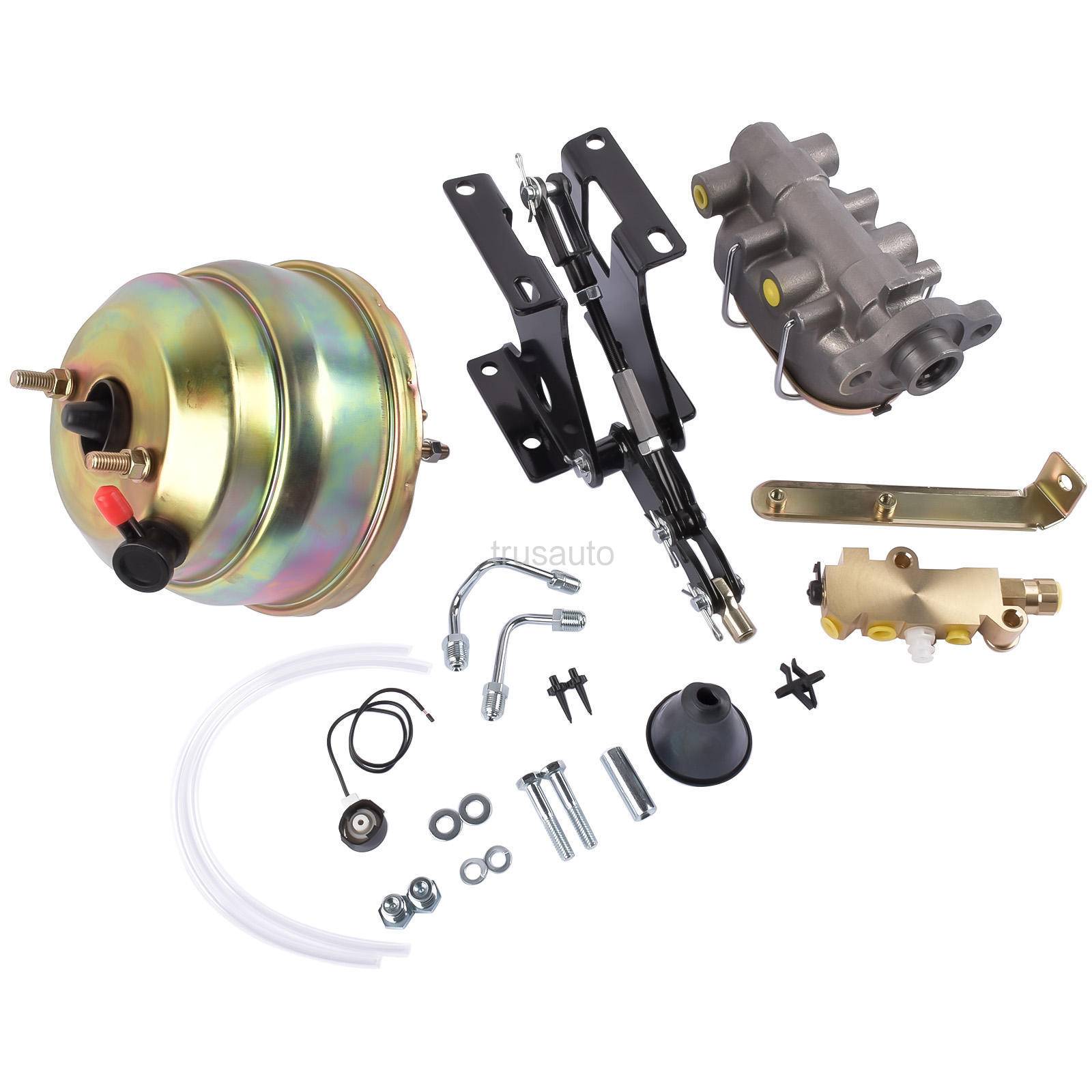

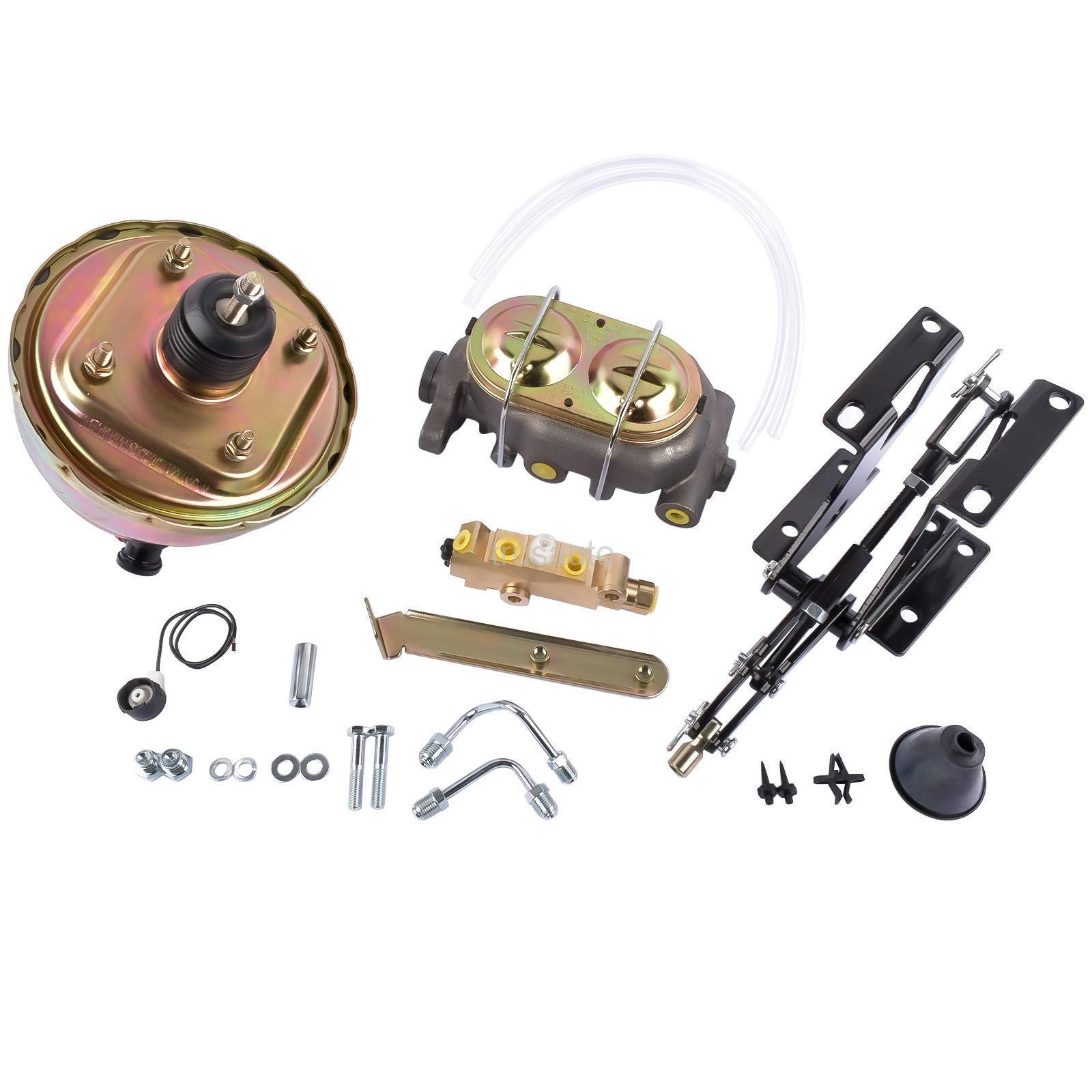

Package Includes:

8" Dual Zinc Booster Conversion Kit

Cast Iron Master Cylinder with 1" Bore

Left Mount Disc/Drum Proportioning Valve Kit

Zinc Mounting Brackets for Chevy Trucks 1967-1972
