Parameters
Part Type
replacement
Manufacturer Part Number
11-2269, MM23001C, Speed Controller
Interchange Part Number
11-2269, MM23001C, Speed Controller
Compatibility
| Make | Model | Year | Trim | Engine | Notes |
|---|---|---|---|---|---|
 No Data Yet | |||||
$ 57.60
Market Price: $65.50 0 People Puchased
Free Delivery

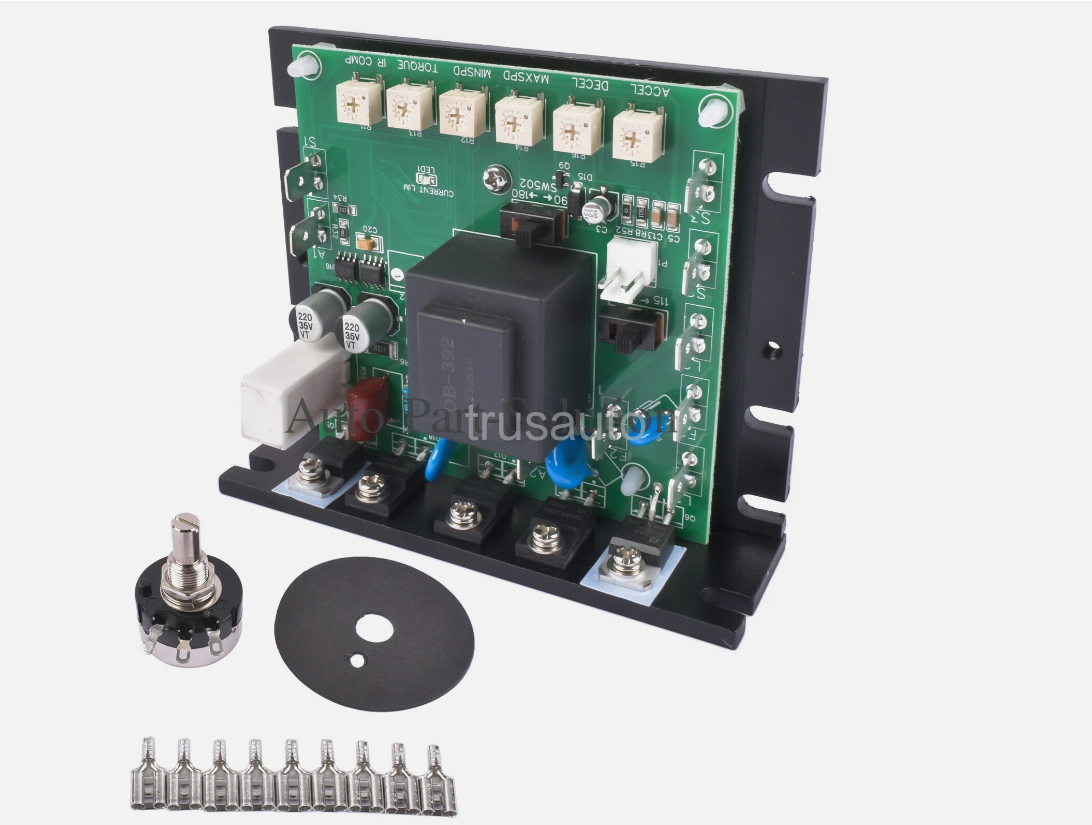

NEW MM23001C DC Motor Speed Controller 115 Or 230 Volt AC Input 50/60Hz 1PH
Quantity:
-
+
If you have a large demand for this product, please send an email to sale@trusauto.us, and we will contact you as soon as possible.
Expected shipping date : Shipped on the second business day.
Shipping cost : For shipping within the United States, most regions are eligible for free delivery, with only a few remote areas subject to pricing based on specific shipping rules.
Return : 60 days returns. Buyer pays for return shipping.
Protection : within 2 years.
$ 57.60
Market Price: $65.50 0 People Puchased
Free Delivery
NEW MM23001C DC Motor Speed Controller 115 Or 230 Volt AC Input 50/60Hz 1PH
Quantity:
-
+
If you have a large demand for this product, please send an email to sale@trusauto.us, and we will contact you as soon as possible.
OEM Part Number
11-2269, MM23001C, 112269
Specification
Input: 115 or 230 Volt AC, 50/60 Hz
Armature voltage (115 Volt AC IN): 0-90 VDC
Armature voltage (230 Volt AC IN): 0-180 VDC
5 Amps output, 10 Amps w/heatsink
1/8 HP to 1 HP @ 90 Volt DC
1/4 HP to 2 HP @ 180 Volt DC
1% regulation over 60:1 speed range
Size 4-5/16" x 3-19/32" x 1-19/32"
Feature:
Adjustable SCR speed controller for permanent magnet or shunt wound, brush type motors.
Ideal for motors in the range of 1/8 HP to 2 HP.
Compact design in industry standard MM footprint.
Optional heatsink (sold separately) can be added to boost output current capacity.

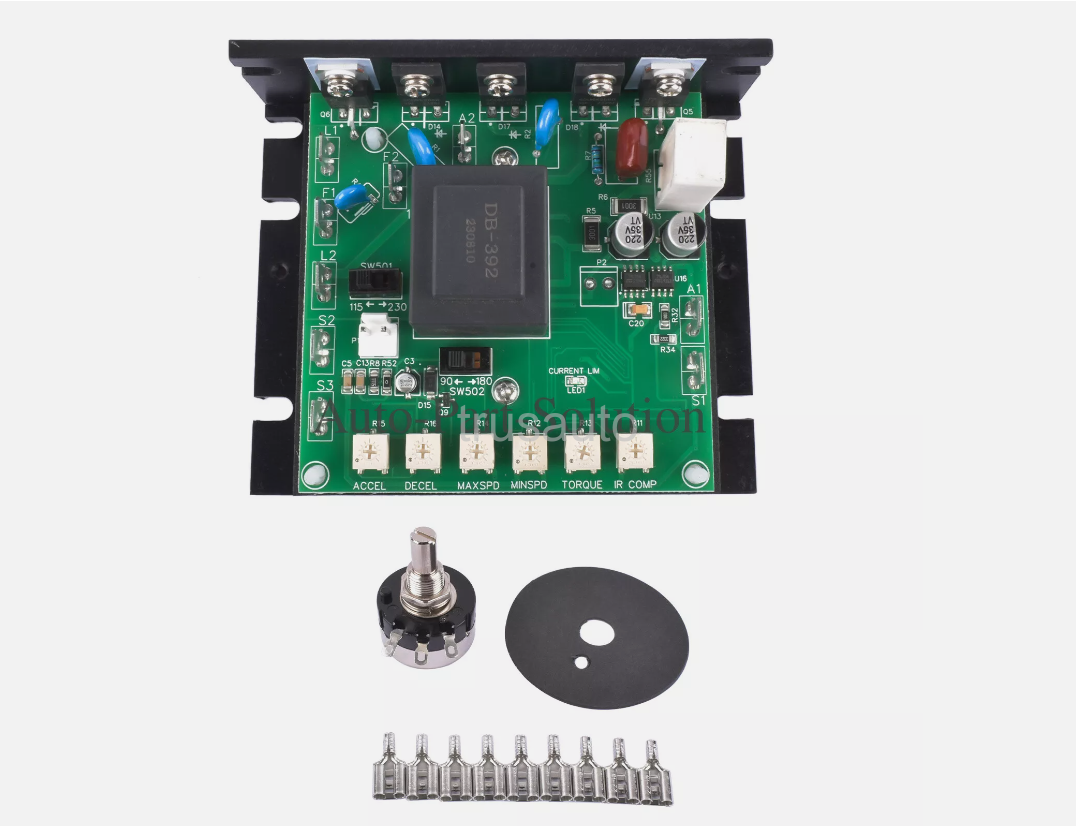

Integral potentiometers for setting minimum and maximum speed, acceleration and deceleration, torque and IR compensation.
Speed control potentiometer included.
Made of high quality material, more durable.
Adjustable SCR speed controller for permanent magnet or shunt wound, brush type motors.
Easy and durable to use.
