150HP Hydraulic Outboard Steering System Kit

This hydraulic steering kit allows you to install of hydraulic steering onto your 150 HP max. (or less) outboard-powered boats. Our steering kit consists of a low friction helm for smooth and comfortable steering. A balanced cylinder – featuring a compact design. For your convenience, two lengths of 24ft hoses and fill tubes are supplied for easy operation.
Note: Hydraulic oil is not included with this kit.

Features & Details

【150 HP Hydraulic Steering Kit】Our 150 HP boat hydraulic steering system includes a hydraulic steering cylinder, a low-friction hydraulic pump, two 24ft high-pressure hoses, and a complete set of accessories. It's the perfect replacement for aging or damaged hydraulic steering systems. Enjoy unmatched control and stability on your maritime journeys.
【Two-Way Locking Valve】Our advanced hydraulic pump features a built-in dual-directional valve, replaceable shaft seals, a relief valve, and an air pocket. This not only enhances reliability, security, and durability but also reduces long-term operational and maintenance costs while optimizing overall system efficiency and performance. Upgrade now for peace of mind on your maritime adventures.
【2x24FT Hydraulic Hoses】With a maximum working pressure of 200 bar and reinforced with thick nylon tubing, our hydraulic hoses are built to withstand heavy loads without risking rupture or leakage, ensuring swift and dependable response to every steering maneuver. Equipped with quick-fit 5/16" fittings, these hoses offer effortless installation flexibility across various vessel types. Dominate the waters with precision and ease.
【High-Performance Steering Cylinder】Our hydraulic steering cylinder boasts an impressive output force of 400kgf and is perfect for most splash wells, ensuring optimal engine operation without space constraints. Its sturdy structure and efficient seals allow it to withstand harsh environments with ease. Gear up for precise steering control and durability that stands the test of time.
【Engineered for Versatility】Our marine hydraulic steering system is compatible with outboard motors up to 150HP and seamlessly integrates with a range of top brands, including Yamaha, Suzuki, Honda, Mercury, Nissan, and Tohatsu. Our outboard hydraulic steering kit ensures smooth and precise steering control for an exceptional boating experience.

Specifications

Appliable Engine Horsepower: ≤150HP
Maximum Pressure: 6.9 Mpa (1000psi)
Output Force: 400 KGF
Capacity: 117 CC
Tube l.D: Ф1.2 in / 30 mm
Rod l.D: Ф0.6 in /16 mm
Stroke: 7.7 in / 195 mm

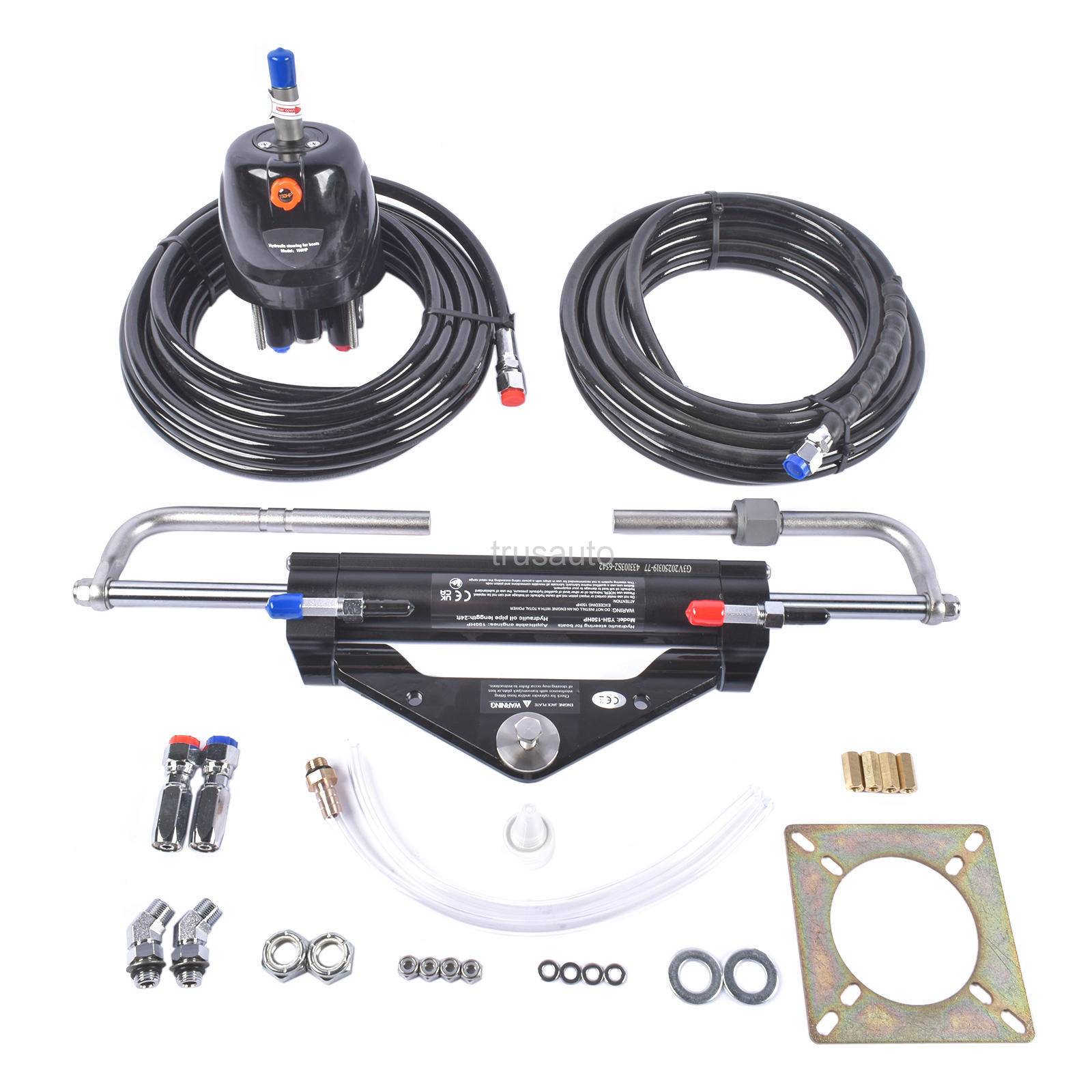

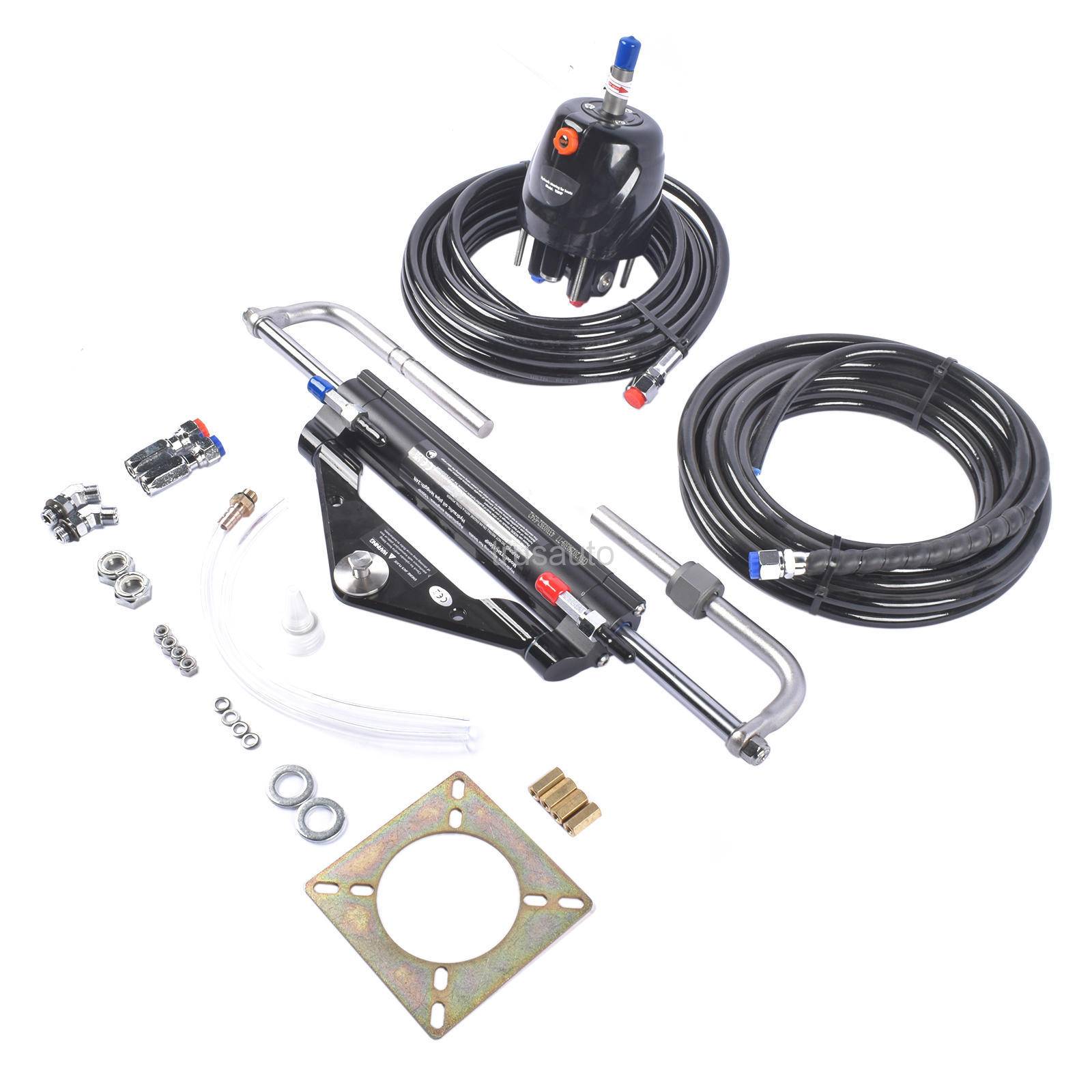

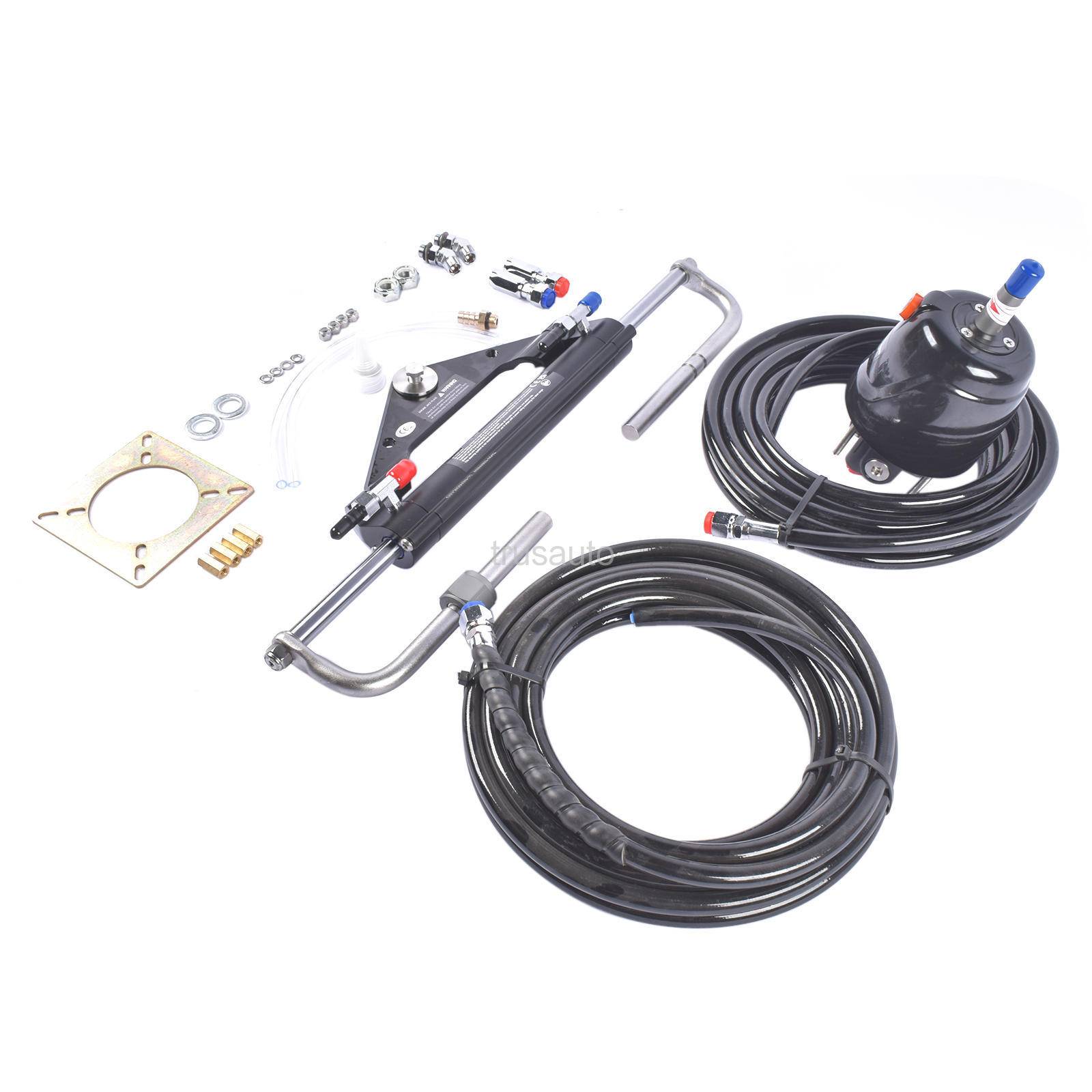

Package Content

1 x Hydraulic Steering Pump
2 x 24ft Hose
1 x Hydraulic Steering Cylinder
1 x Accessory Kit (with G1/4'' connector)
(As Pics Shown)
