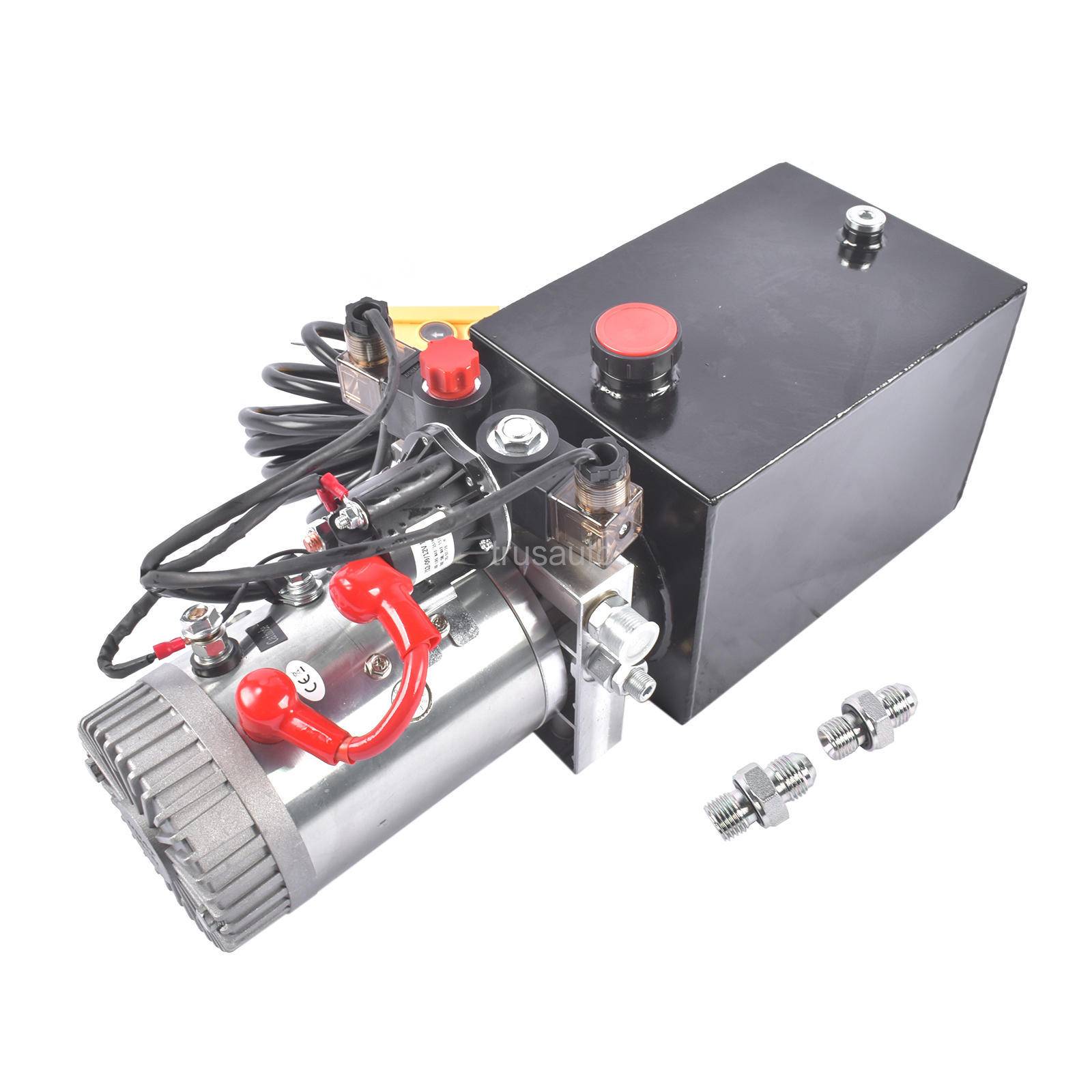

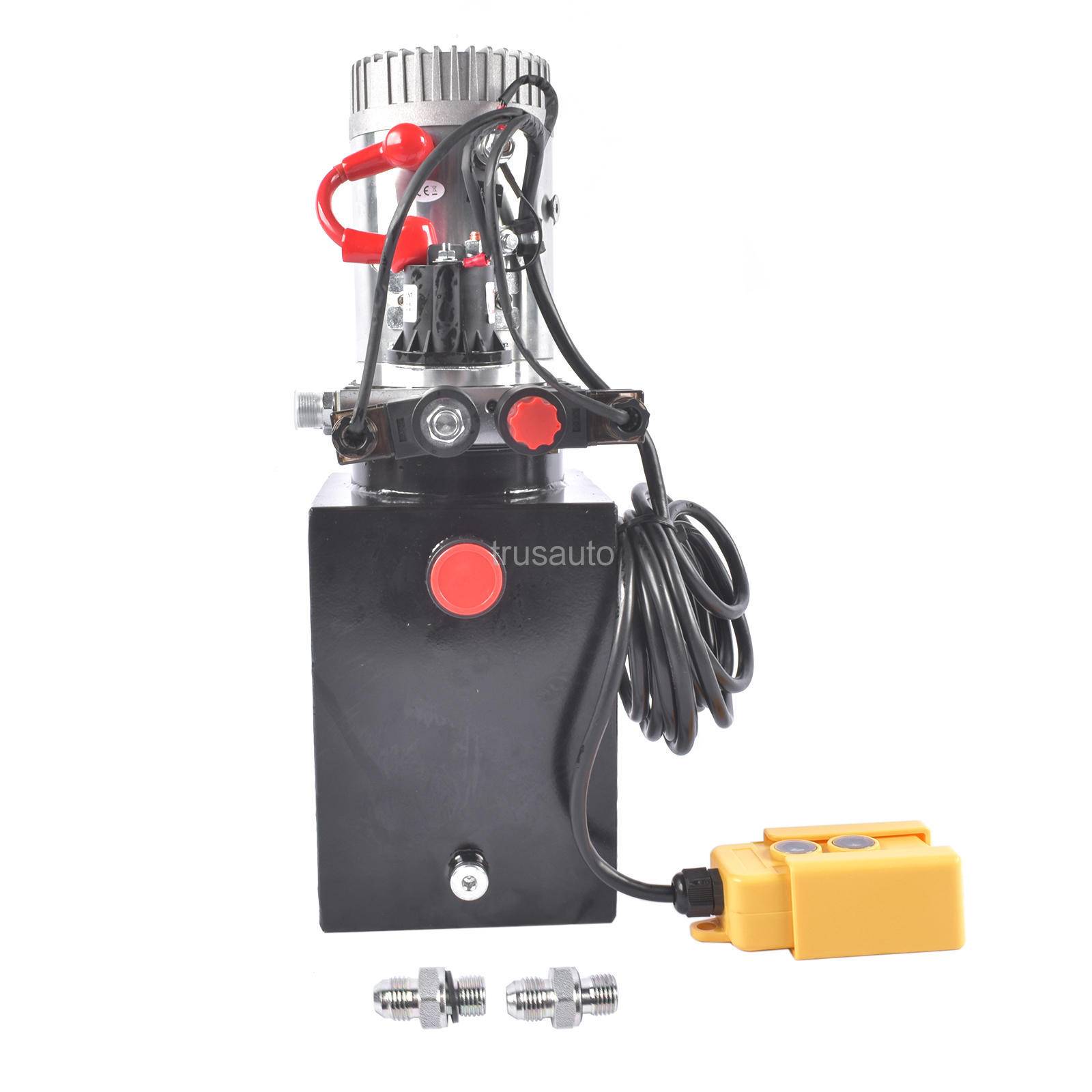

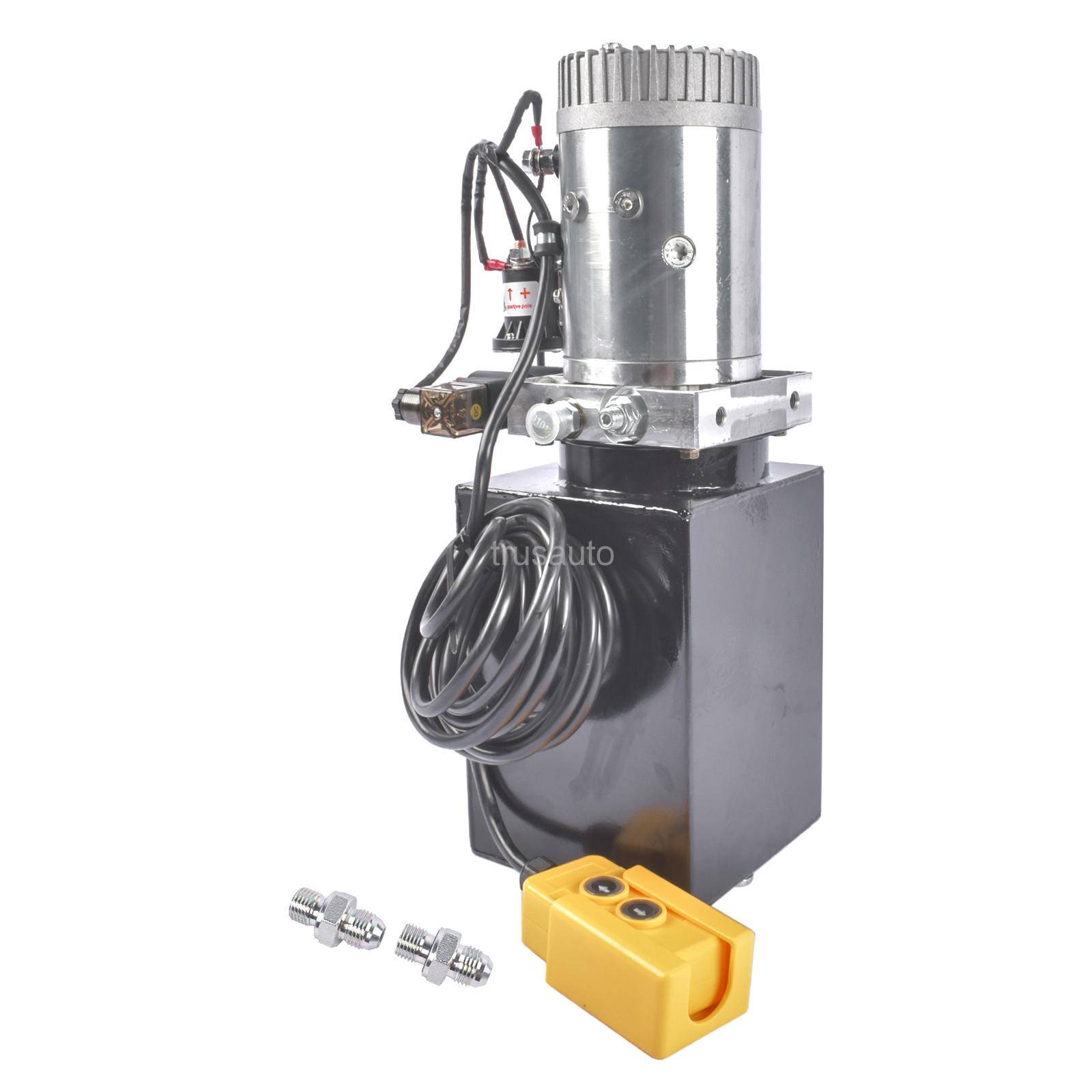

6 Quart Double Acting Hydraulic Pump

This hydraulic pump is a double-acting power unit for both lifting and lowering. It has a 6-quart sturdy metal reservoir and is designed with a 12V DC motor that can provide strong power for hydraulic systems like dump trailers, forklifts, lifting platforms, etc.

Please Note: All of our hydraulic pumps come with an M18*1.5 connector and an additional SAE6 (9/16") connector, which can be replaced according to your actual needs.

Key Features

【High-Powered Performance】Our hydraulic pump adopts a 12V, 1.6kW DC motor, delivering a high flow rate of up to 0.91GPM. With a 6-quart tank and 16-20Mpa oil pressure, this powerhouse releases a maximum pressure of 3200 psi; the dump trailer pump can effortlessly handle heavy vehicles and machinery, lifting them with ease. Experience the power!
【Precision Double-Action Lifting】Designed for accuracy, our hydraulic power unit employs a double-action power mechanism. Ensures hydraulic oil works alternately in both ports, evenly distributing force across your equipment. A built-in safety relief valve automatically releases pressure if the limit is exceeded, ensuring a safer operation with fewer failures.
【Hassle-free Setup】The 12V hydraulic pump arrives pre-assembled. Add hydraulic oil and connect the power supply and tubing, and you're ready to start. Hydraulic pump includes an SAE#6 converter, making it compatible with metric and American interfaces for your convenience.
【Built to Last】Our hydraulic pump is built tough. It boasts robust overall sealing, minimizing the risk of oil leaks. The rust-proof solid metal steel tank ensures durability, even in high-impact situations and daily use. It's engineered to withstand the rigors of installation on heavy equipment.
【Versatile Applications】This double-acting hydraulic pump isn't limited to one task. It's a versatile workhorse, suitable for various lifting and stamping applications. From dump trailers and container truck tailplates to hydraulic wood splitters, small presses, lifting platforms, semi-electric push trucks, bucket transporters, and more.

Specifications

Mode: Double-Acting Power-Up/ Power-Down
Tank Material: Metal
Tank Capacity: 6L / 6Quart / 1.5 Gal
Flow: 2.0 GPM
Max. Relief Valve Setting A Port: 3200 PSI
Max. Relief Valve Setting B Port: 1500 PSI
Rated Speed: 2850R/MIN
Voltage: DC12V
Power: 1.6KW (Rated), 3.0KW (Max)
Duty: 3 Min

Package Content

1× 6 Quart Double Acting Hydraulic Pump
1× Instruction Manual
Several Related Accessories (Including connectors)
