Description

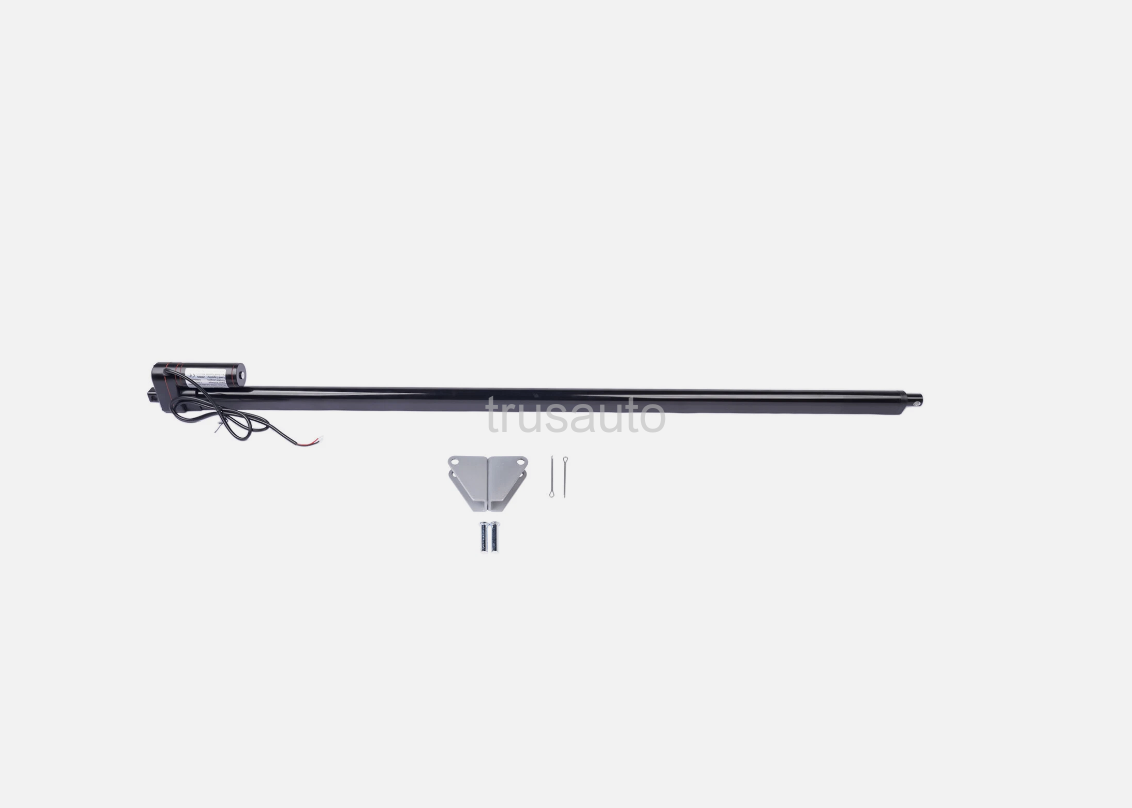

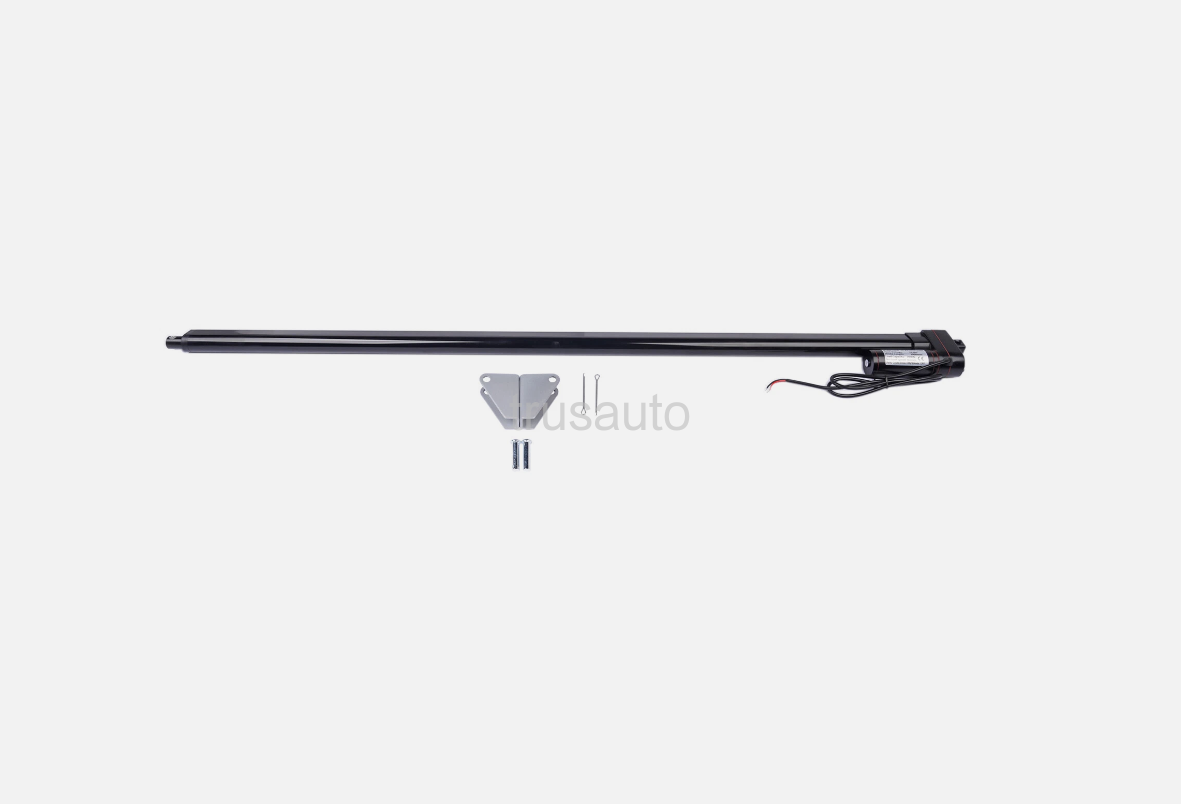

This linear actuator equip with high performance motor, it can provide a pushing force up to 440lbs and pulling force up to 330lbs. With self-locking function and built-in limit switch,it can be stopped at any position and automatically stop at the top and the bottom.

The linear actuator adopts plastic gears, more quiet and durable, not easy to oxidize, noise below 50dB. High quality aluminum alloy and four corner fixation base design make linear actuator more stable and sturdy.

Suitable for home and outdoor use. It can be widely used in industrial electric lifting system, electric bed, traction bed, electric sofa, electric lifting lever, electric booth, electric sunroof, solar tracker and so on.

Specifications

Voltage: DC 12V

Stroke Length: 40" (1000mm)

Fully Retracted Length: 46" (1150mm)

Fully Extended Length: 86" (2150mm)

No Load Speed: 0.31"/sec (8mm/s)

Maximum Load: 440lbs (2000N)

Maximum Current Draw: 5A

Features

High Performance

Quiet & Stable

Waterproof

Widely Application

How to connect?

Connect the two wires of the linear actuator to a 12V battery or 12V 5A adapter.

Black to the positive and red to negative will make it extend. To make it retract, reverse the terminal connections.

For optimal performance, you can use the actuator in conjunction with a controller, which makes it easier to control the extension and retraction of actuator.

How to protect actuator?

Please makes sure that the actual load does not exceed the rated load.

All the actuators have duty cycle, they are unable to work all the time without stop.

The actuator is not completely waterproof, please do not directly immerse in water.

Professional installation is highly recommended.

Please check the part number and illustrations carefully to ensure that it fits your model. If you are not sure, please contact us and we will respond as soon as possible.
