OE Number:

DBK6472LX, GM-224, DBK6472LX-GM-227

DBK6472LX-GM-224, DBK6472LX-GM-219

Will Fit Following Models:

For GM A Body 1964-1972 (Chevelle, Skylark, Cutlass 442, Pontiac GTO)

For GM F Body 1967-1969 (Camaro & Firebird)

For GM X Body 1968-1974 (Nova, Chevy II 1968 Only)

Note: Please compare your item carefully with photo and OE Number to avoid mistake!!!

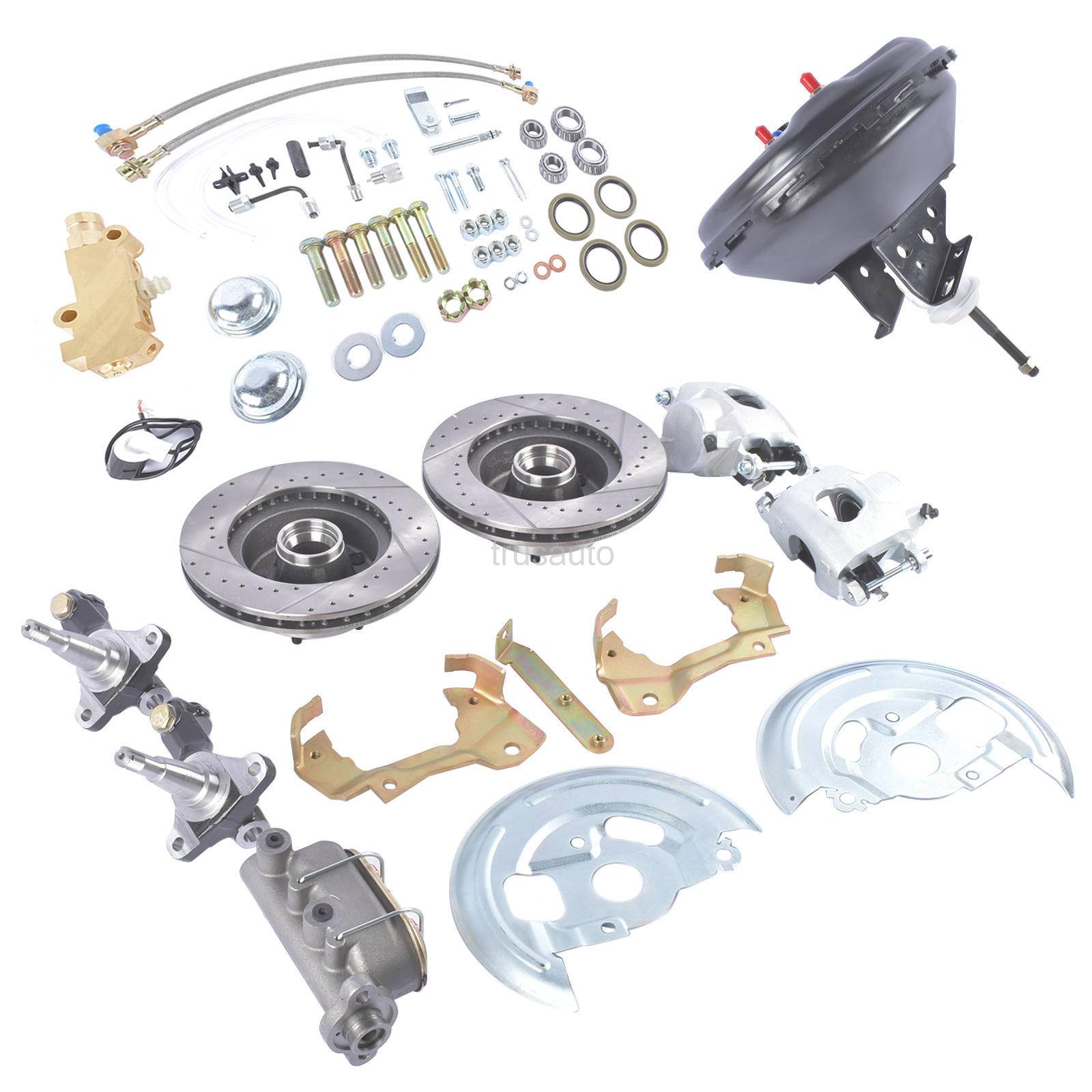

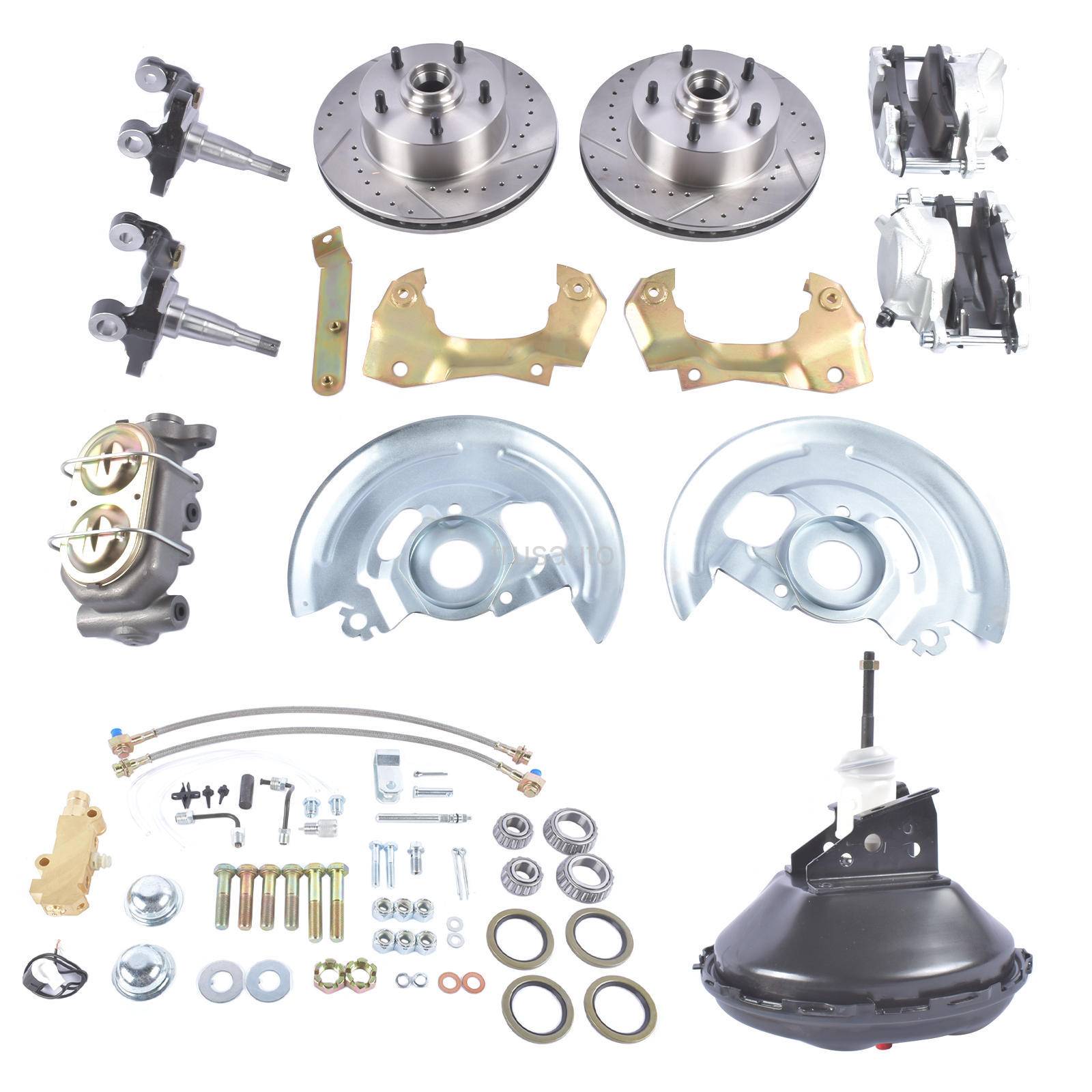

Package Includes:

11" Cross Drilled & Slotted Rotors (5x4.75 pattern) Stainless Steel Braided Brake Hoses, with Bolts & Copper Washers

Large GM Calipers Loaded with Pads (MKD-52 Brake Pads)

Brand New Stock Height Disc Brake Spindle Set

All New Bearings, Seals, Dust Caps, Spindle Nuts, Spindle Washers, Hardware

Caliper Brackets & Backing Plates/Dust Shields

New 11" Stamped Power Brake Booster comes standard

Brand New Master Cylinder, Corvette Style, 9/16-18 & 1/2-20 Ports on Each Side, 1" Bore.

Complete Disc Drum Proportioning Valve Kit

Note:

Your rims need to be 15" or larger or the kit will have clearance issues that you'd have to work around.

Disc brake conversions typically create an offsets of 1/4" to 3/8" & for some Buick & Olds applications you may need to modify your existing steering arms by drilling out the hole to accommodate the 5/8" inch bolt supplied in the kit.
