Parameters
Part Type
replacement
Manufacturer Part Number
B2840, B840
Interchange Part Number
B2840, B840
Compatibility
| Make | Model | Year | Trim | Engine | Notes |
|---|---|---|---|---|---|
 No Data Yet | |||||
$ 313.00
Market Price: $348.00 0 People Puchased
Free Delivery
B2840 B840 2.5 HP 230V Pool Pump Motor 56Y Frame Square Flange for Whisperflo
Quantity:
-
+
If you have a large demand for this product, please send an email to sale@trusauto.us, and we will contact you as soon as possible.
Expected shipping date : Shipped on the second business day.
Shipping cost : For shipping within the United States, most regions are eligible for free delivery, with only a few remote areas subject to pricing based on specific shipping rules.
Return : 60 days returns. Buyer pays for return shipping.
Protection : within 2 years.
$ 313.00
Market Price: $348.00 0 People Puchased
Free Delivery
B2840 B840 2.5 HP 230V Pool Pump Motor 56Y Frame Square Flange for Whisperflo
Quantity:
-
+
If you have a large demand for this product, please send an email to sale@trusauto.us, and we will contact you as soon as possible.
Description:

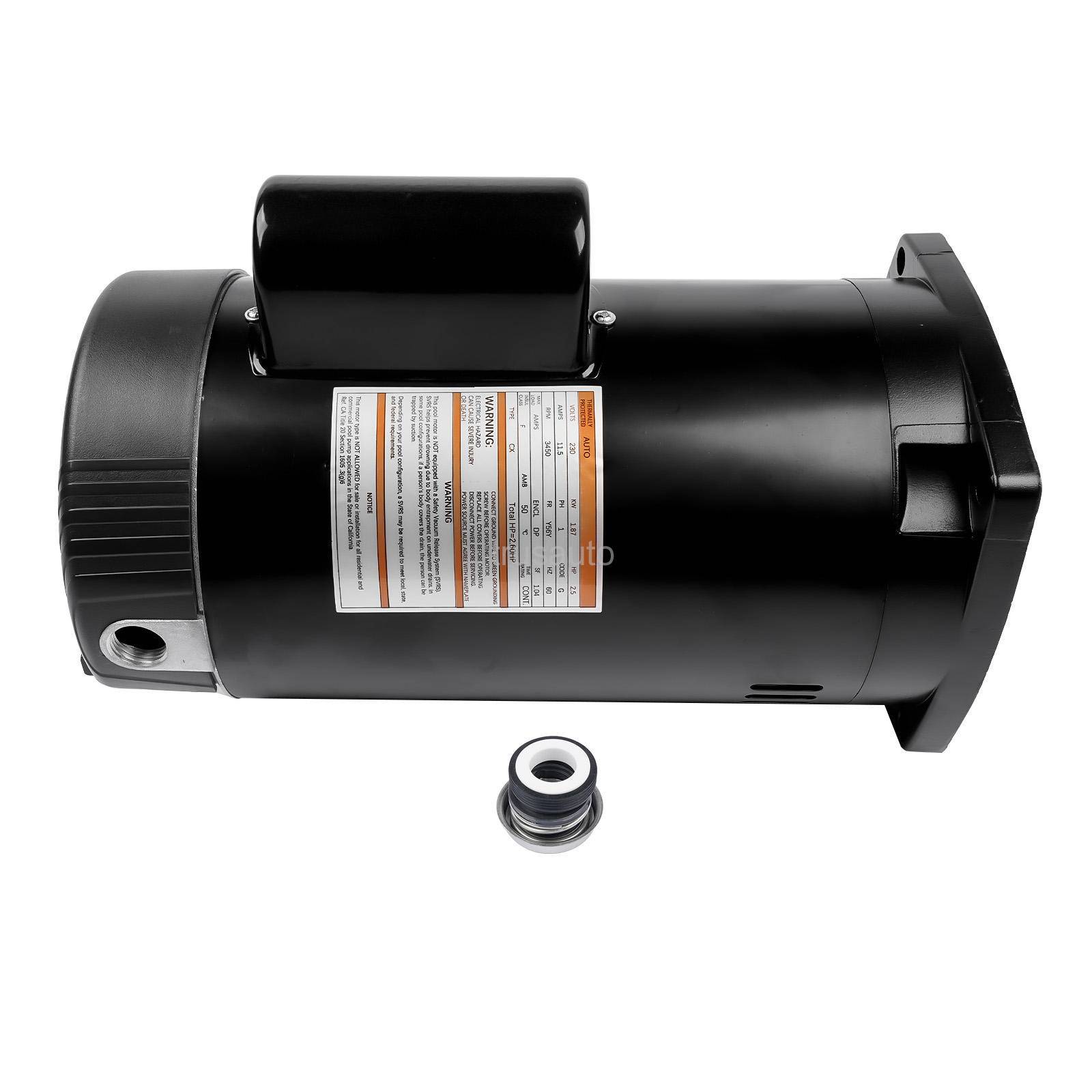

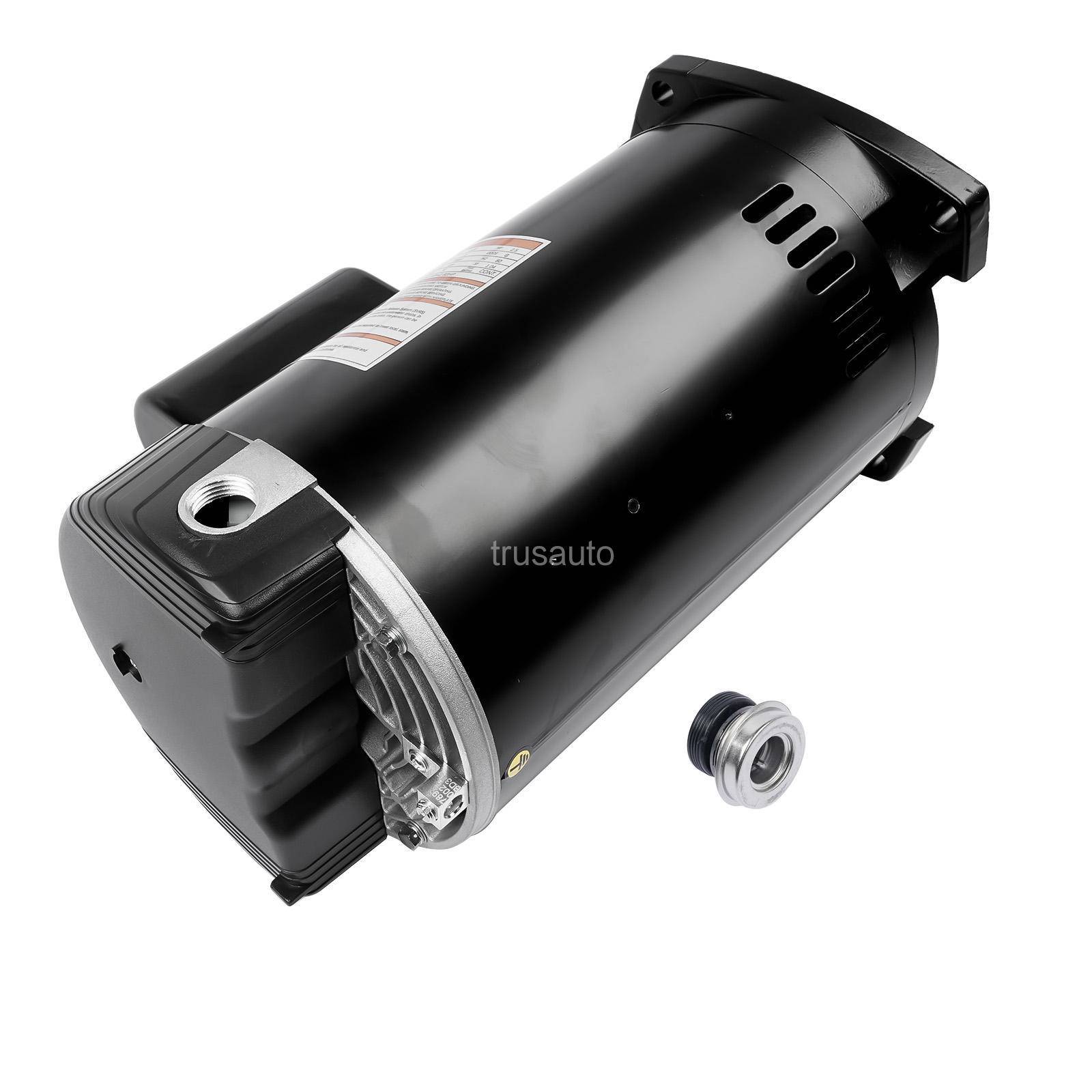

The B2840 Pool Pump Motor is a square flange style motor with a 56Y Frame and is an Up Rated 2.5 Horsepower motor. Square Flange motors have a square "face" where the motor mounts to the pump with 4 non-threaded bolt holes to attach the pump and a threaded shaft.
OE Number:
B2840, B840
Specifications:
Type: Pool Pump Motor
Voltage: 230V
Frequency: 60 HZ
Output KW: 1.87 KW
Output HP: 2.5 HP
Amps: 11.5 amp
Speed: 3450 RPM
Frame: 56Y
Enclosure: Drip Proof
Ambient Temperature: 50℃
Thermal Protection: Thermally Protected
Shaft Type: 5/8" Diameter threaded shaft
Speed: Single
Mounting: Square Flange
Automatic Overload Protection - Service Factor 1.04
