Parameters
Part Type
replacement
Manufacturer Part Number
EBY-412663S2
Interchange Part Number
EBY-412663S2
Compatibility
| Make | Model | Year | Trim | Engine | Notes |
|---|---|---|---|---|---|
 No Data Yet | |||||
$ 61.50
Market Price: $68.00 0 People Puchased
Free Delivery

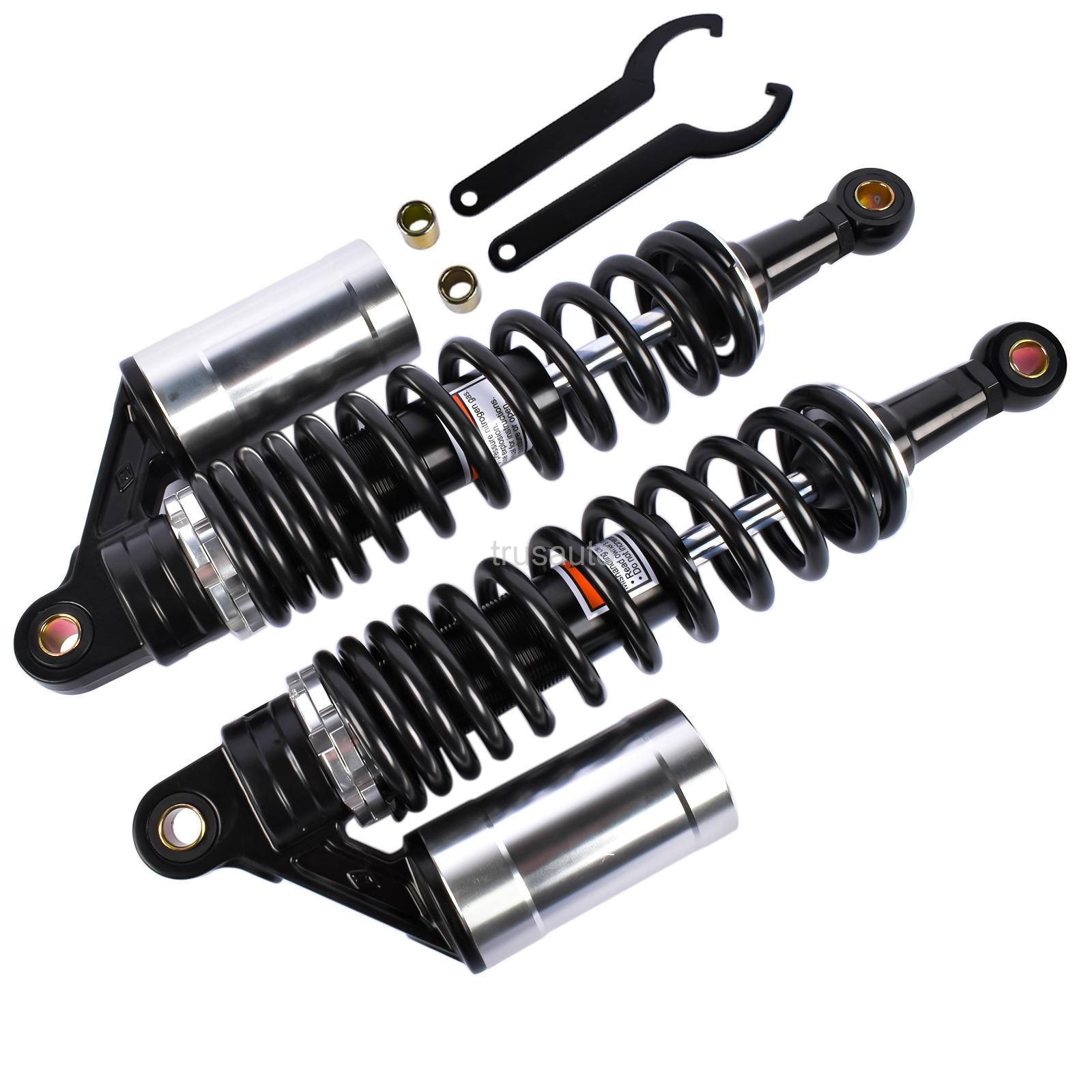

340mm Rear Motor Shock Absorbers Air Suspensions For Harley Sportster 883 Yamaha
Quantity:
-
+
If you have a large demand for this product, please send an email to sale@trusauto.us, and we will contact you as soon as possible.
Expected shipping date : Shipped on the second business day.
Shipping cost : For shipping within the United States, most regions are eligible for free delivery, with only a few remote areas subject to pricing based on specific shipping rules.
Return : 60 days returns. Buyer pays for return shipping.
Protection : within 2 years.
$ 61.50
Market Price: $68.00 0 People Puchased
Free Delivery

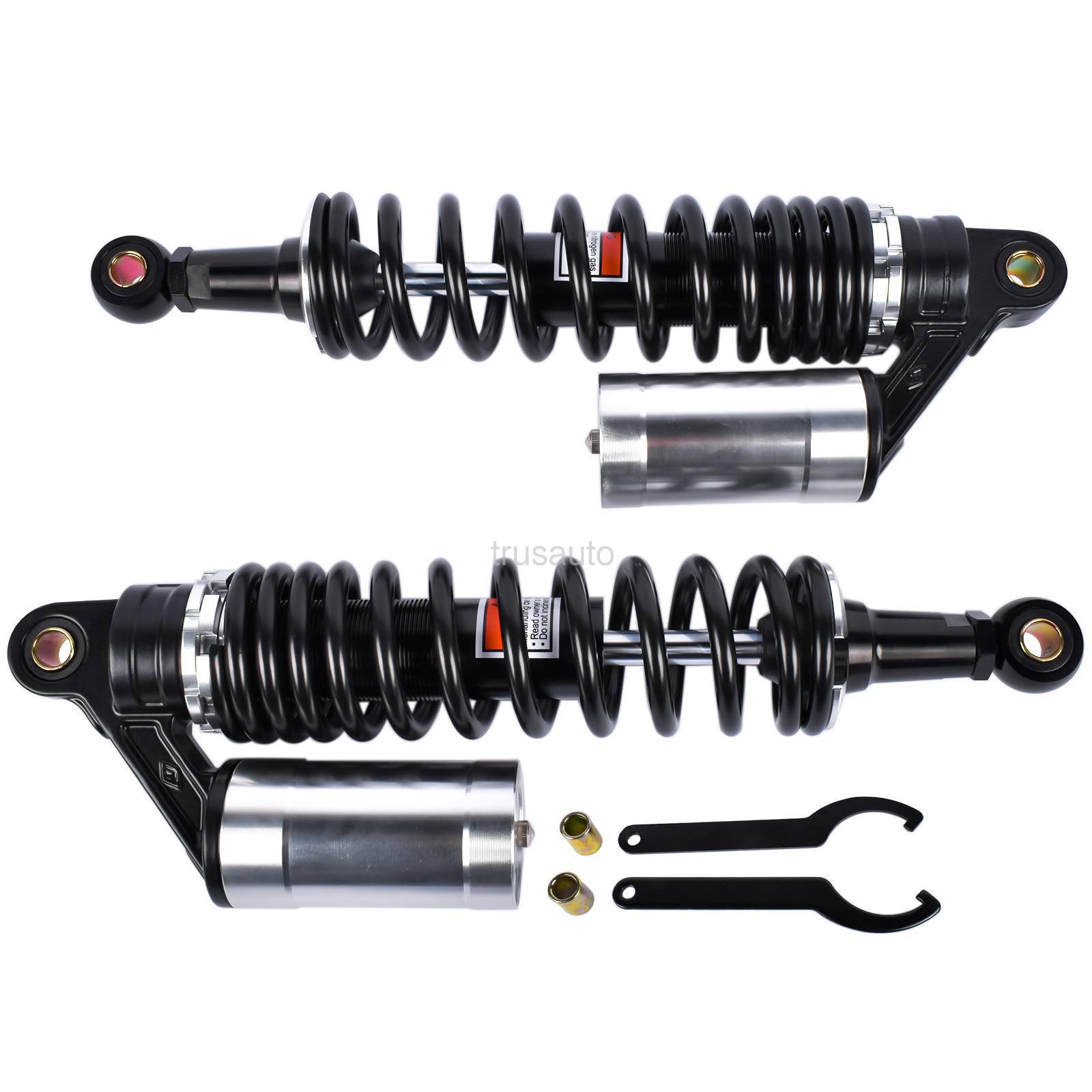

340mm Rear Motor Shock Absorbers Air Suspensions For Harley Sportster 883 Yamaha
Quantity:
-
+
If you have a large demand for this product, please send an email to sale@trusauto.us, and we will contact you as soon as possible.
Specification:
1. Material: Solid Steel + Aluminium Alloy
2. Installation Type: Eye to Eye
Color: Black & Silver
Dimension:
Total Length: 370mm (14 3/4")
Length of Eye to Eye Core: 340mm(13 3/8")
Eye Diameter(with bushing): 12mm
Eye Diameter(with bushing removed): 16mm
Eye Thickness: 21mm
Eye Maximum Tensile Strength: 2,000 Kgf
Spring Thickness: 8mm
Spring Width: 60mm
Working Stroke: 68mm
Spring Stiffness: 110 kg
Maximum load: 300 kg (≈660 lbs)
Air Reservoir: Adjustable
Factory Air Pressure: 0.4 Mpa
Maximum Air Pressure: 0.5 Mpa
Fit For the Following Models
Fitment
For bikes with shocks of 340mm eye to eye distance.
Fit on most 150cc~750cc Sport bikes and Dirt Bikes, Go-kart and Moped Quad
*Fitting manual is not included. Installed by qualified mechanic is recommended.
Package Includes:
1 Pair Shock Absorbers
