Descriptions

• 【Complete Kit】: 2 Intelligent Digital Pressure Gauges: 16MPa/80MPa | 10 Type Test Couplings: 1×G1/8", 1×G1/4", 1×G3/8", 1×M10*1, 1×M10*1.25, 1×M14*1.5, 1×UNF 7/16-20, 1×R1/4, 1×UNF 9/16-18 and 1×NPT 1/4-18 | 2 Type Quick Connectors | 2 Test Hoses and a Carrying Case
• 【Strong Compatibility】: This excavator pressure test kit is equipped with 12 different couplings to meet different installation requirements, widely used in construction, machinery, marine, chemical, mining, petroleum and other industries
• 【Accurate Pressure Measurement】: Using high-quality pressure sensors and electronic components, high precision, high stability, the accuracy of the two pressure gauges are ± 0.35%, the housing of our two gauges (16MPa/80MPa) is stainless steel, so they are sturdy, durable, impact resistant
• 【High Quality Material 】: Premium hard stainless steel shell, silicone sleeve, anti-corrosion, impact resistance, even if the impact can be maintained in the service life of the accuracy, durable, easy to use.Stainless steel shell, silicone sleeve, anti-corrosion, anti-shock. Nylon liner layer hose with super industrial fiber reinforcement and polyurethane cover
• 【Easy to Use】: Flexible use, simple operation, easy commissioning, safe and reliable. Can be used to measure stainless steel gas, liquid, oil and non-corrosive media

Function

This Hydraulic Pressure Kit is a way of testing the pressure of hydraulic system of an excavator to ensure its safety and reliability and to detect faults.

Great Compatibility
For Caterpillar, Hitachi, Komatsu, Sumitomo, Daewoo, Hyundai, Kato, Kobelco, Sany, Kawasaki, etc.

10 Couplings and 2 Quick Connectors
Quick Connector: for CAT
Quick Connector: for Komatsu
G3/8: for Daewoo, Hyundai, Kato
14*1.5: for Hitachi
R1/4: for Hitachi
NPT1/4: for Hitachi
G1/4: for Komastu, Kobelco, Sumitomo, Daewoo, Sany
UNF7/16-20: for Caterpillar
M10*1.25: for Komastu -7/8
M10*1: for Komastu - 5/6
G1/8: for Kawasaki Pump
UNF9/16-18: for Caterpillar

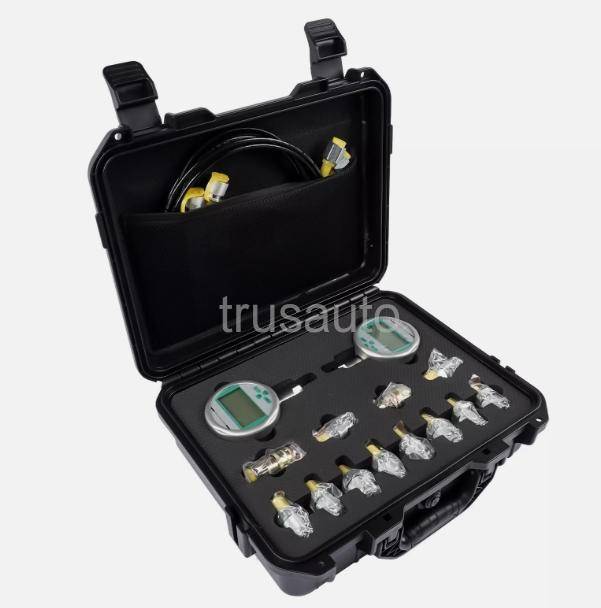

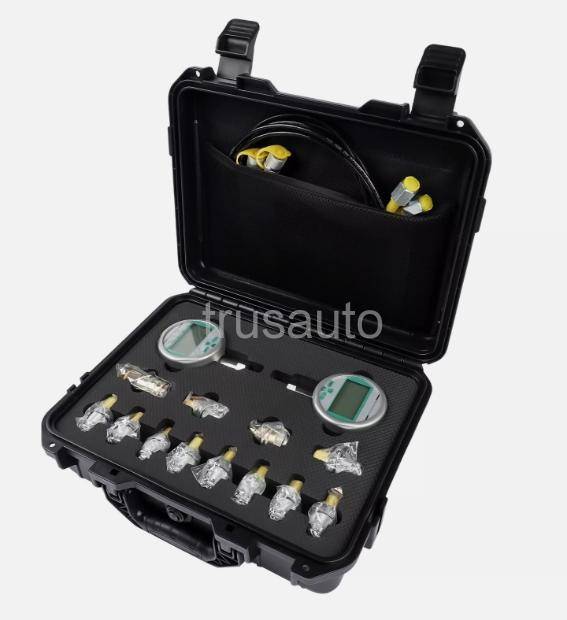

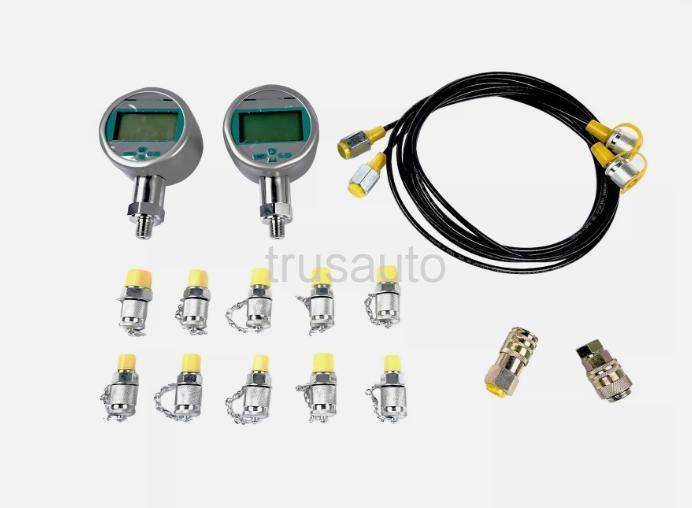

Package Includes

10x Couplings
2x Quick Connectors
2x Digital Pressure Gauges (16MPa/80MPa)
2x Test Hoses
1x Sturdy PP Suitcase
(As Pics Shown)
