Parameters
Part Type
replacement
Manufacturer Part Number
19455-SR-KW-KW-GR
Interchange Part Number
19455-SR-KW-KW-GR
Compatibility
| Make | Model | Year | Trim | Engine | Notes |
|---|---|---|---|---|---|
 No Data Yet | |||||
$ 134.50
Market Price: $150.00 0 People Puchased
Free Delivery
40 HP Right Angle Bevel Gearbox w/ Crosshole & Keyed Shaft CW to CW 1:1 Ratio
Quantity:
-
+
If you have a large demand for this product, please send an email to sale@trusauto.us, and we will contact you as soon as possible.
Expected shipping date : Shipped on the second business day.
Shipping cost : For shipping within the United States, most regions are eligible for free delivery, with only a few remote areas subject to pricing based on specific shipping rules.
Return : 60 days returns. Buyer pays for return shipping.
Protection : within 2 years.
$ 134.50
Market Price: $150.00 0 People Puchased
Free Delivery
40 HP Right Angle Bevel Gearbox w/ Crosshole & Keyed Shaft CW to CW 1:1 Ratio
Quantity:
-
+
If you have a large demand for this product, please send an email to sale@trusauto.us, and we will contact you as soon as possible.
Description:

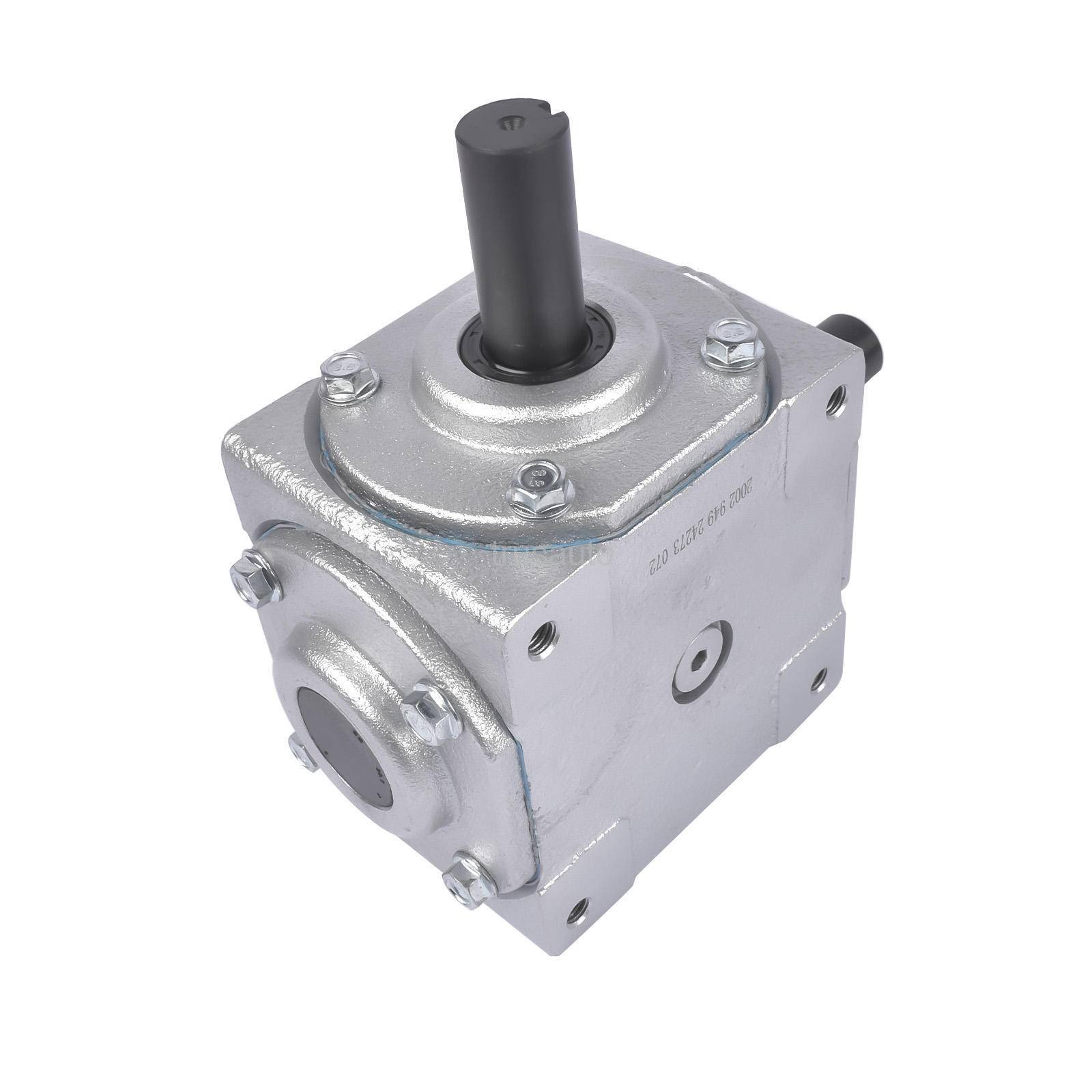

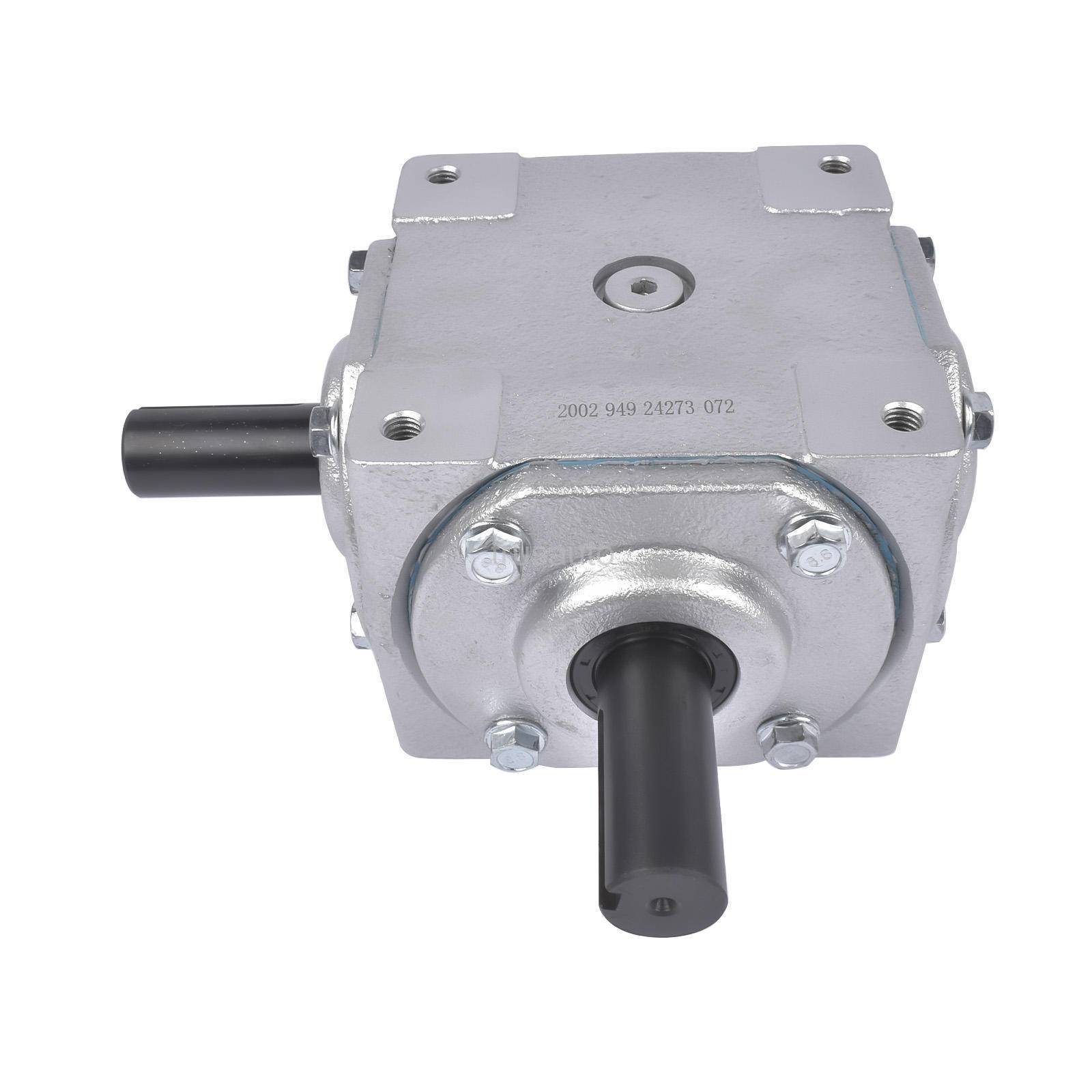

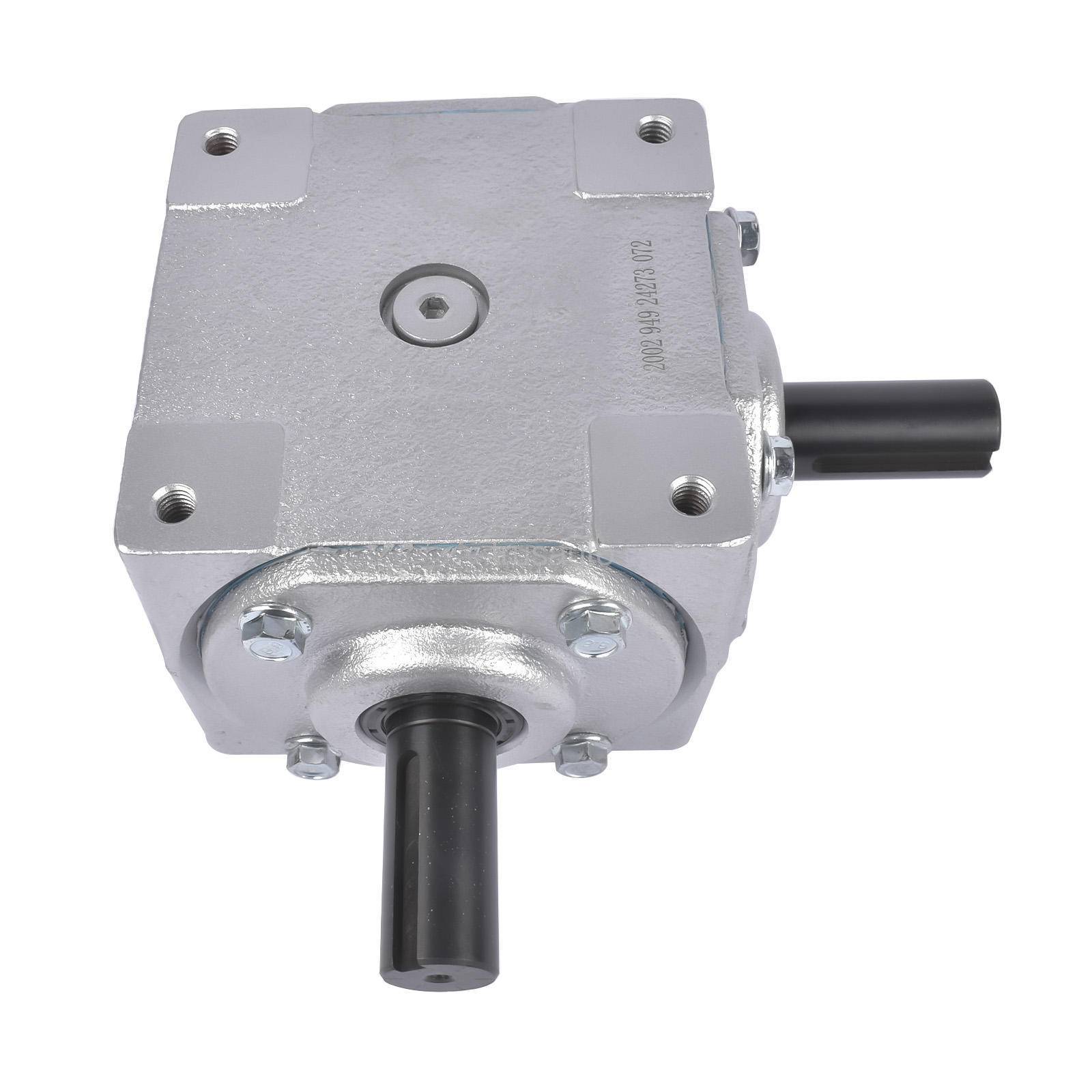

Right angle gearbox with 1" keyed shafts. Cast iron housing is sealed to protect the gears and taper roller bearings. The body is drilled and tapped 4-1/4" square with 3/8" holes. Ships without oil (1/3 qt of 80-90 W)
Gearbox is drilled and tapped with the same bolt pattern on both sides of the gearbox. This allows you to mount and arrange the shafts the way you need them. SHAFTS TURN IN THE SAME DIRECTIONS (CW/CW).
Specifications:
Dimensions: 5-7/8" X 6-1/4" X 4-1/8"
Bolt Pattern: 4-1/4" Square with 3/8" Tapped Holes
Input Shaft: 1" X 2-1/4" with 1/4" Keyway
Output Shaft: 1" X 2-1/4" with 1/4" Keyway
Input Power: 40 HP
Input Speed: 1,800 Max RPM
Shaft Rotation: CW to CW with 1:1 Ratio
Package Includes:
1x Bevel Gearbox (As Pics Shown)
