Parameters
Part Type
replacement
Manufacturer Part Number
1750 LBS
Interchange Part Number
1750 LBS
Compatibility
| Make | Model | Year | Trim | Engine | Notes |
|---|---|---|---|---|---|
 No Data Yet | |||||
$ 65.00
Market Price: $72.00 0 People Puchased
Free Delivery
1750 lb Capacity Per Spring for 3500lbs Axle U-bolt Kit &Trailer Axle Hanger Kit
Quantity:
-
+
If you have a large demand for this product, please send an email to sale@trusauto.us, and we will contact you as soon as possible.
Expected shipping date : Shipped on the second business day.
Shipping cost : For shipping within the United States, most regions are eligible for free delivery, with only a few remote areas subject to pricing based on specific shipping rules.
Return : 60 days returns. Buyer pays for return shipping.
Protection : within 2 years.
$ 65.00
Market Price: $72.00 0 People Puchased
Free Delivery
1750 lb Capacity Per Spring for 3500lbs Axle U-bolt Kit &Trailer Axle Hanger Kit
Quantity:
-
+
If you have a large demand for this product, please send an email to sale@trusauto.us, and we will contact you as soon as possible.
Product Description
FEATURES:
--1750 lb Capacity Per Spring for 3500 lbs Trailers
--Eye to Eye Length: 25-1/4 inch
--Width of Leaf: 1-3/4 inch
--Number of leaves: 4
--9/16 inch Bushing Dia, 2 nylon Bushings Installed for Each Spring
--Leaf Thickness: 5/16 inch
----------------------------------------------------------------------------------------
Include 3500lbs axle U-bolt kit for 2-3/8" dia round trailer axles：
4* 5-1/2" long U bolts, U bolts dia. 1/2"
2* tie plates for 1-3/4" leaf springs;
8* 1/2"-20 hex nuts
----------------------------------------------------------------------------------------
Include Complete tandem trailer axle hanger kit for 1-3/4" leaf springs：
2* 3" tall hangers,
2* 2.1" tall hangers,
4* shackle straps (eye to eye 3.09"),
6* 9/16"-18 x 3" long shackle bolts and locknuts
----------------------------------------------------------------------------------------

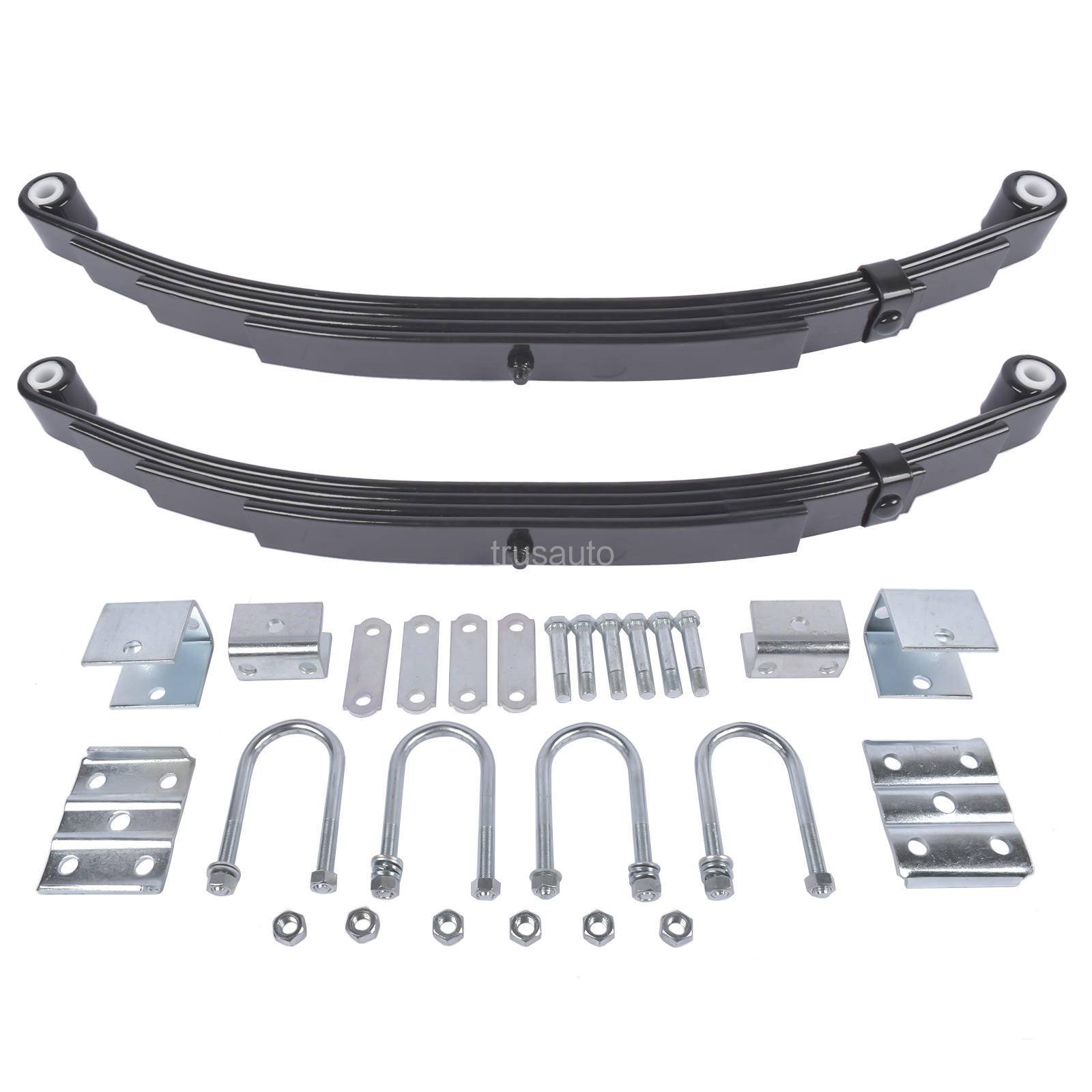

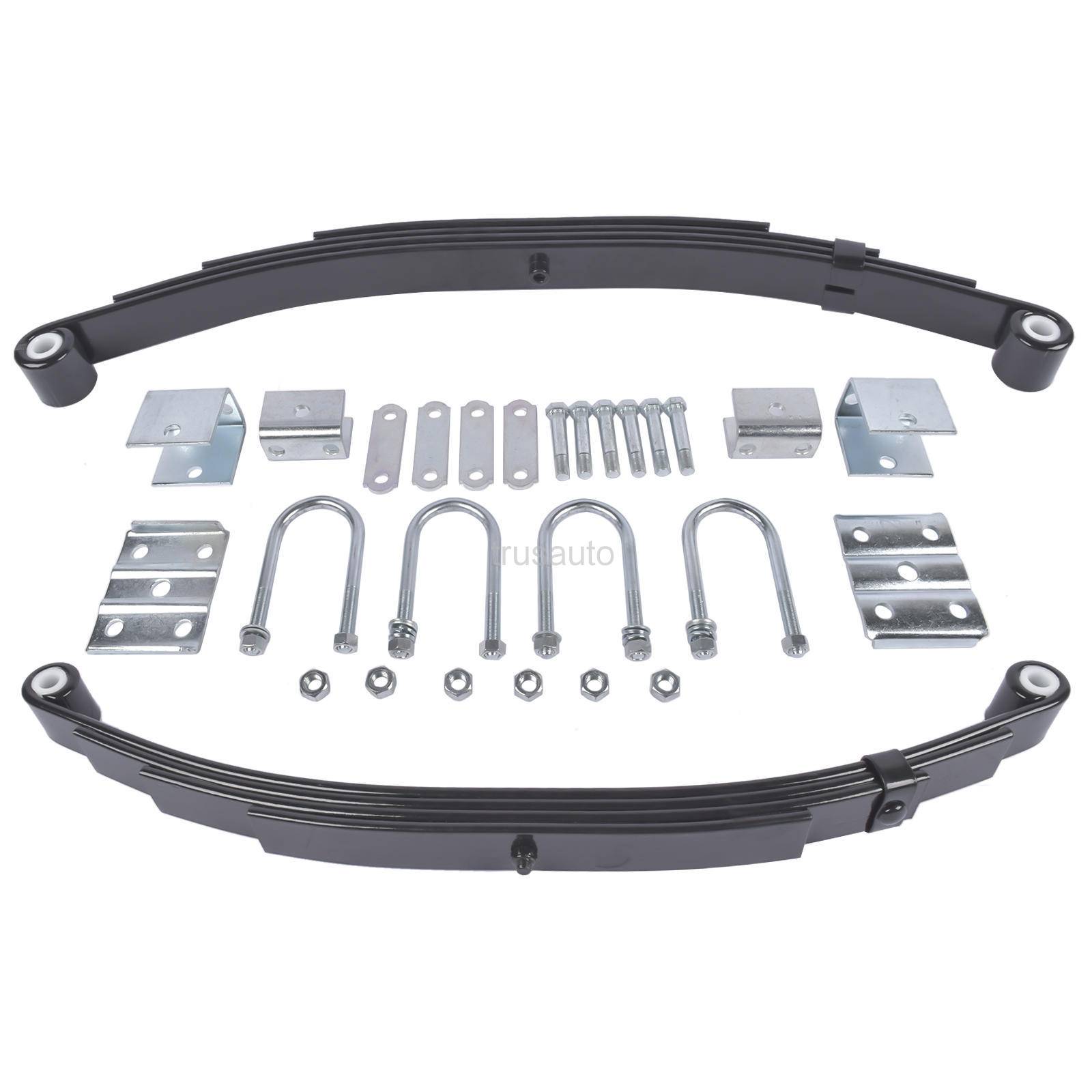

Includes 2 @ 1,750 lb - 4 - leaf springs,
3,500 lb each axle, 1 3/4" wide and 25 1/4" eye to eye center,
Eye to eye springs include nylon bushing already installed.
