Parameters
Part Type
replacement
Manufacturer Part Number
OMS315-151F0505, 151F0505, OMS250151F0505, BMSY-250-E4BD, BMSY250E4BD
Interchange Part Number
OMS250-151F0505, 151F0505
Compatibility
| Make | Model | Year | Trim | Engine | Notes |
|---|---|---|---|---|---|
 No Data Yet | |||||
$ 221.00
Market Price: $245.00 0 People Puchased
Free Delivery

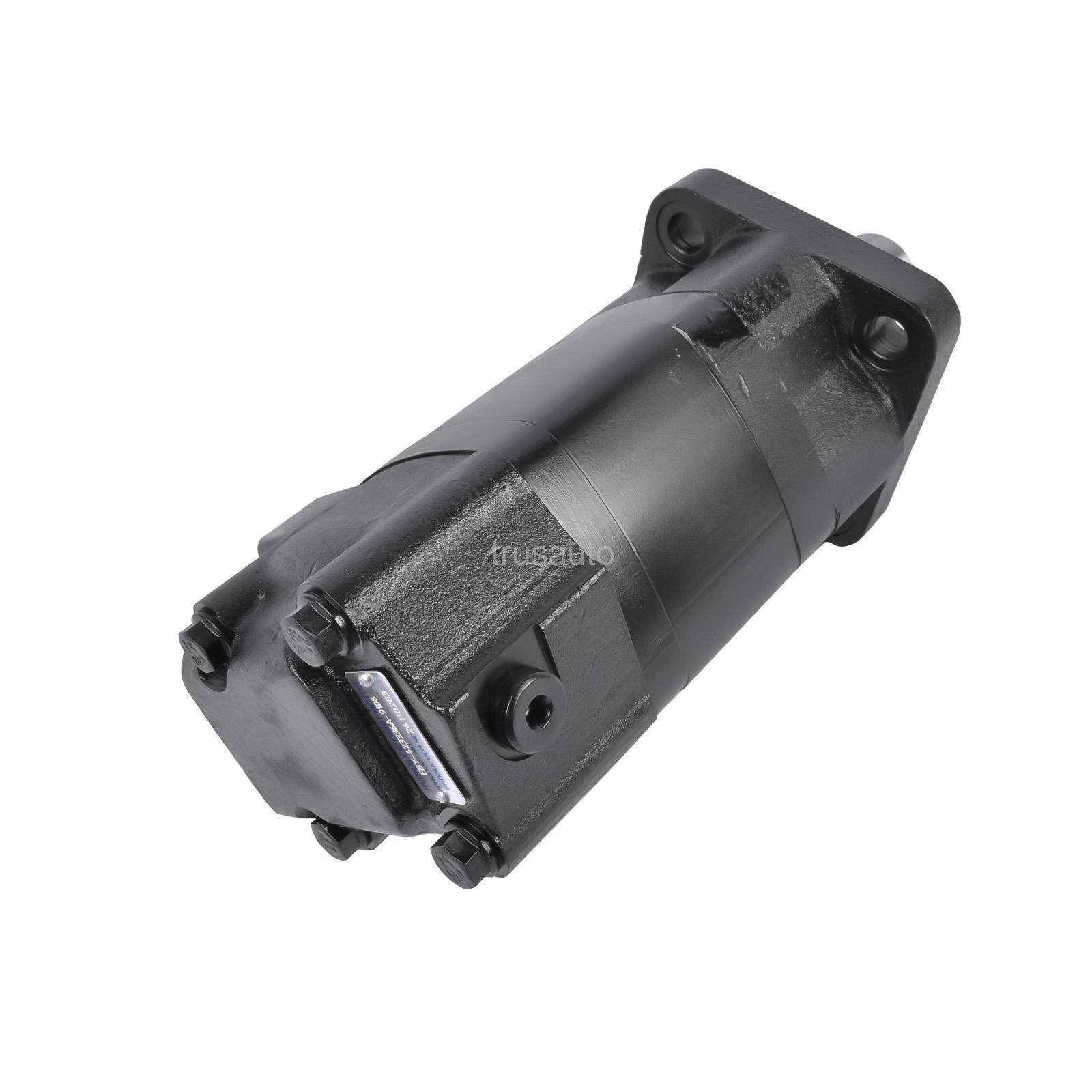

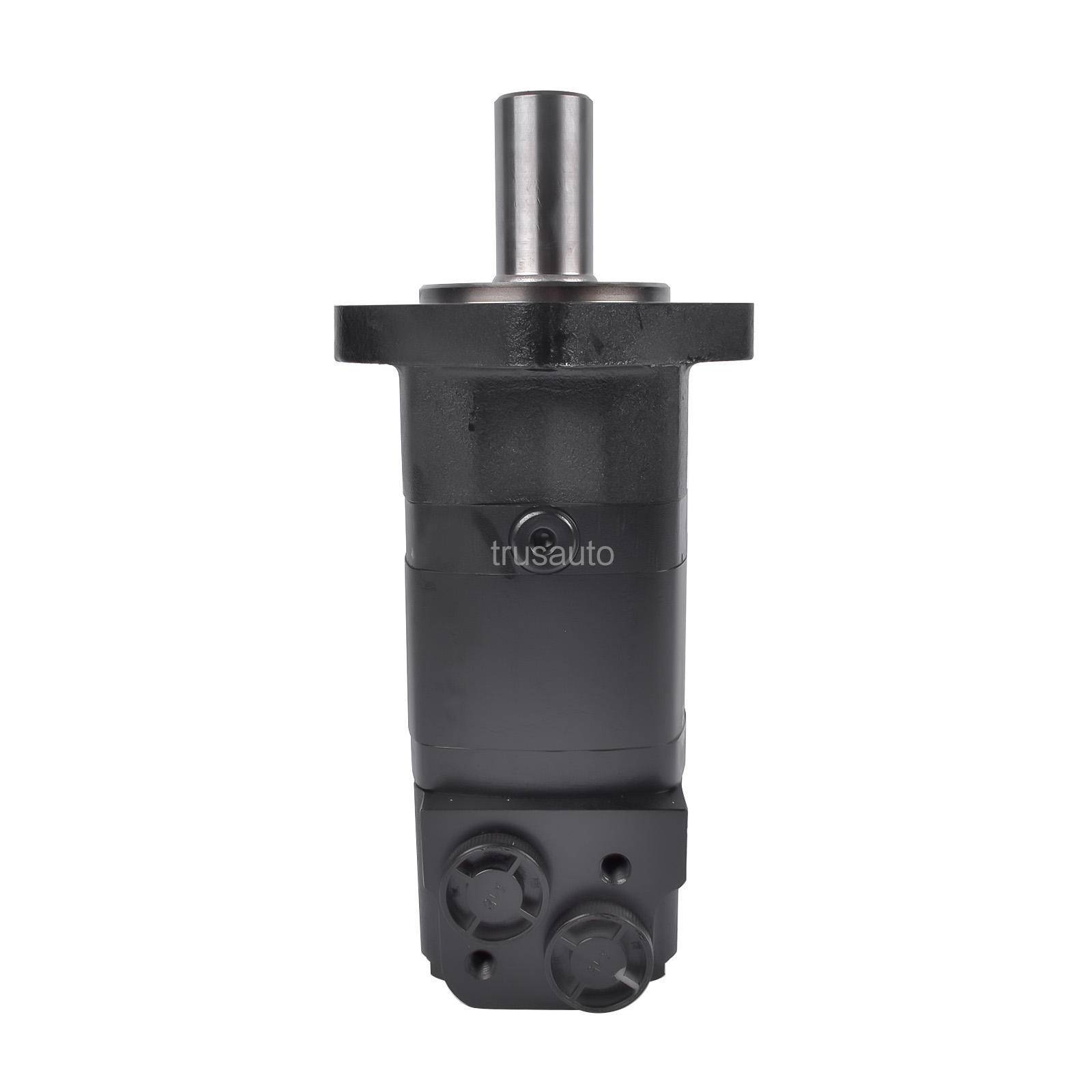

32mm Hydraulic Orbital Motor fits for Danfoss 151F0505 OMS250-151F0505 G1/2''
Quantity:
-
+
If you have a large demand for this product, please send an email to sale@trusauto.us, and we will contact you as soon as possible.
Expected shipping date : Shipped on the second business day.
Shipping cost : For shipping within the United States, most regions are eligible for free delivery, with only a few remote areas subject to pricing based on specific shipping rules.
Return : 60 days returns. Buyer pays for return shipping.
Protection : within 2 years.
$ 221.00
Market Price: $245.00 0 People Puchased
Free Delivery
32mm Hydraulic Orbital Motor fits for Danfoss 151F0505 OMS250-151F0505 G1/2''
Quantity:
-
+
If you have a large demand for this product, please send an email to sale@trusauto.us, and we will contact you as soon as possible.
OEM Part Number
OMS315-151F0505
151F0505
OMS250151F0505
BMSY-250-E4BD
BMSY250E4BD
Specification:
Motor size: 250
Geometric displacement: 250.0cm³/[15.26in]
Max speed cont: 300rpm
Max speed int: 360rpm
Max torque cont: 720Nm/[6370lbf in]
Max torque int: 870Nm/[7700lbf in]
Max output power cont: 14.5kW/[19.4hp]
Max output power int: 18.0kW/[24.1hp]
Max pressure drop cont: 200bar/[2900psi]
Max pressure drop int: 250bar/[3630psi]
Max pressure drop peak: 270bar[3920psi]
Max oil flow cont: 75L/min
Max oil flow int: 90L/min
Max starting pressure with unloaded shaft: 8bar/[115psi]
Min starting torque at max press drop cont: 560Nm/[4960lbf in]
Min starting torque at max press drop int: 700Nm/[6200lbf in]
Max inlet pressure cont: 230bar/[3340psi]
Max inlet pressure int: 295bar/[4280psi]
Max inlet pressure peak: 300bar/[4350psi]
Max return pressure with drain line cont: 140bar/[2030psi]
Max return pressure with drain line int: 175bar/[2540psi]
Max return pressure with drain line peak: 210bar/[3050psi]
