OEM Part Number

OMR160-151-0724

BMR-160-2EDN1

151-0724

OMR1601510724

BMR1602EDN1

1510724

Parameters:

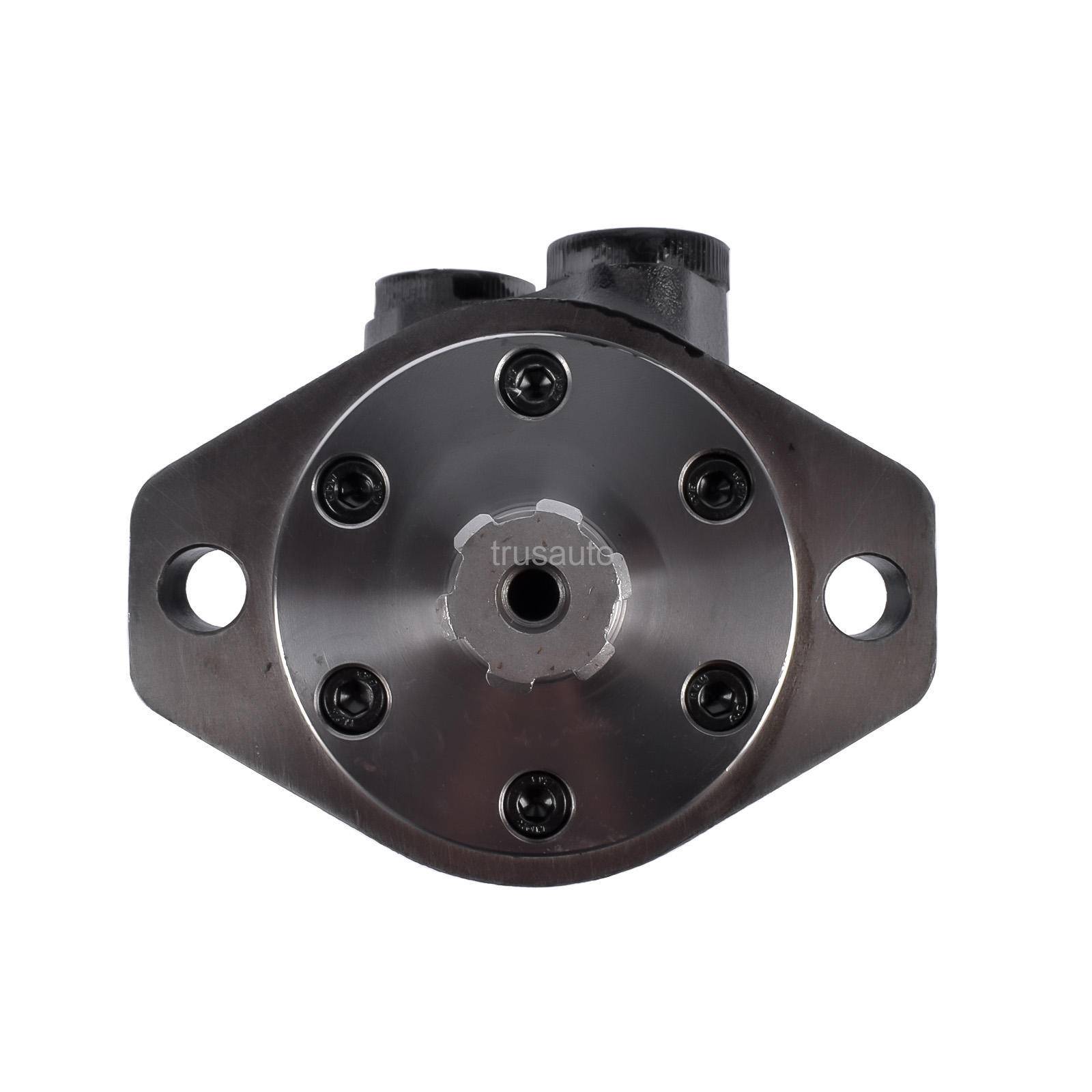

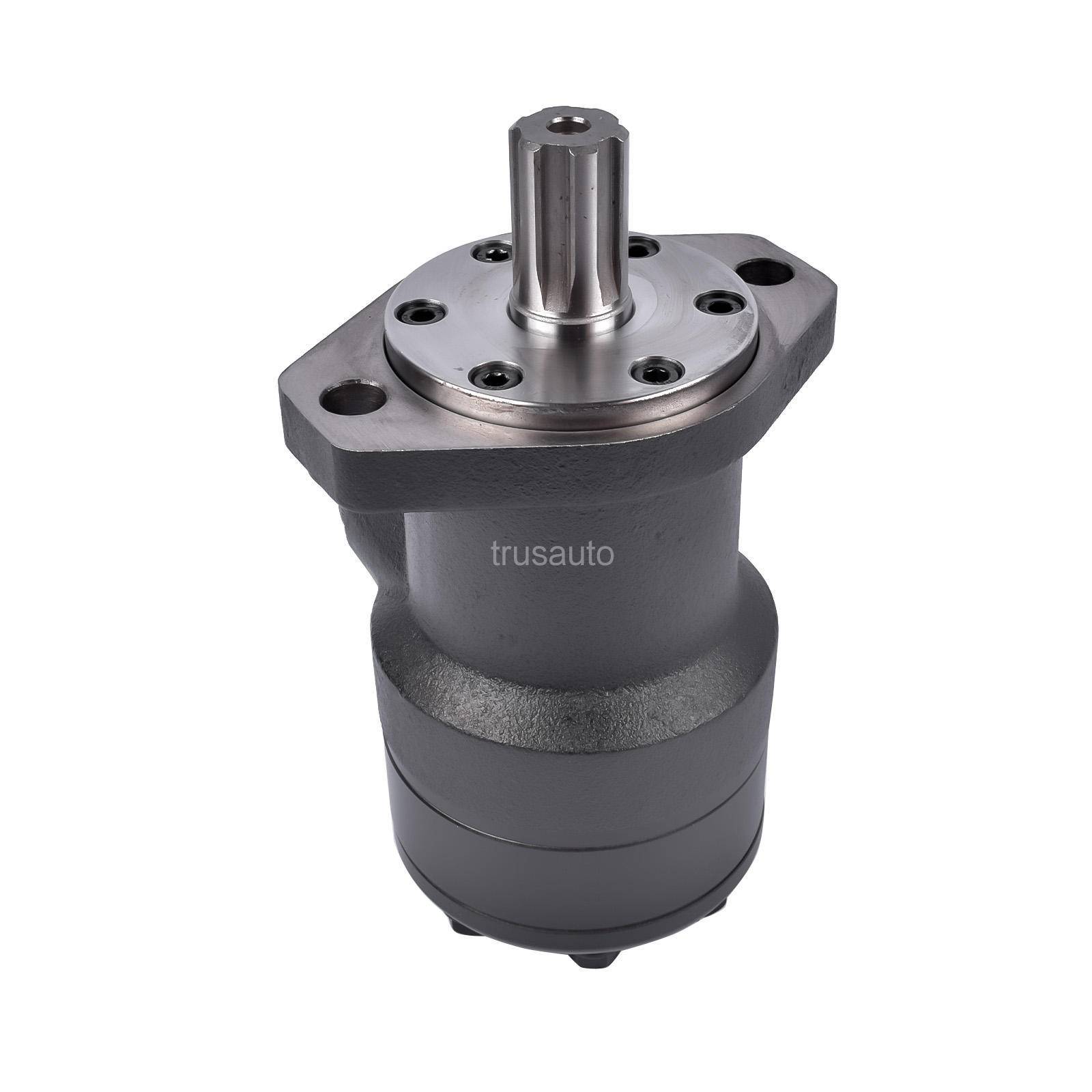

Splined Output Shaft 1" with 1/2 BSP Side Ports

OMR 160 Low Speed High Torque Motor, Geometric Displacement 159.6 cm3

Main Specification:

Motor size: 160
Geometric displacement( cm^3[in]): 159,6[9.77]
Max speed cont: 375 rpm
Max speed int: 470 rpm
Max torque cont(Nm[lbf in]): 380[3360]
Max torque int(Nm[lbf in]): 430[3810]
Max output power cont(kW[hp]): 12,5[16.8]
Max output power int(kW[hp]): 14,0[18.8]
Max pressure drop cont(bar[psi]): 175[2540]
Max pressure drop int(bar[psi]): 200[2900]
Max pressure drop peak(bar[psi]):225[3260]
Max oil flow cont(l/min[gpm]): 60[15.9]
Max oil flow int(l/min[gpm]): 75[19.8]
Max starting pressure with unloaded shaft(bar[psi]): 7[100]
Min starting torque at max press drop cont(Nm[lbf in]): 320[2830]
Min starting torque at max press drop int(Nm[lbf in]): 370[3280]
Max inlet pressure cont(bar[psi]): 175[2540]
Max inlet pressure int(bar[psi]): 200[2900]
Max inlet pressure peak(bar[psi]): 225[3260]
Max return pressure with drain line cont(bar[psi]): 175[2540]
Max return pressure with drain line int(bar[psi]): 200[2900]
Max return pressure with drain line peak(bar[psi]): 225[3260]
