Description:

The Electric Oil Pump can handle diesel oil, kerosene, not for gasoline.

It is constructed from heavy-duty iron, making it durable and long-lasting.

With a maximum flow of sixteen gallons per minute, pumping fuel is not only easy, but speedy as well.

60 liter per minute (16 gallons per minute) maximum flow rate

You can also keep track of how much fuel you pump per job and over the electric oil pump's lifetime of usage using its built-in fueling meter.

Specifications:

Condition: 100% Brand New

Type: AC Fuel Transfer Pump

Model: ACTP60

Material: Cast Iron, Aluminum

Motor: 110V AC 60Hz

Rated Power: 550W

Flow Rate: 20-60L/Min

Max Pressure: 3 Bar

Suction Height: 3-5m (16ft)

Absorbing Distance: 5m

Speed Rang: 3300 (r/m)

Note: This oil transfer pump is used for pumping light oils such as diesel or kerosene for vehicles, construction sites, farms and outside applications or other for other fuel powered equipment.

This oil pump is convenient,reliable, easy to operate and simple to maintain. Not suitable for low flammability fuel (such as gasoline, liquefied petroleum gas, alcohol, etc.)

Mechanical Plastic Flow Meter:

4 digit flow meter 0-9999L (resettable)

Totaliser: 0-999999999L (non resettable cumulative in total)

Body material: Aluminum

Size: 1"

Measurement: Liter

Flow Rate: 20-120L/min（5-30GPM）

Max operating pressure: 50psi/3.5 Bar

Precision: +/- 1%

Digital subtotal: 4 digital

Digital Intotal: 8 digital

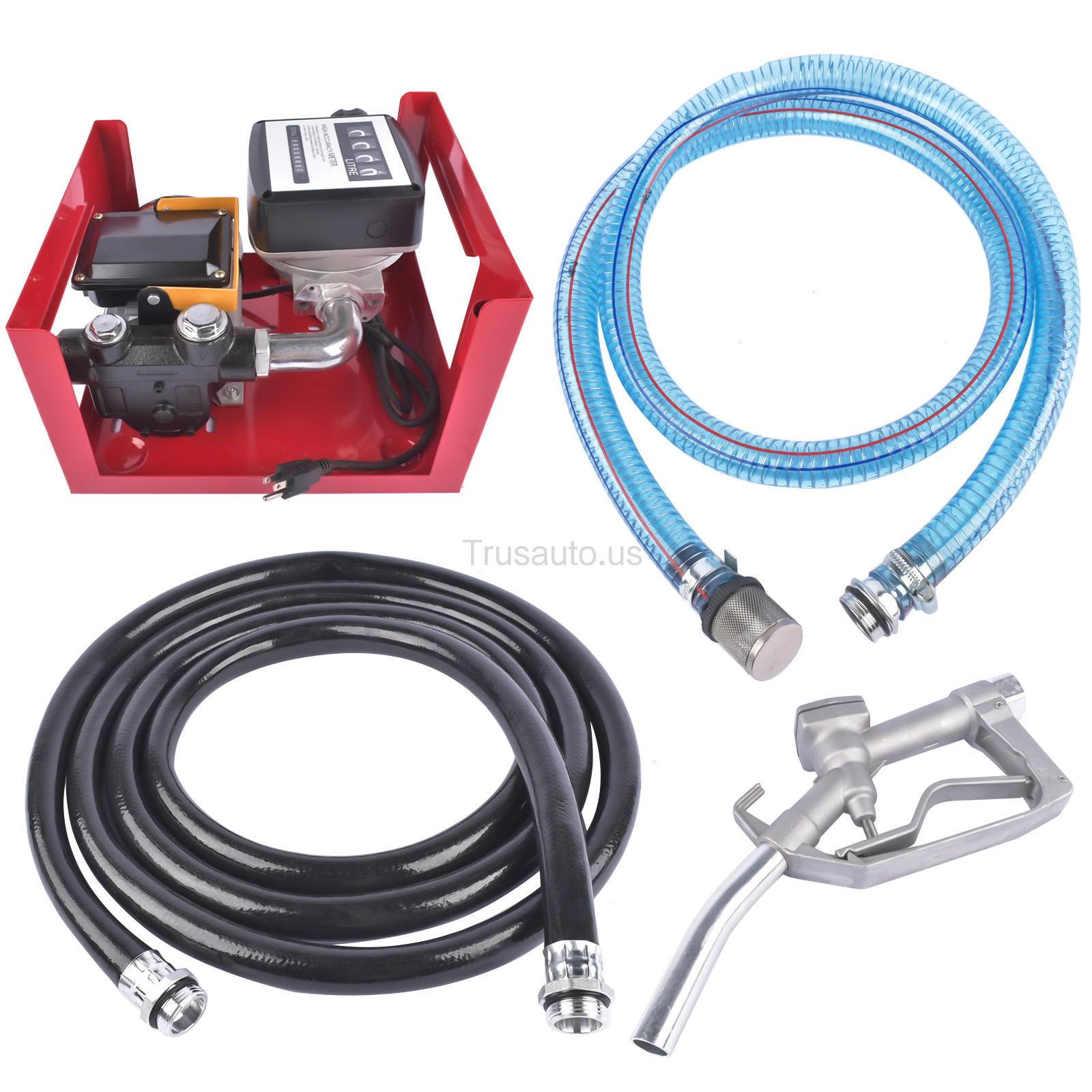

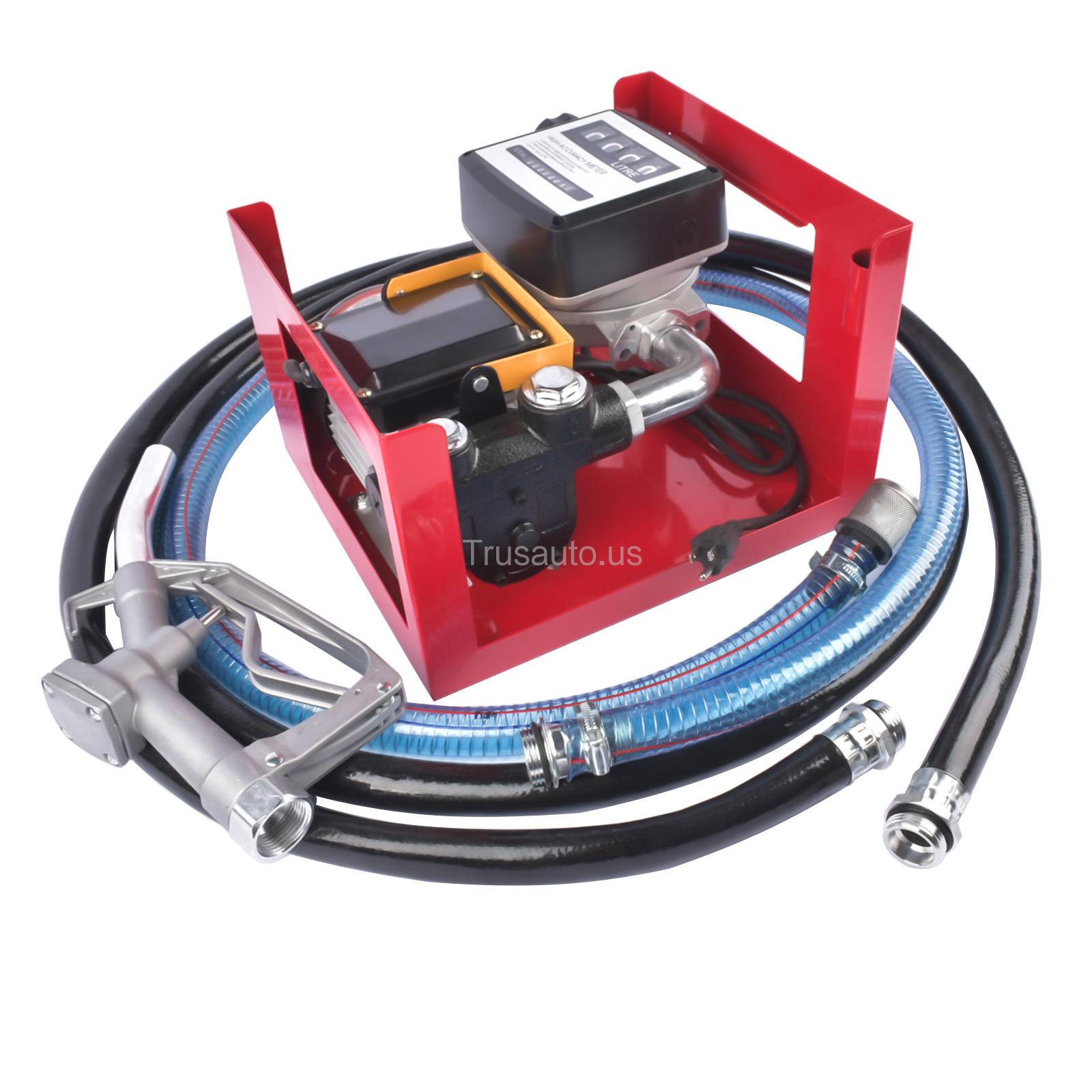

Package Includes:

1x Electric oil pump w/ Housing

1x Manual Filling Nozzle

1x Clear Suction Hose

1x Rubber hose

1x Mechanical Meter

1x Manual Instruction

Attention:

1. Reset the meter to 0 before each use to ensure proper measuring of cach fueling job.

2. Do not leave the motor running when not in operation. Only interval runs between fueling jobs may be permitted.

3. Clean the fucl strainer regularly.
