OE Number

82007

Will fit Following Models

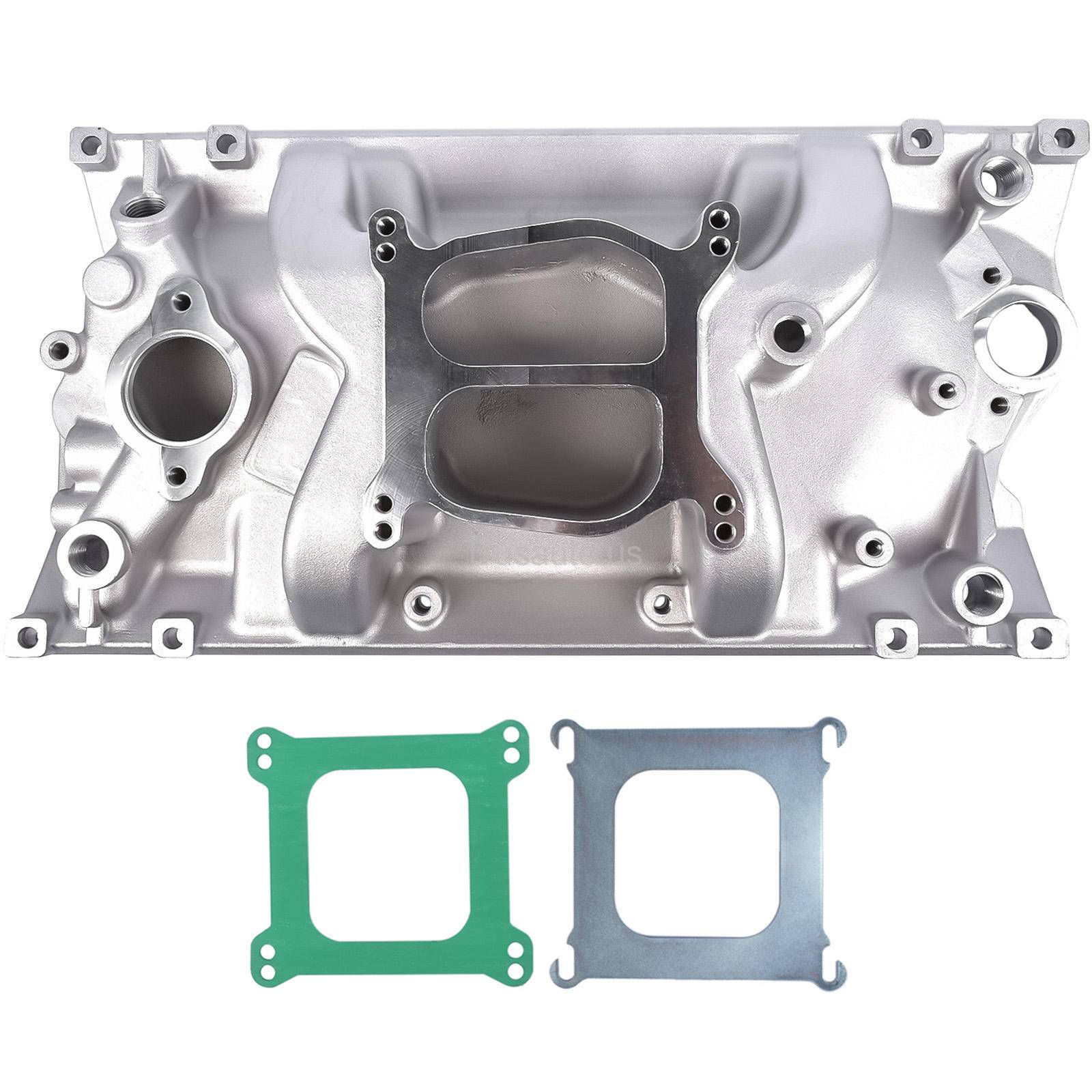

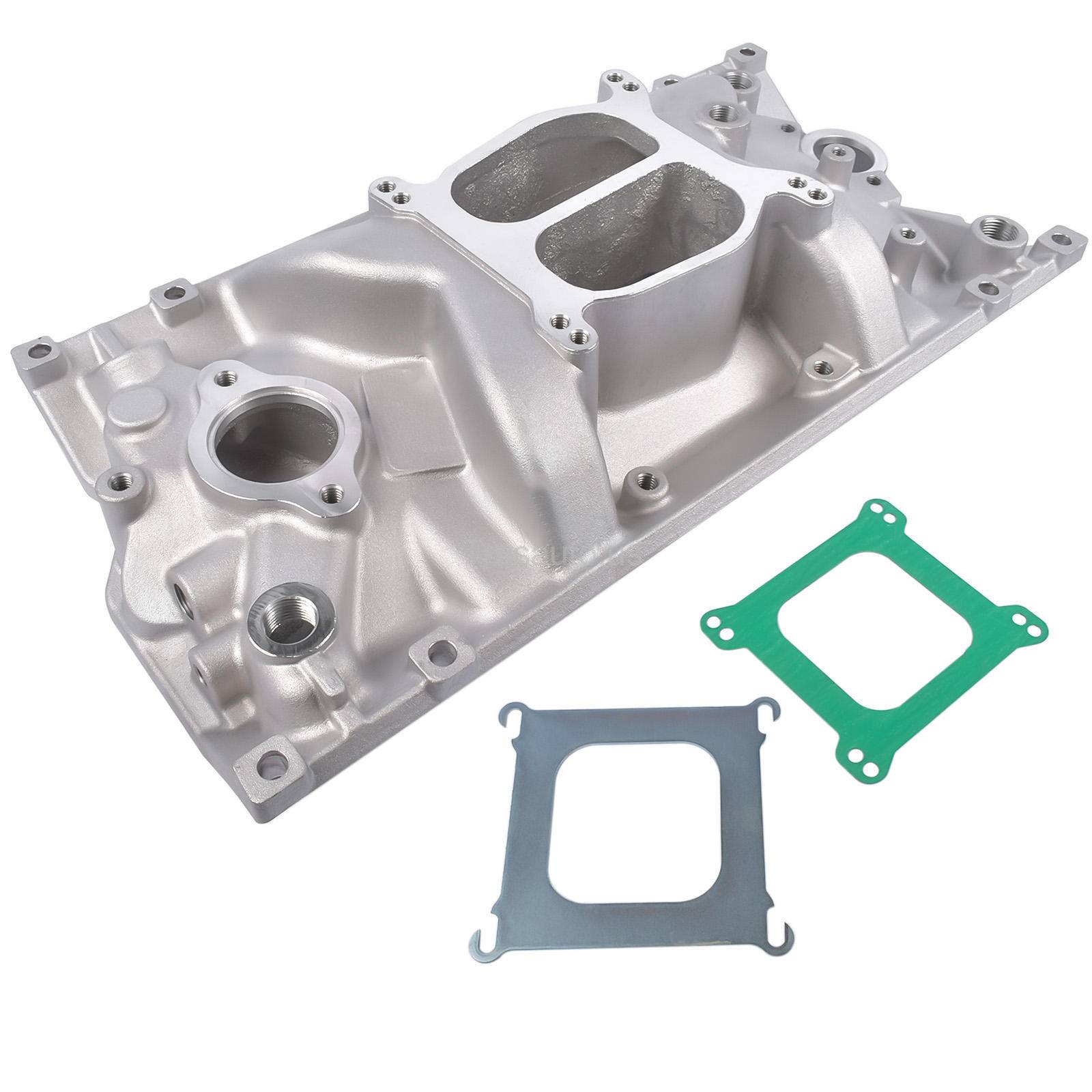

Fits engine swaps using the 1996 and later Vortec cast iron heads or the Edelbrock E-Tec aluminum heads. These manifolds can be used on any Chevy V8 engine utilizing the late Vortec head.

Fits Small Block Chevy SBC V8 Engines Vortec Heads 262, 265, 267, 283, 302, 305, 307, 327, 350, 400.

Features dual-plane design with a satin finish

Chevrolet  1996-    V8 5.0L/305  Chevy Small Block Vortec Engine

Chevrolet  1996-    V8 5.7L/350  Chevy Small Block Vortec Engine

Specifications:
CARBURETOR QUANTITY: 1
INTAKE STYLE: Dual Plane
BASIC OPERATING RANGE: Idle to 5,500 RPM
MANIFOLD HEIGHT: 4.25"
MANIFOLD MATERAL: Aluminum
EGR: No
INCLUDED: Head Bolt Adapters
Choke Block-off Kit
Square Bore Adapter Kit

Description:

• Item is 100% New, Never used or installed.
• Satin finish
• 180° dual plane design for outstanding power from idle to 5500 RPM
• For use with Vortec style heads
• Can use either spread or square bore carbs, includes adapter plate and gasket for square bores
• Ideal port position - allows custom porting for maximum power
• Dual distributor hold-down provisions for extra protection against distributor rotation
• Four corner water outlets
• Accepts late-model water neck, air-conditioning, alternator, and HEI
• Pressure tested to insure leak free operation
• Professional installation in highly recommended.
• No instruction included.
