Parameters
Part Type
replacement
Manufacturer Part Number
Auto Electric A/C Compressor for RV Van, Air Conditioning Compressor Kit, A/C Compressor, ES21A012F-2
Interchange Part Number
ES21A012F-2-SET, Air Conditioning Compressor Kit, R134a, 12V, 63A, 1000W, 12V A/C Compressor, AC Compressor
Compatibility
| Make | Model | Year | Trim | Engine | Notes |
|---|---|---|---|---|---|
 No Data Yet | |||||
$ 208.80
Market Price: $223.42 0 People Puchased
Free Delivery
Universal DC 12V Electric Car Air Conditioner Compressor Kit A/C Control Panel
Quantity:
-
+
If you have a large demand for this product, please send an email to sale@trusauto.us, and we will contact you as soon as possible.
Expected shipping date : Shipped on the second business day.
Shipping cost : For shipping within the United States, most regions are eligible for free delivery, with only a few remote areas subject to pricing based on specific shipping rules.
Return : 60 days returns. Buyer pays for return shipping.
Protection : within 2 years.
$ 208.80
Market Price: $223.42 0 People Puchased
Free Delivery
Universal DC 12V Electric Car Air Conditioner Compressor Kit A/C Control Panel
Quantity:
-
+
If you have a large demand for this product, please send an email to sale@trusauto.us, and we will contact you as soon as possible.
Specifications
Type: 12 V Automotive Electric AC Compressor
Compressor Style: 12V Semi-closed Horizontal Scroll
Max. Applied Power: 1000W
Refrigerant: R134a
Max. Speed (460V Rating): 2100rpm
Rated Voltage: 12VDC
Speed Range: 1000 - 2100rpm
Refrigeration Oil: POE Oil RL68H/130ml
Max. Incoming Current: 63A
Material: Aluminum Alloy
Features
Control External Design: The air conditioner compressor separates the control panel from the main unit.
LED Flashing Prompt: The control panel adopts a brushless controller unit with LED flashing prompt and protected mode. LED flashing prompts are specially designed for faults.
Multiple Protection: Efficient work, the electric ac compressor will automatically stop working when encountering high pressure/under-voltage and then automatically restart after stable
Widely Used: A/C 12 volt electric compressor unit, suitable for AC air conditioning in automobiles, trucks, and buses.
Led Blinking
LED Blinking hint is special designs for the fault. during the using, some irreguar operate lead to some wrong like,Excessive current,Undervoltage,Locked rotor, Standby mode,over heated,over preasure. This Air conditioner compressor will turn to protection mode and hint by LED blinking.
Blinking 1 times, pause 1 second: Standby mode.
Fast blinking 2 times, pause 1 second: Excessive current, Over 50A.
Fast blinking 3 times, pause 1 second: Locked rotor protection.
Fast blinking 4 times, pause 1 second: Undervoltage protection.
Fast blinking 6 times, pause 1 second: Electric fan fault.
Fast blinking 7 times, pause 1 second: Motor lack of phase. Please check if the motor got burnt and connection is correct or not.
Fast blinking 8 times, pause 1 second: Compressor over heated protection.
Fast blinking 9 times, pause 1 second: Pressure switch protection.
Package Incluedes

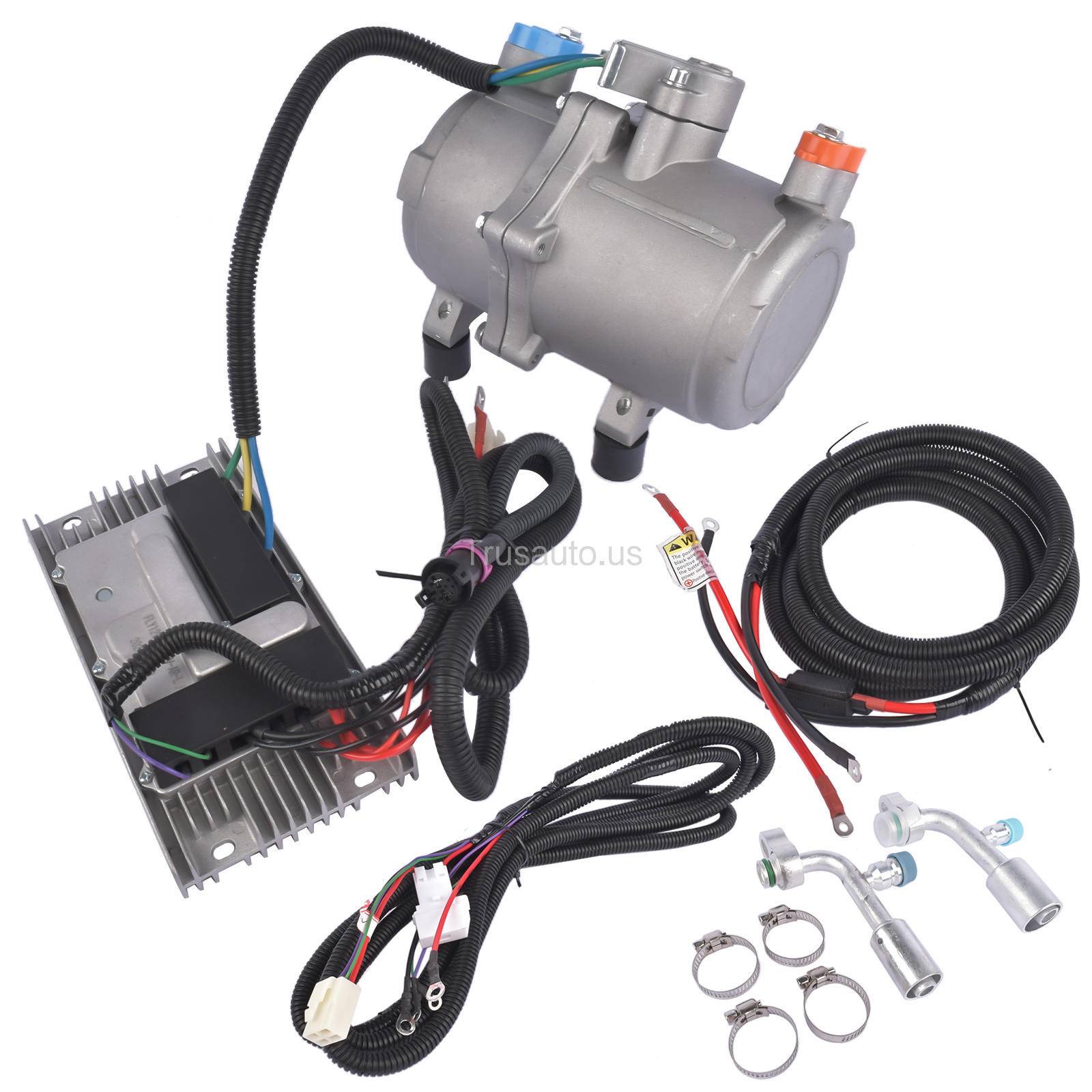

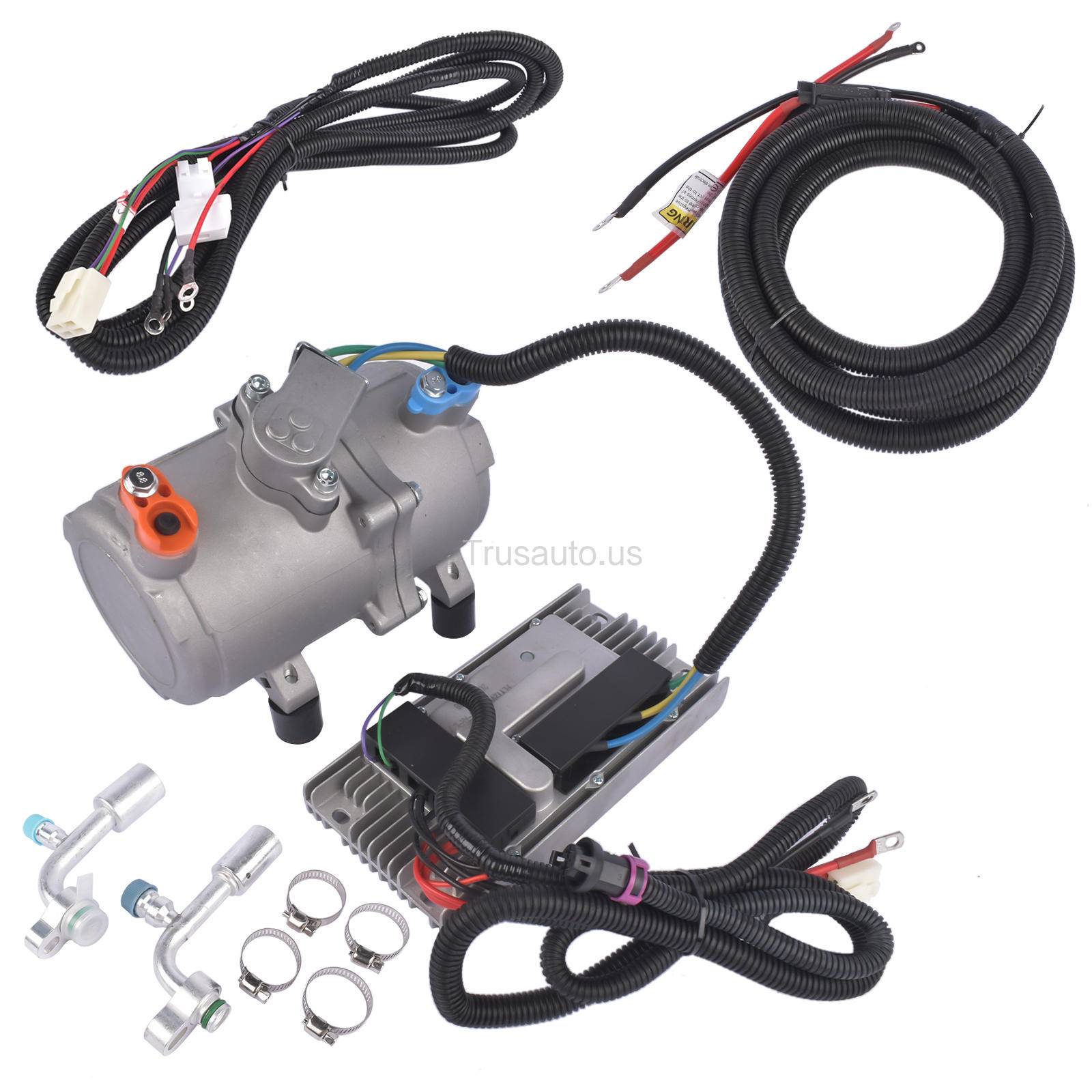

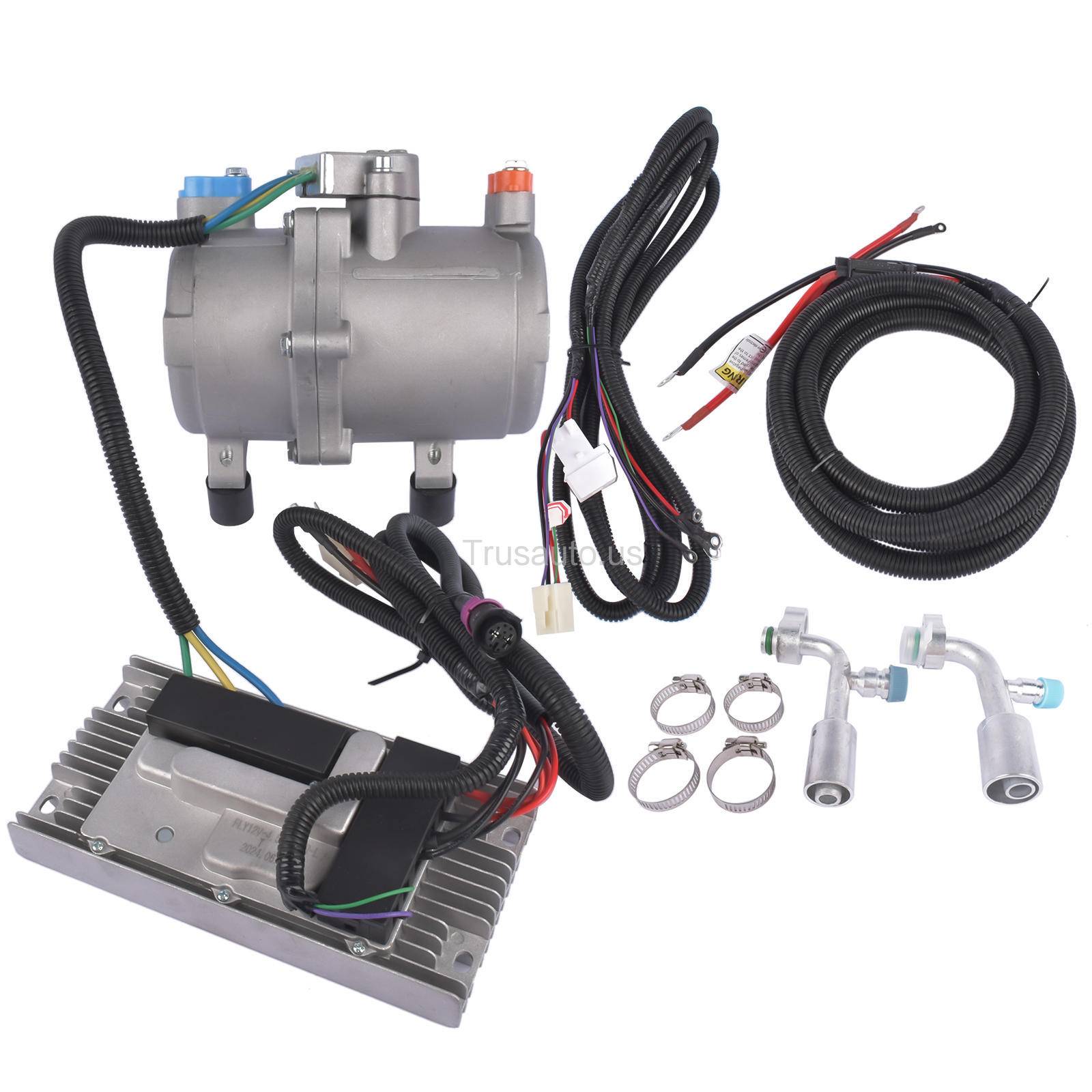

1x Air Conditioning Compressor Kit (As Pics Shown)
