Parameters
Part Type
replacement
Manufacturer Part Number
WR55X10942, WR55X10942C
Interchange Part Number
WR55X10942, WR55X10942C, 200D4850G022, WR55X10942P, AP7188100, WR55X10416, WR49X10060, WR55X10024, WR55X10037, WR55X10090, WR55X10109, WR55X10187, WR55X10335, WR55X10385, WR55X10523, WR55X10524, WR55X10543, WR55X10552, WR55X10554, WR55X10558, WR55X10589, WR55X10597, WR55X10614, WR55X10616, WR55X10626, WR55X10656, WR55X10659, WR55X10722, PS2364946, AP4436216
Compatibility
| Make | Model | Year | Trim | Engine | Notes |
|---|---|---|---|---|---|
 No Data Yet | |||||
$ 95.62
Market Price: $102.32 0 People Puchased
Free Delivery

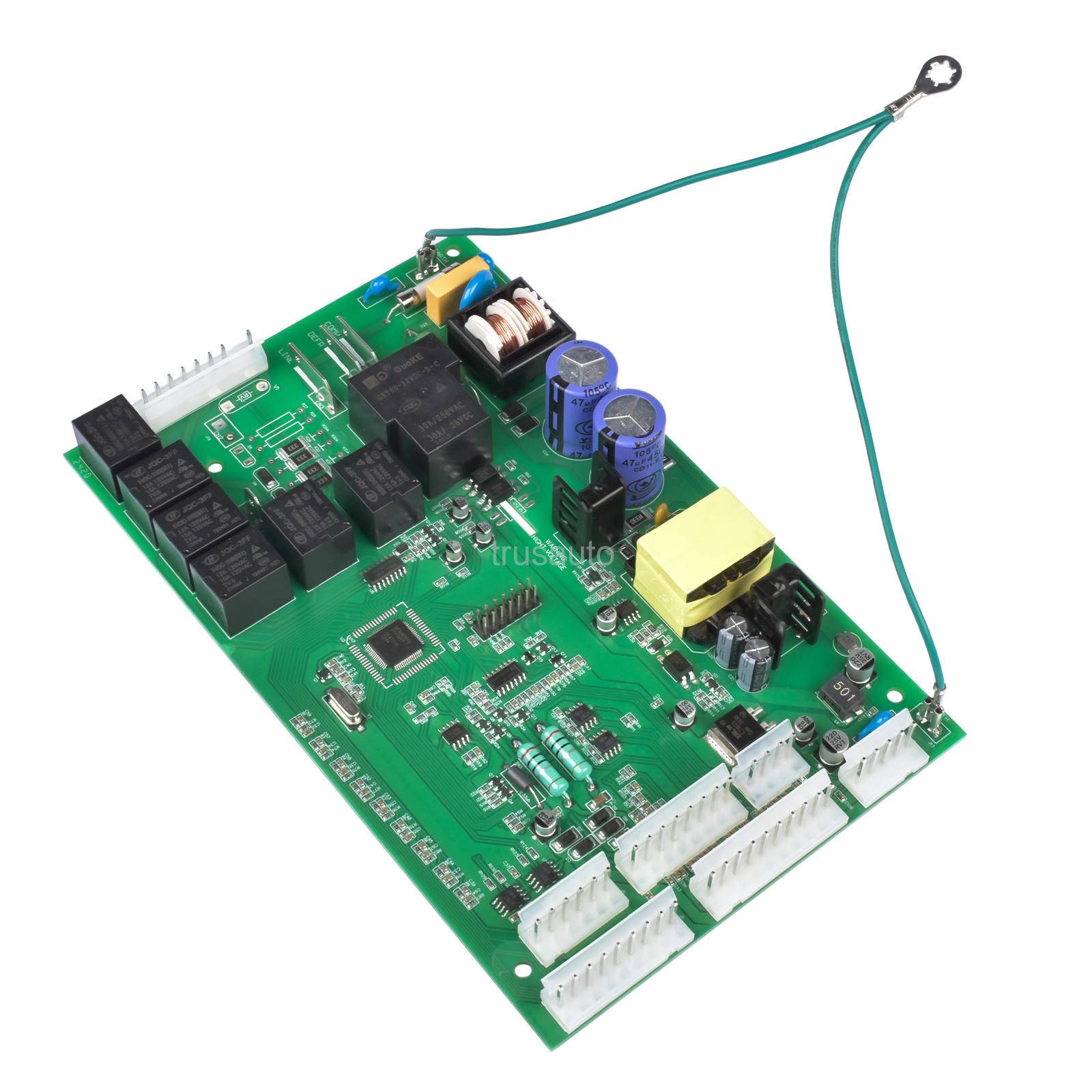

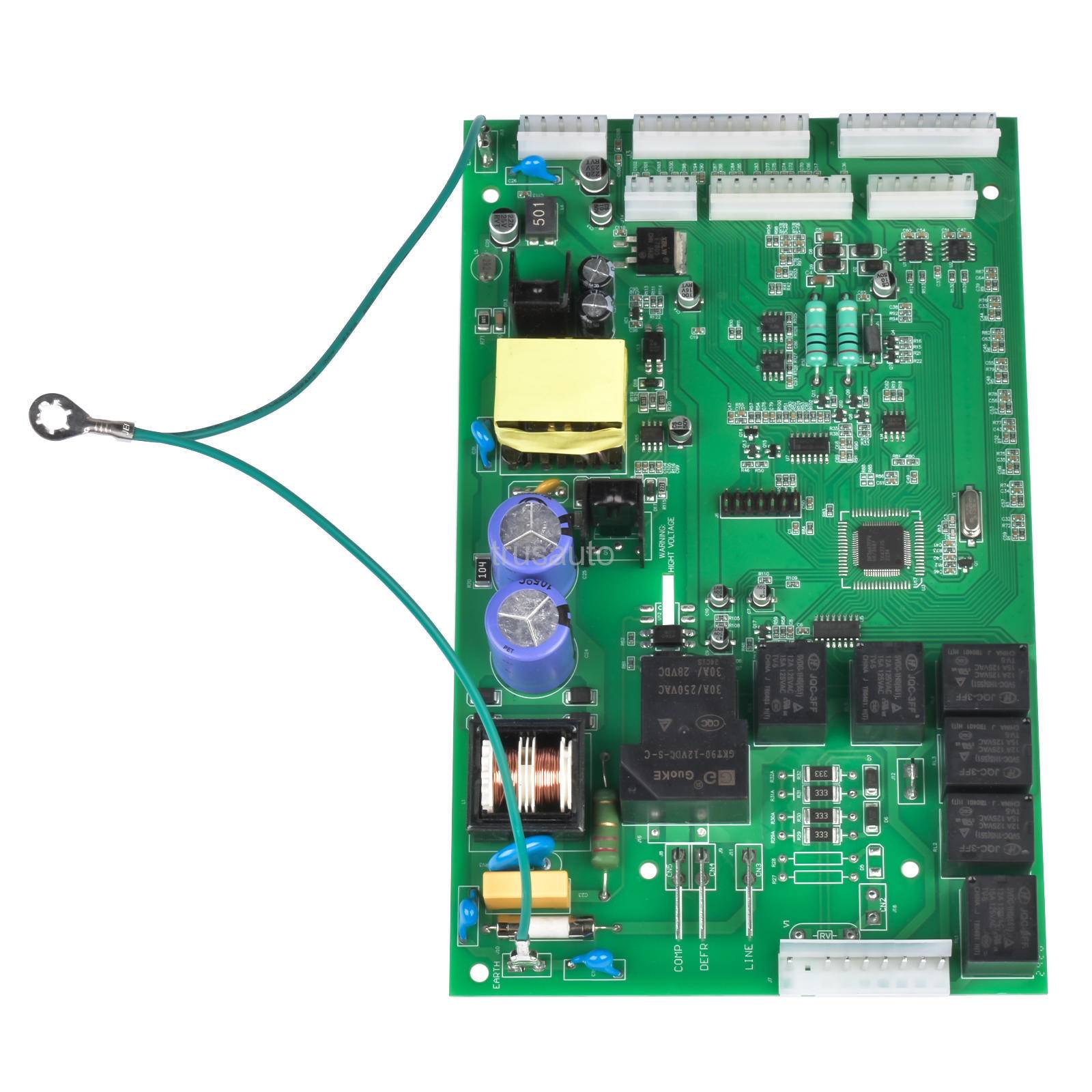

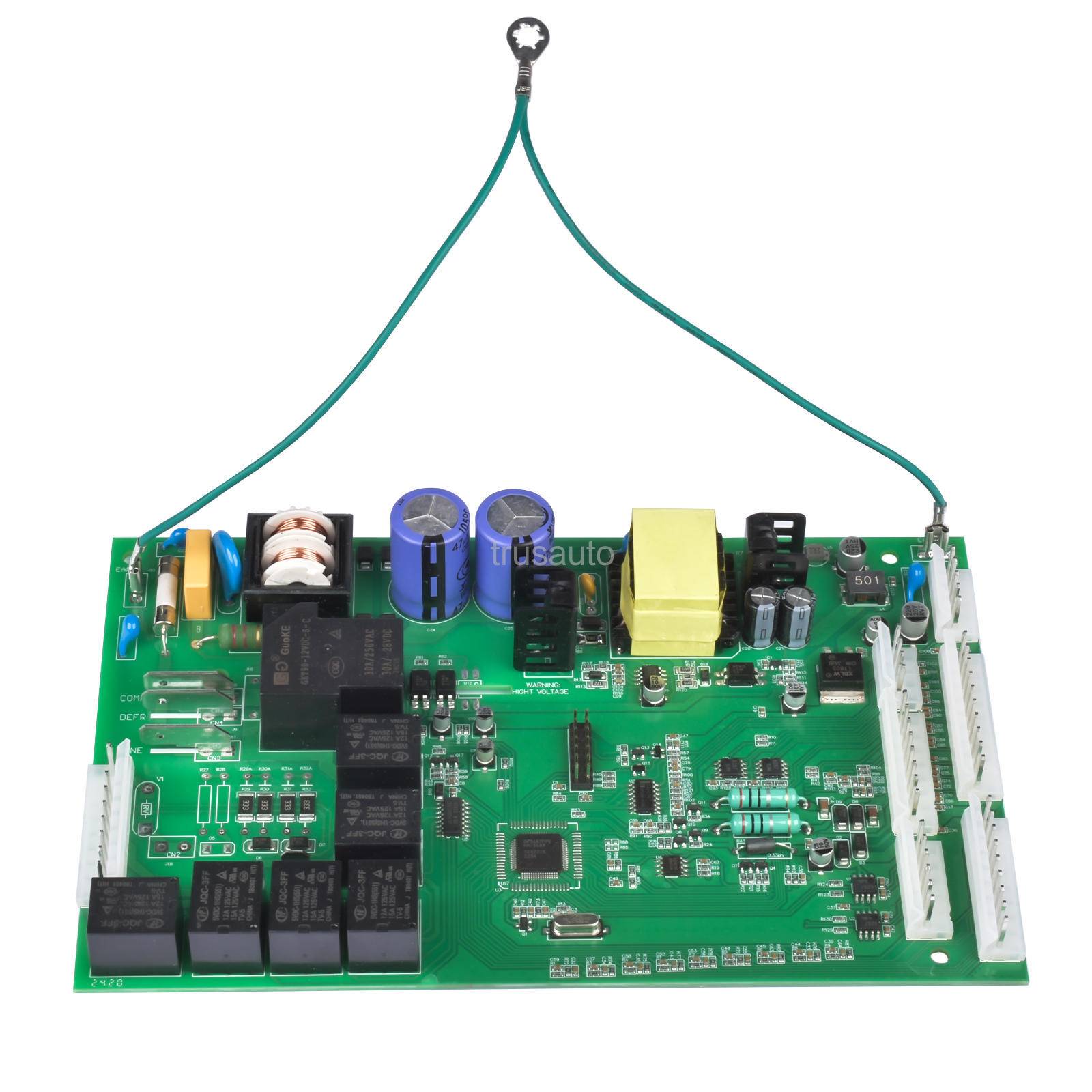

Control Board for GE Refrigerator Main Control Board #WR55X10942C AP7188100
Quantity:
-
+
If you have a large demand for this product, please send an email to sale@trusauto.us, and we will contact you as soon as possible.
Expected shipping date : Shipped on the second business day.
Shipping cost : For shipping within the United States, most regions are eligible for free delivery, with only a few remote areas subject to pricing based on specific shipping rules.
Return : 60 days returns. Buyer pays for return shipping.
Protection : within 2 years.
$ 95.62
Market Price: $102.32 0 People Puchased
Free Delivery
Control Board for GE Refrigerator Main Control Board #WR55X10942C AP7188100
Quantity:
-
+
If you have a large demand for this product, please send an email to sale@trusauto.us, and we will contact you as soon as possible.
➪Product Type:
Control Board
➪OE Number:
WR55X10942,WR55X10942C,200D4850G022,WR55X10942P, AP7188100
AP7188100, WR55X10416, WR55X10942C, WR55X10942
WR55X10942P, WR49X10060, WR55X10024, WR55X10037
WR55X10090, WR55X10109, WR55X10187, WR55X10335
WR55X10385, WR55X10523 , WR55X10524 ,WR55X10543
WR55X10552, WR55X10554 ,WR55X10558 , WR55X10589
WR55X10597 ,WR55X10614 , WR55X10616 , WR55X10626
WR55X10656 , WR55X10659 , WR55X10722, PS2364946, AP4436216 etc.
➪Application:
Replacement for GE refrigerator motherboard
Replacement for GE refrigerator main control board
control board Replacement for GE refrigerator & Hotpoint & Americana
➪How to install:
STEP1: Disconnect power to the refrigerator and remove existing main board. TOOLS:1/4” nut driver,wire cutters (for some models)
STEP2：Eliminate thermistor wire in pin 2 of J1 connector (see note below) if no wire in pin2, proceed to step 3.Note: This step is ONLY applicable for the following models:ALL BOTTOM FREEZER models
ENCODE models with the following serial number prefixes：TD2 VD2 ZD2 AF2 DF2 FF2 GF2 HF2 LF2 MF2 RF2 SF2
STEP3: Install new main board.
(1) Reconnect the electrical connectors by gently pushing the connectors onto the terminals
(2) The connectors on the new board may be in a different order/place than the old board
(3) When replacing back panel,make certain to capture eyelet of ground wire with back panel screw.
(4) Make sure the ground wire is not pinched by the back panel and is within the enclosure.
STEP4: Cut green wire in capacitor board (ONLY Replacement for BOTOM FREEZER model)
STEP5: Check operation.Make sure the compressor and evaporator fan turn on.Check that the temperature board is functioning.
