Parameters
Part Type
replacement
Manufacturer Part Number
1016386, 1016349, 7539, 7540, 1016346, 102288401, 8067, 7048, 1010150, 1016389, 1016350, 1012303
Interchange Part Number
1016386, 1016349, 7539, 7540, 1016346, 102288401, 8067, 7048, 1010150, 1016389, 1016350, 1012303
Compatibility
| Make | Model | Year | Trim | Engine | Notes |
|---|---|---|---|---|---|
 No Data Yet | |||||
$ 80.10
Market Price: $91.32 0 People Puchased
Free Delivery
Golf Cart Front End Repair Kit for Club Car DS 1993-Up Model #1016386
Quantity:
-
+
If you have a large demand for this product, please send an email to sale@trusauto.us, and we will contact you as soon as possible.
Expected shipping date : Shipped on the second business day.
Shipping cost : For shipping within the United States, most regions are eligible for free delivery, with only a few remote areas subject to pricing based on specific shipping rules.
Return : 60 days returns. Buyer pays for return shipping.
Protection : within 2 years.
$ 80.10
Market Price: $91.32 0 People Puchased
Free Delivery
Golf Cart Front End Repair Kit for Club Car DS 1993-Up Model #1016386
Quantity:
-
+
If you have a large demand for this product, please send an email to sale@trusauto.us, and we will contact you as soon as possible.
Type:
Golf Cart Accessories
Replace Parts:
1016386, 1016349, 7539, 7540, 1016346, 102288401
8067,7048,1010150,1016389,1016350,1012303
King Pin OEM# 1016386
Bronze Bushing OEM# 8067
Bronzed Bushing OEM# 7048
Thrust Bearing OEM# 1010150
King Pin wave washer OEM# 1016389
Delta A arm bushings OEM # 1016346
inner sleeve OEM # 1016349
outer sleeves OEM # 1016350
The spring sleeve OEM part # 1012303
Spring bushing OEM #1015583
tie rod ends OEM # 7539 (RH),7540 (LH)
Compatible with
This brand new kit was created to repair the front and rear end of Club Car DS 1993-2008 Gas & Electric Golf Carts. Please make sure your club car ds golf cart has female end tie rod.
This kit will NOT work on Older DS (1993 or Older), Club Car Precedent 2004-Up, Onward, Tempo 2017-UP golf carts.el no matter what year it is.

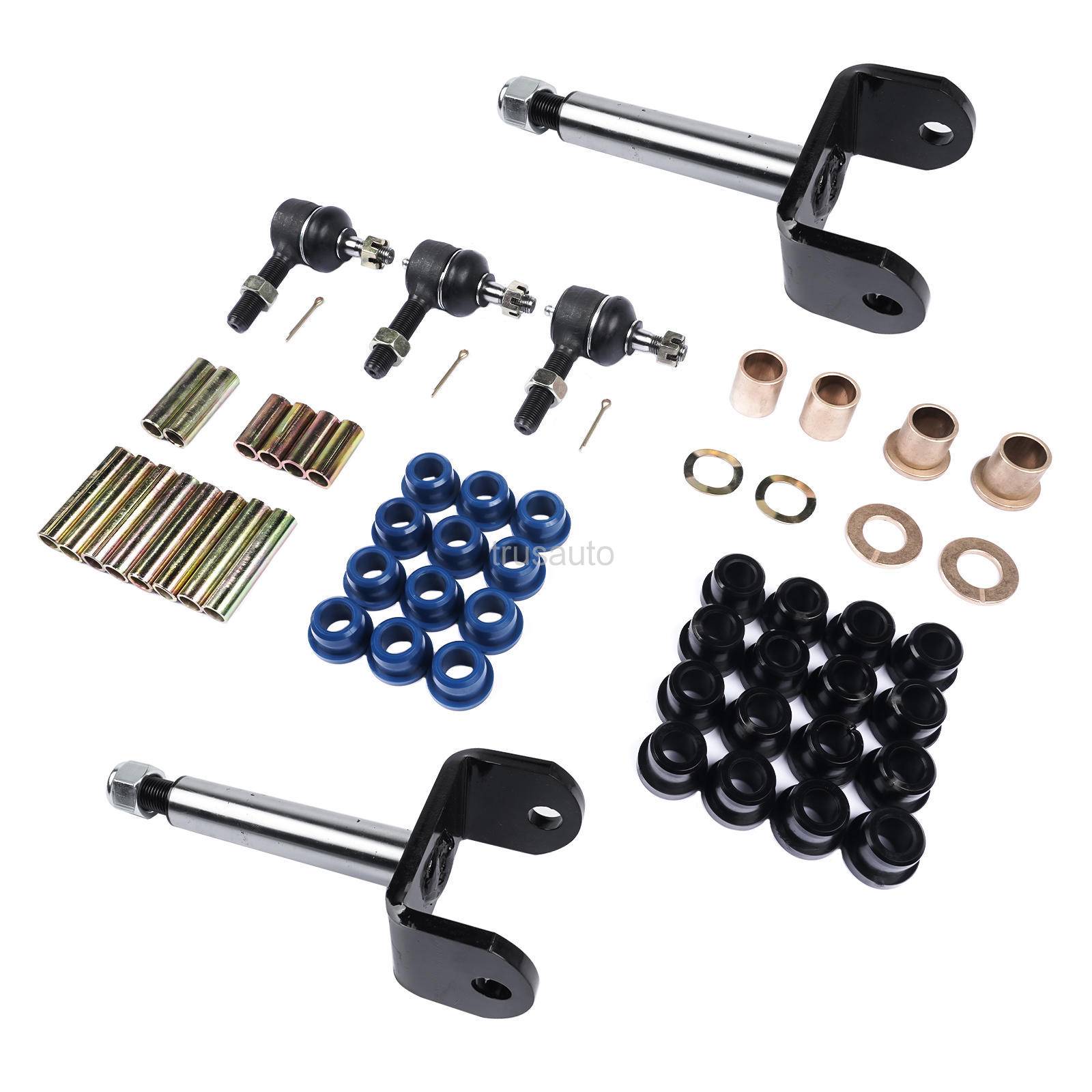

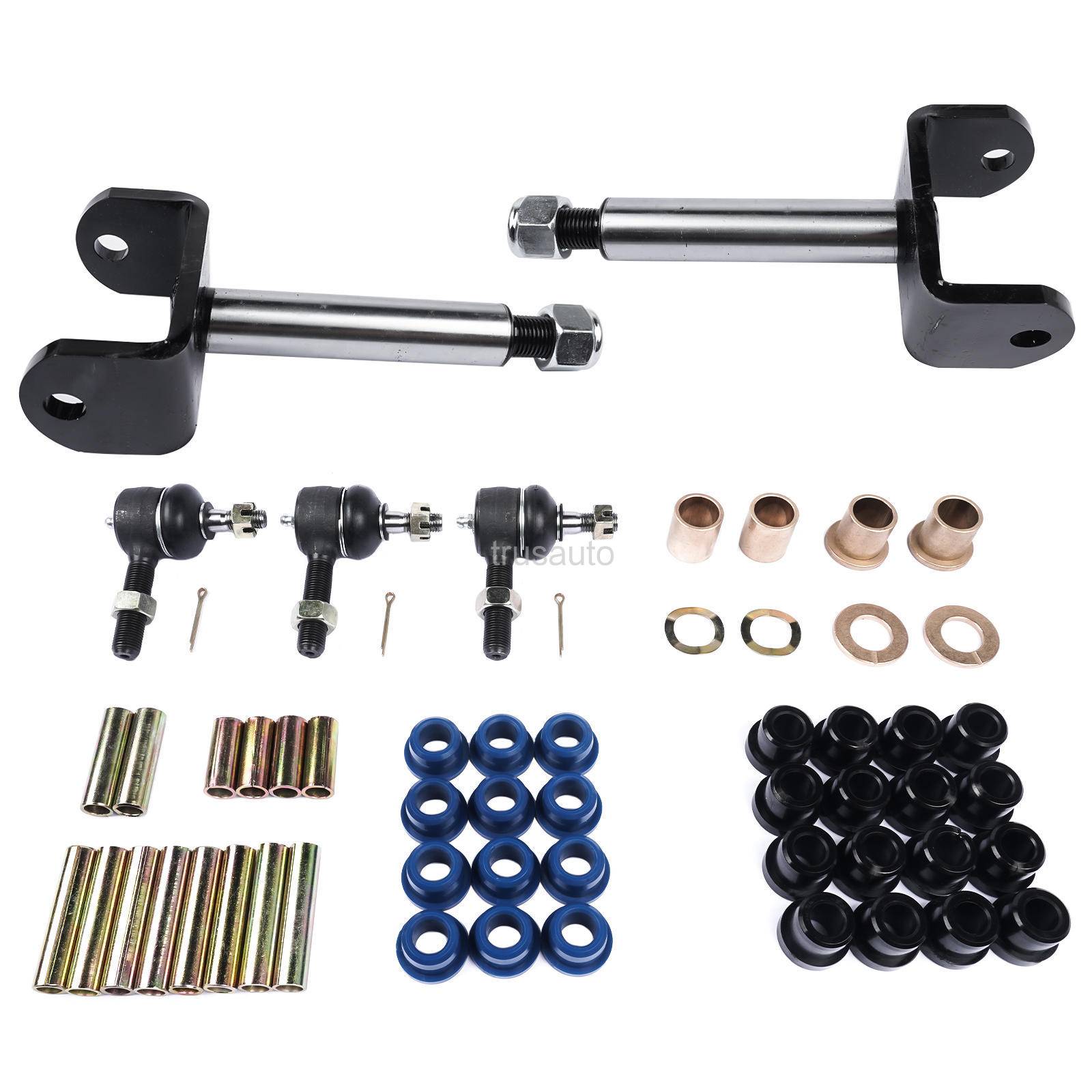

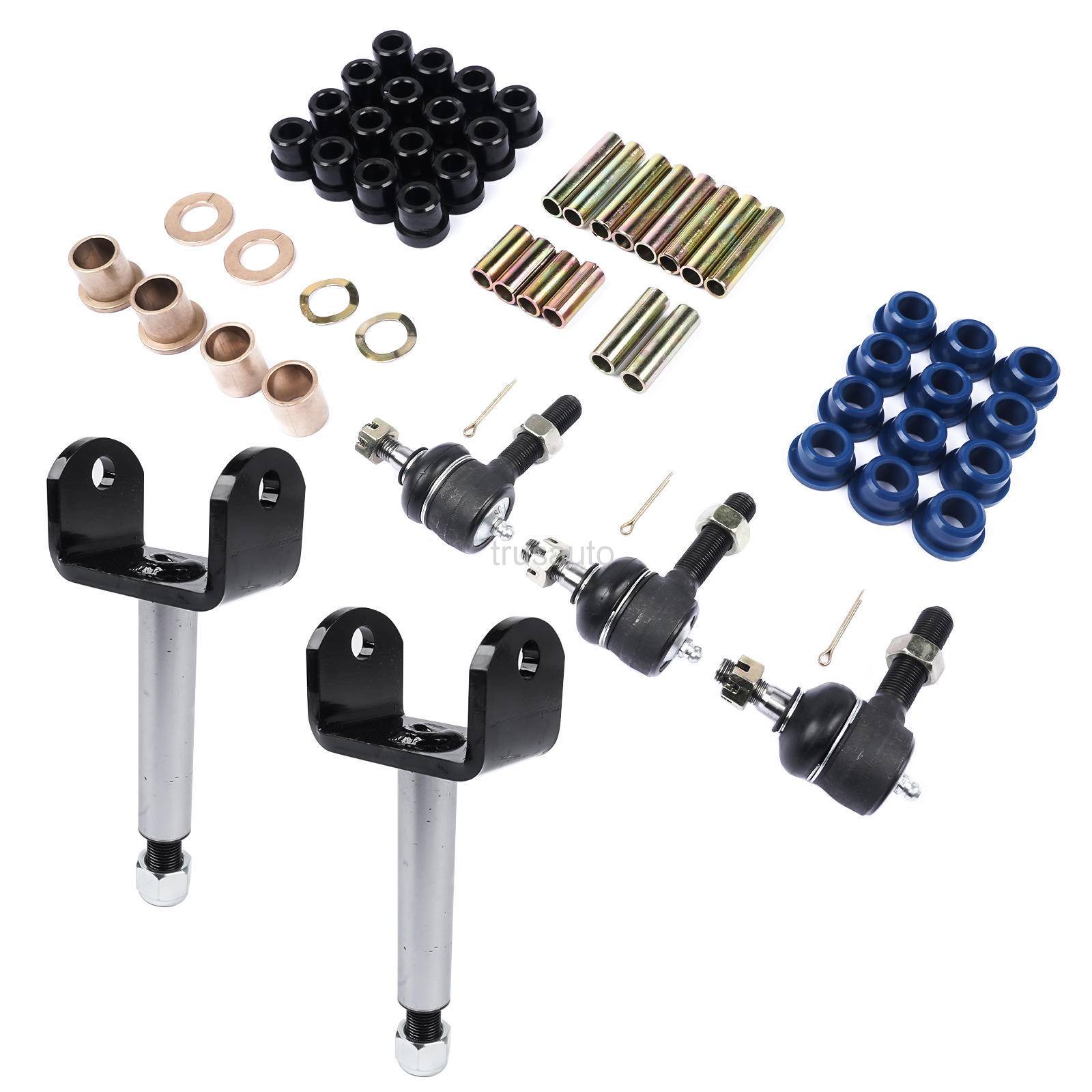

Kit Includes:
2x King pins
2xupper bushings
2x lower bushings
2x wave washers
2x thrust bearings
3 tie rod ends (1x right hand thread, 2x left hand thread including steering gear box drag link tie rod)
complete control arm bushing kit (12x bushings, 6 sleeves)
front and rear leaf spring as well as shackle bushing kit (16x bushings, 8 sleeves).
