Parameters
Part Type
replacement
Manufacturer Part Number
168F/ Air Cooled 4 Stroke OHV Single Cylinder
Interchange Part Number
168F/ Air Cooled 4 Stroke OHV Single Cylinder
Compatibility
| Make | Model | Year | Trim | Engine | Notes |
|---|---|---|---|---|---|
 No Data Yet | |||||
$ 139.50
Market Price: $152.06 0 People Puchased
Free Delivery

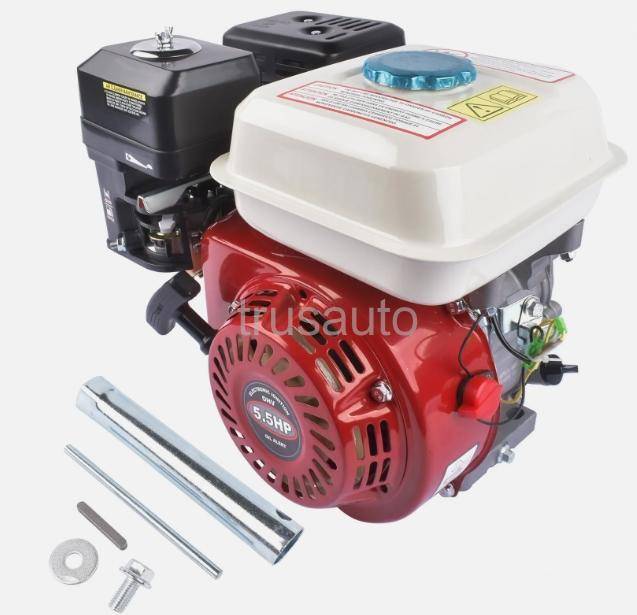

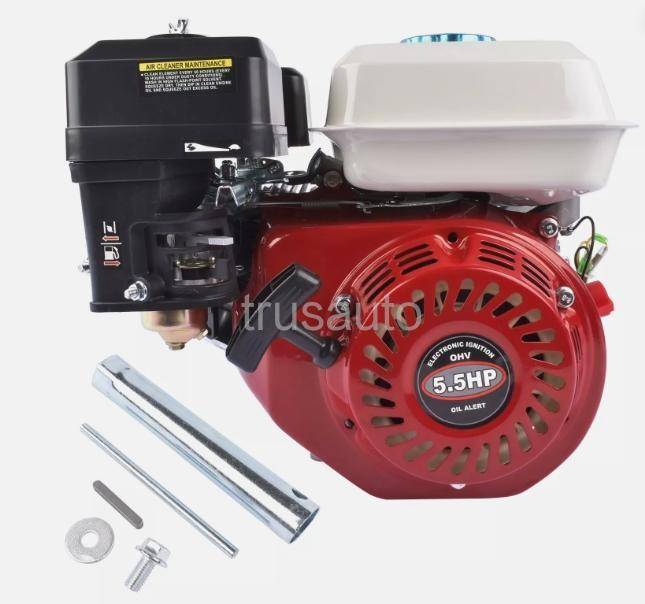

Gas Engine 4 Stroke 5.5HP 168cc 168F Pullstart for Honda GX160 20 mm
Quantity:
-
+
If you have a large demand for this product, please send an email to sale@trusauto.us, and we will contact you as soon as possible.
Expected shipping date : Shipped on the second business day.
Shipping cost : For shipping within the United States, most regions are eligible for free delivery, with only a few remote areas subject to pricing based on specific shipping rules.
Return : 60 days returns. Buyer pays for return shipping.
Protection : within 2 years.
$ 139.50
Market Price: $152.06 0 People Puchased
Free Delivery
Gas Engine 4 Stroke 5.5HP 168cc 168F Pullstart for Honda GX160 20 mm
Quantity:
-
+
If you have a large demand for this product, please send an email to sale@trusauto.us, and we will contact you as soon as possible.
Typical Application for:
Compressor Scarifier Lawnmower Pump Generator Pressure Washer Gokart Lawnmower Cement Mixer Dust Collector Flail MowerTechnical Data:
Compression Ratio : 8.5:1
Engine Type : 168F/ Air Cooled 4 Stroke OHV Single Cylinder
Maximum Output : 5.5 HP / 4.1 KW
Rated Output : 4.0 HP / 3.0 KWBore & Stroke : 70x55mmDisplacement : 168cc
Starting System : Pullstart
Fuel Capacity : 3.6 LitresEngine Oil Capacity : 0.6 Litre

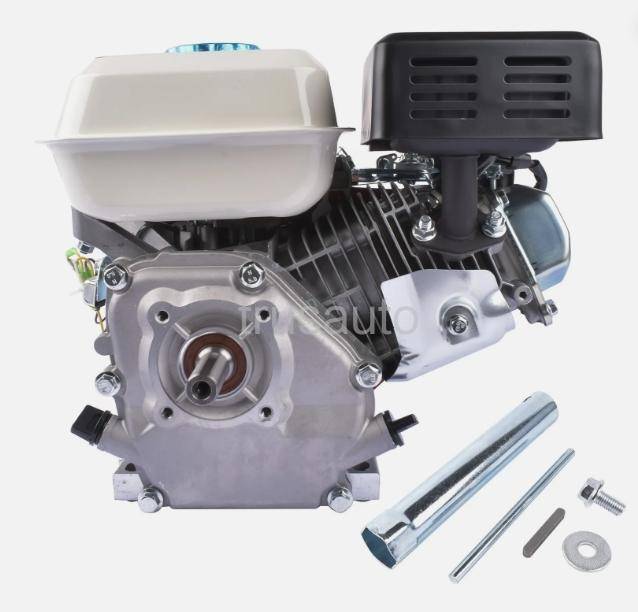

Diameter of Drive Shaft: 20 mm / 0.79 inches (NOT 0.75 INCH, NOT 3/4'' )Length of Drive Shaft / Crankshaft: 250mm / 9.84 inches
Distance Between Bottom Fixing Holes (Clutch Side, Centre of Eye to Centre of Eye): 165 mm / 6.5 inches
Distance Between Bottom Fixing Holes (Pullstart Side, Centre of Eye to Centre of Eye): 165 mm / 6.5 inches
Distance Between Bottom Fixing Holes (Pullstart to Clutch across, Centre of Eye to Centre of Eye): 77.06 mm / 3.03 inches
Notice:
Please double check the diameter of driver shaft and the Length of Drive Shaft / Crankshaft !
