Parameters
Part Type
replacement
Manufacturer Part Number
1218, 600" Valve Spring Kit For LS1 LS2 LS3
Interchange Part Number
1218, 600" Valve Spring Kit For LS1 LS2 LS3
Compatibility
| Make | Model | Year | Trim | Engine | Notes |
|---|---|---|---|---|---|
 No Data Yet | |||||
$ 31.50
Market Price: $33.71 0 People Puchased
Free Delivery
1218 VALVE SPRINGS FOR GM LQ9 LQ4 LS LS1 LS2 LS3 LS6 4.8 5.3 6.0 6.2 .600" LIFT
Quantity:
-
+
If you have a large demand for this product, please send an email to sale@trusauto.us, and we will contact you as soon as possible.
Expected shipping date : Shipped on the second business day.
Shipping cost : For shipping within the United States, most regions are eligible for free delivery, with only a few remote areas subject to pricing based on specific shipping rules.
Return : 60 days returns. Buyer pays for return shipping.
Protection : within 2 years.
$ 31.50
Market Price: $33.71 0 People Puchased
Free Delivery
1218 VALVE SPRINGS FOR GM LQ9 LQ4 LS LS1 LS2 LS3 LS6 4.8 5.3 6.0 6.2 .600" LIFT
Quantity:
-
+
If you have a large demand for this product, please send an email to sale@trusauto.us, and we will contact you as soon as possible.
Description:
The Spring Kit is a drop-in high performance spring kit for all OE LS cylinder heads and is rated for up to .600" lift. This spring kit uses all OE hardware, including seats, retainers, and locks and is 100% drop-in. This is a full set of 16 springs.
Specifications:
Number of Springs Per Valve: Single

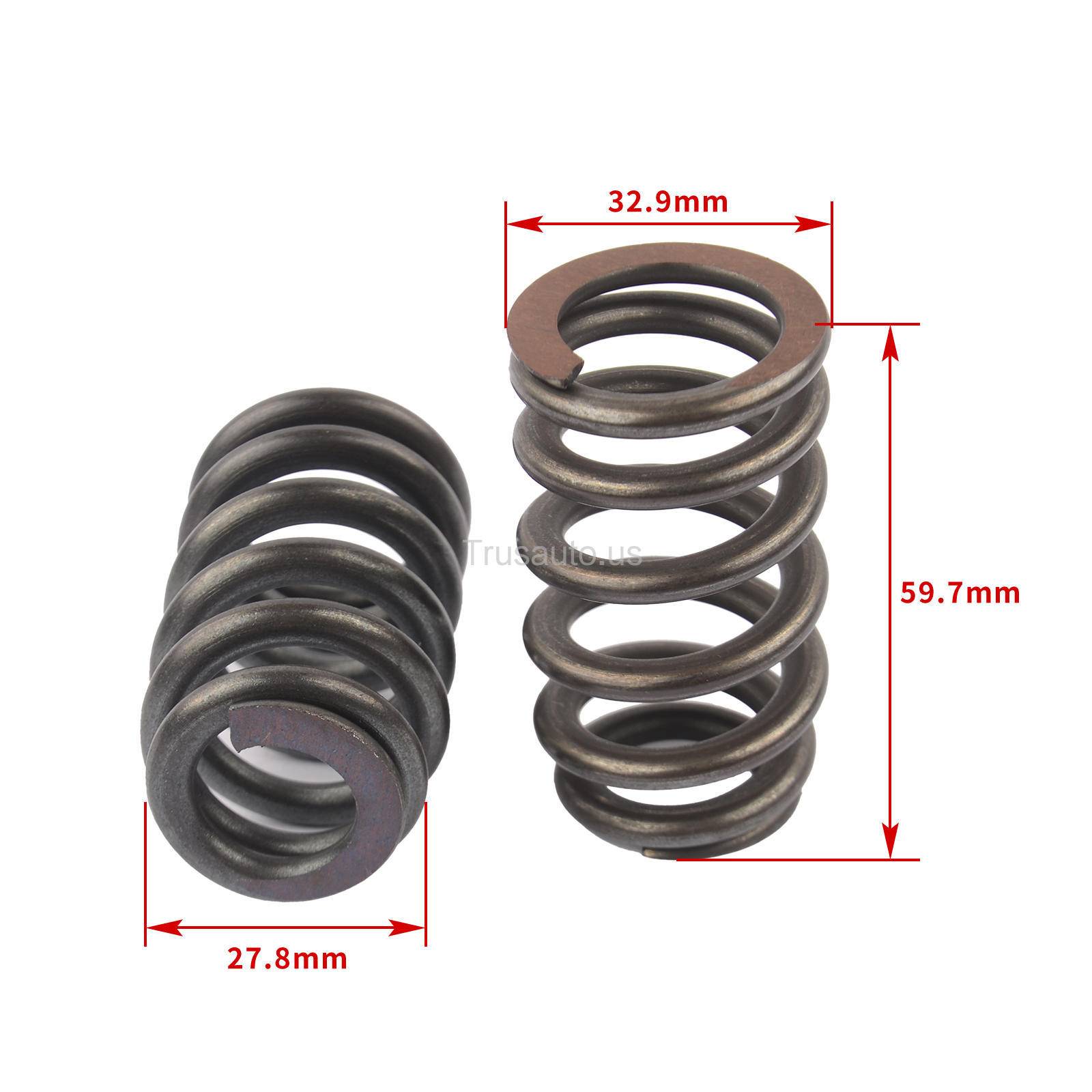

Outside Diameter of Outer Spring (in): 1.290 in.
Coil Bind Height (in): 1.140 in.
Damper Spring Included: No
Install Load: 130lbs
Install Height: 1.800"
Open Height: 1.175"
Open Load: 318 lbs
Spring Rate (lbs/in): 313 lbs./in.
Inside Diameter of Outer Spring (in): 0.885 in.
Valve Spring Style: Beehive
OEM Part Number:
600" Valve Spring Kit For LS1 LS2 LS3
Fit For the Following Models:
LS1, LS2, LS3, LS6, LS7, LS9 LSX Engines
1999-2002 Camaro & Firebird
2010-2013 Camaro
1999-2013 Corvette
2004-2006 Pontiac GTO
2004-2007 Cadillac CTS
2008-2009 Pontiac G8
2000-2013 Tahoe, Yukon, Escalade
2003-2009 H2 Hummer
2001-2013 Chevrolet Avlanche
1999-2013 Silverado & Sierra (4.8L, 5.3L, 6.0L)
Note: If you are uncertain about the compatibility, just send us your VIN. We will check it for you.
Package Includes:

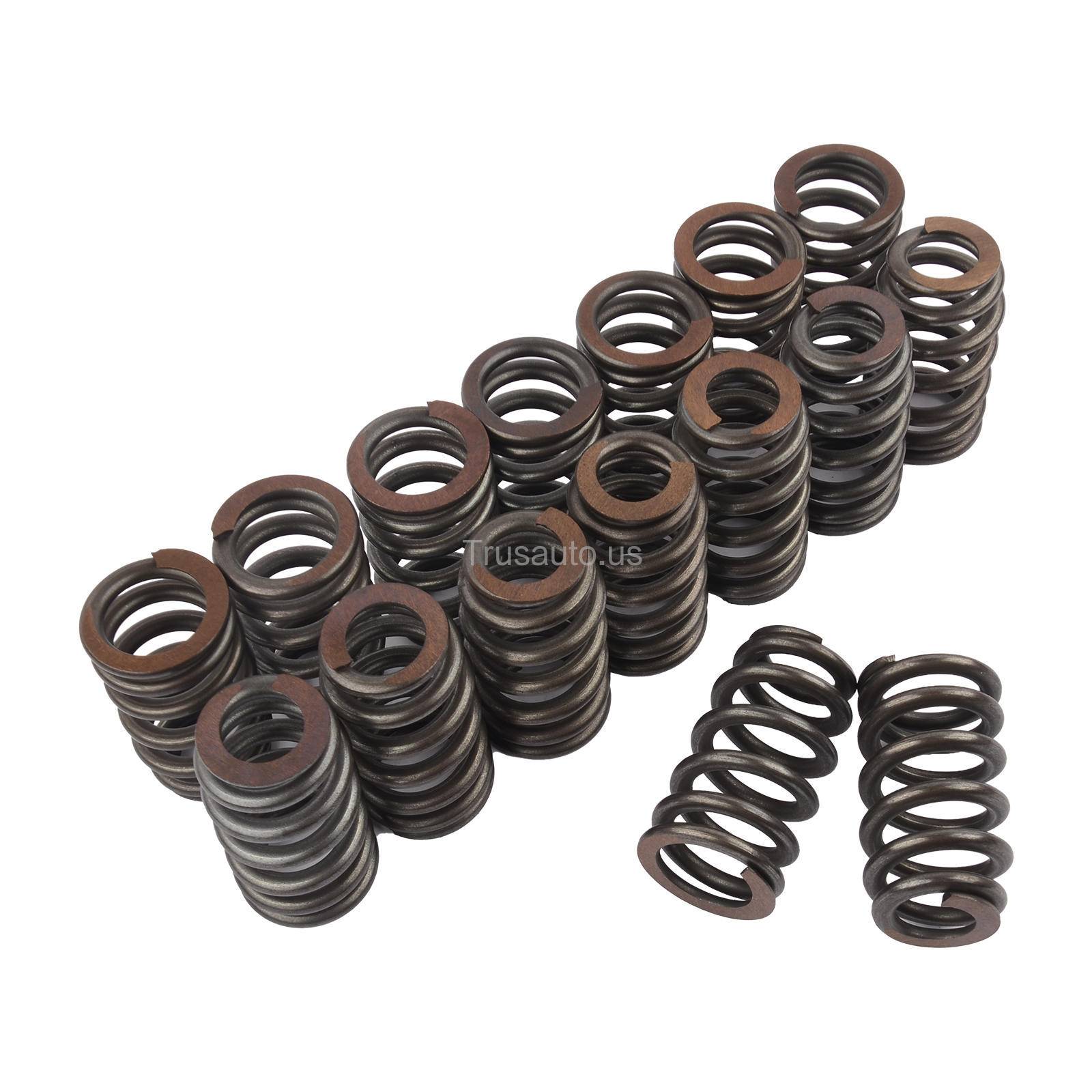

16× Valve Spring
