If the opening of the bracket that holds this motor is less than one inch (1"), this is the wrong motor and will not fit your machine.

If you grind the fins off to make it fit, you will not be refunded if the motor fails.

OE Number:

953-0912A, 924-0249B

724-0249B, 853-0912A

52423300

Fitment:

For ARIENS, CUB CADET. MTD, SNOWBOSS, WHITE, and YARDMAN SNOW BLOWERS.

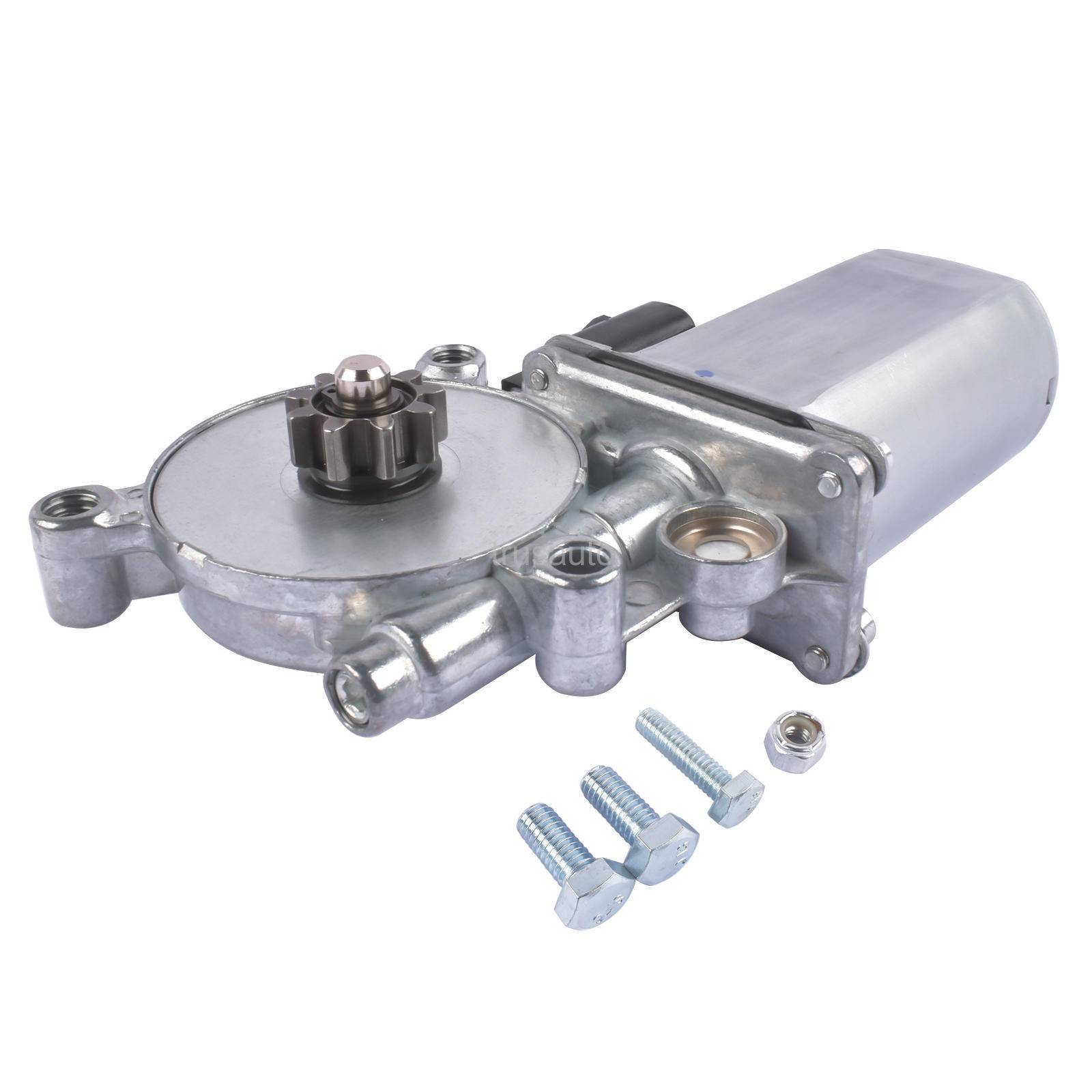

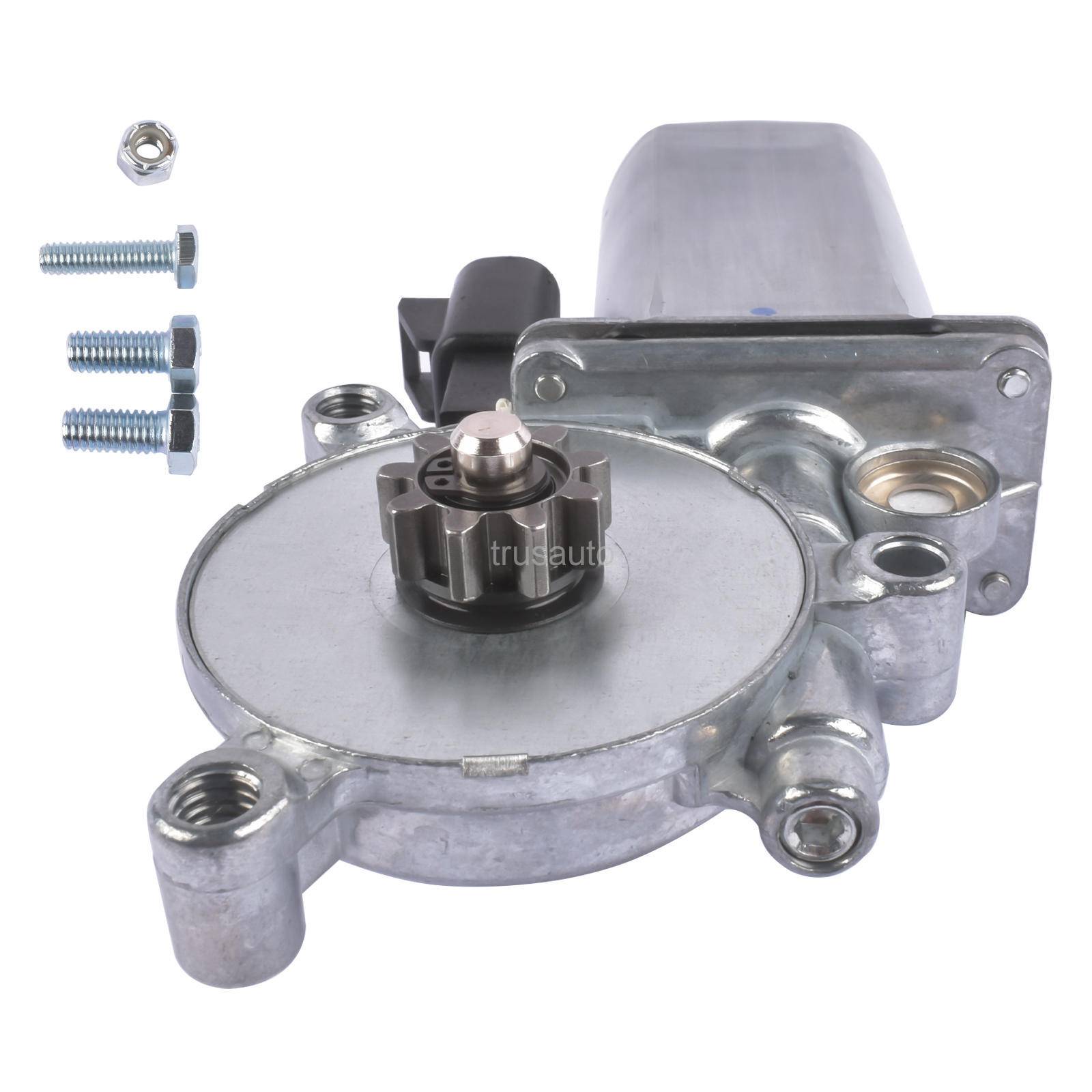

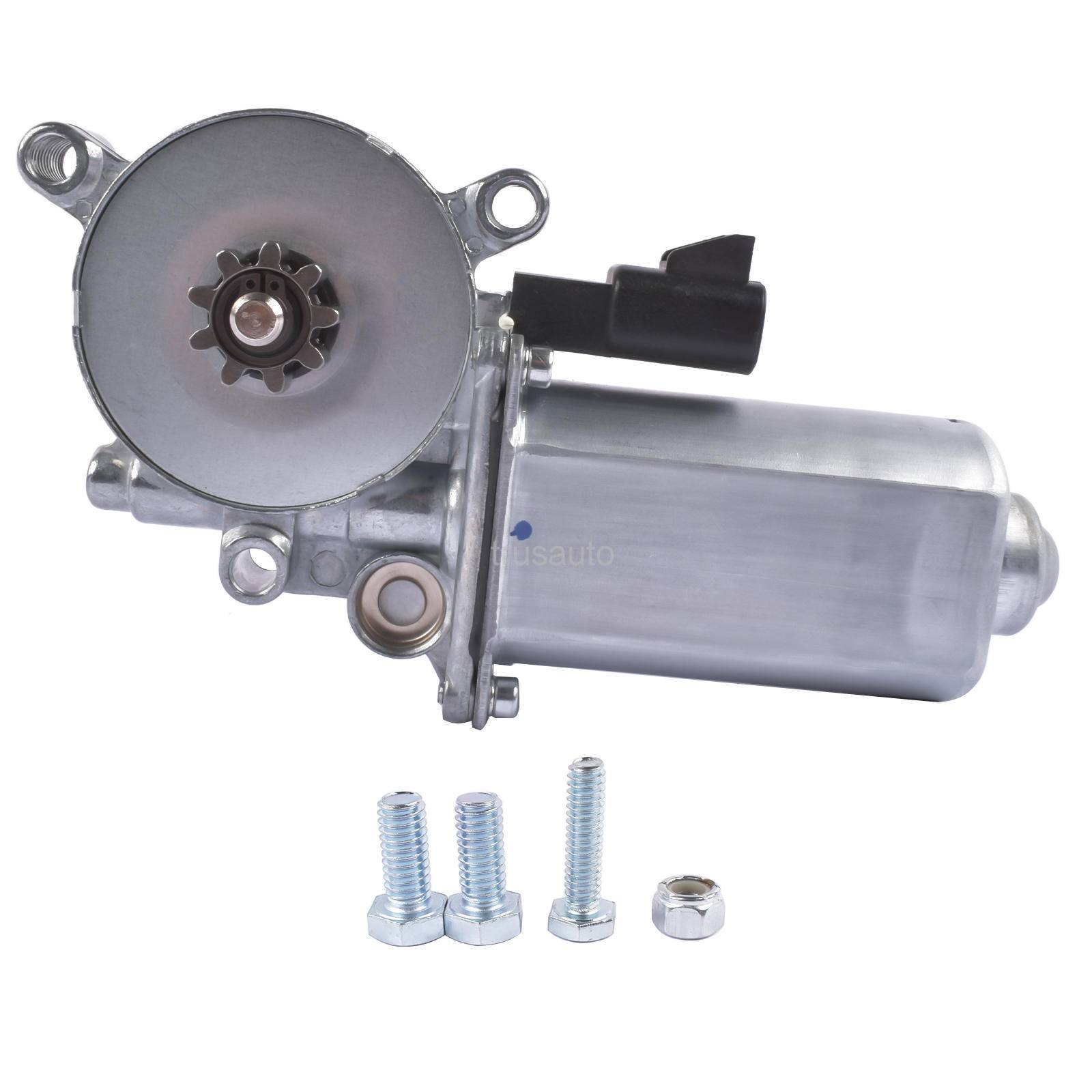

It is a 12 volt chute motor with a nine (9) tooth gear, and has the female receptor for the male waterproof electrical connector. Brand new bolts are supplied to replace the old and fatigued bolts that have probably been used since the machine was first purchased.

Another style of chute motors used on ARIENS, CUB CADET, SNOWBOSS, and WHITE SNOW BLOWERS was a universal motor that had a flat electrical connection and came with a universal electrical connector. Look for a bulge in the wiring harness. Most of these assemblies came with heat shrink tubing to go around the old connector where two wires were inserted into the original connection. Check to see if the original connection has a waterproof male connection.

This motor is made for those snowblowers that have a one (1) inch opening in the mounting plate. If the opening is smaller than 1", this motor will not fit.
