Parameters
Part Type
replacement
Manufacturer Part Number
404-000, Air Conditioning Kit
Interchange Part Number
a/c kit universal 12v, a/c kit universal 12v
Compatibility
| Make | Model | Year | Trim | Engine | Notes |
|---|---|---|---|---|---|
 No Data Yet | |||||
$ 432.00
Market Price: $518.40 0 People Puchased
Free Delivery

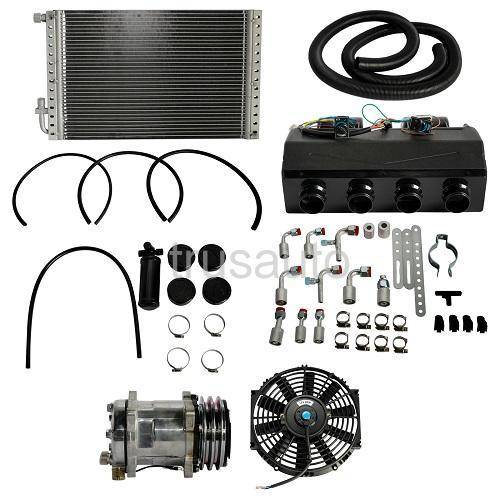

A/C KIT UNIVERSAL UNDER DASH EVAPORATOR 404-000 HEAT AND COOL
Quantity:
-
+
If you have a large demand for this product, please send an email to sale@trusauto.us, and we will contact you as soon as possible.
Expected shipping date : Shipped on the second business day.
Shipping cost : For shipping within the United States, most regions are eligible for free delivery, with only a few remote areas subject to pricing based on specific shipping rules.
Return : 60 days returns. Buyer pays for return shipping.
Protection : within 2 years.
$ 432.00
Market Price: $518.40 0 People Puchased
Free Delivery
A/C KIT UNIVERSAL UNDER DASH EVAPORATOR 404-000 HEAT AND COOL
Quantity:
-
+
If you have a large demand for this product, please send an email to sale@trusauto.us, and we will contact you as soon as possible.
Specification
Model: E-404-000
32 pass 4way all aluminum coil
Expansion valve 1.5 Ton
Thermostat and rotative 3-speed blower switch
12 VOLTS DOUBLE SHALF BLOWER MOTOR
12700BTU capacity 359 CFM
Compressor
Model: C5H142A12V SD508 5H14
Sanden Style 2A Groove Pulley 12v coil
Also available 8PK Pulley
Condenser
Model: CPF142018
PARALLEL FLOW (micro-tube technology)
14"H X 20"L .70"(18mm)W
4 Rails Aluminum
#8 O-ring IN #6 O-ring OUT
Hoses Set
Model: H6516,H81332, H1012
A/C HOSE
#6 5/16 = 6'feet
#8 13/32 = 4'feet
#10 1/2 = 5' feet
Fitting Set
Model: FTSET404
1-N° 10 90° O-ring Fitting w/R134a Serv Port
1- N° 8 90° O-ring Fitting w/R134a Serv Port
1- N° 10 Straight O-ring Fitting
1- N° 10 90° O-ring Fitting
2- N° 6 90° O-ring Fitting
1- N° 8 90° O-ring Fitting
2- N° 6 Straight O-ring Fitting
Set include metal FERRULES and CLAMPS
Filter Drier
Model: FD100A ALUMINUM
Model: FD100B BLACK
2½"Diameter 7½"Hight Sight Glass
#6 ⅜ X ⅜ O-ring connections both sides
Condenser Fan
Model: CF1212
12" Diameter
12 Volts 80W 6 AMP
Reversible Puller or Pusher
4 Mounting Brackets included
