Parameters
Part Type
replacement
Manufacturer Part Number
800804009 800804008 FEM-502-12FO FEM-501-12FO
Interchange Part Number
800804009 800804008 FEM-502-12FO FEM-501-12FO
Compatibility
| Make | Model | Year | Trim | Engine | Notes |
|---|---|---|---|---|---|
 No Data Yet | |||||
$ 28.80
Market Price: $32.26 0 People Puchased
Free Delivery

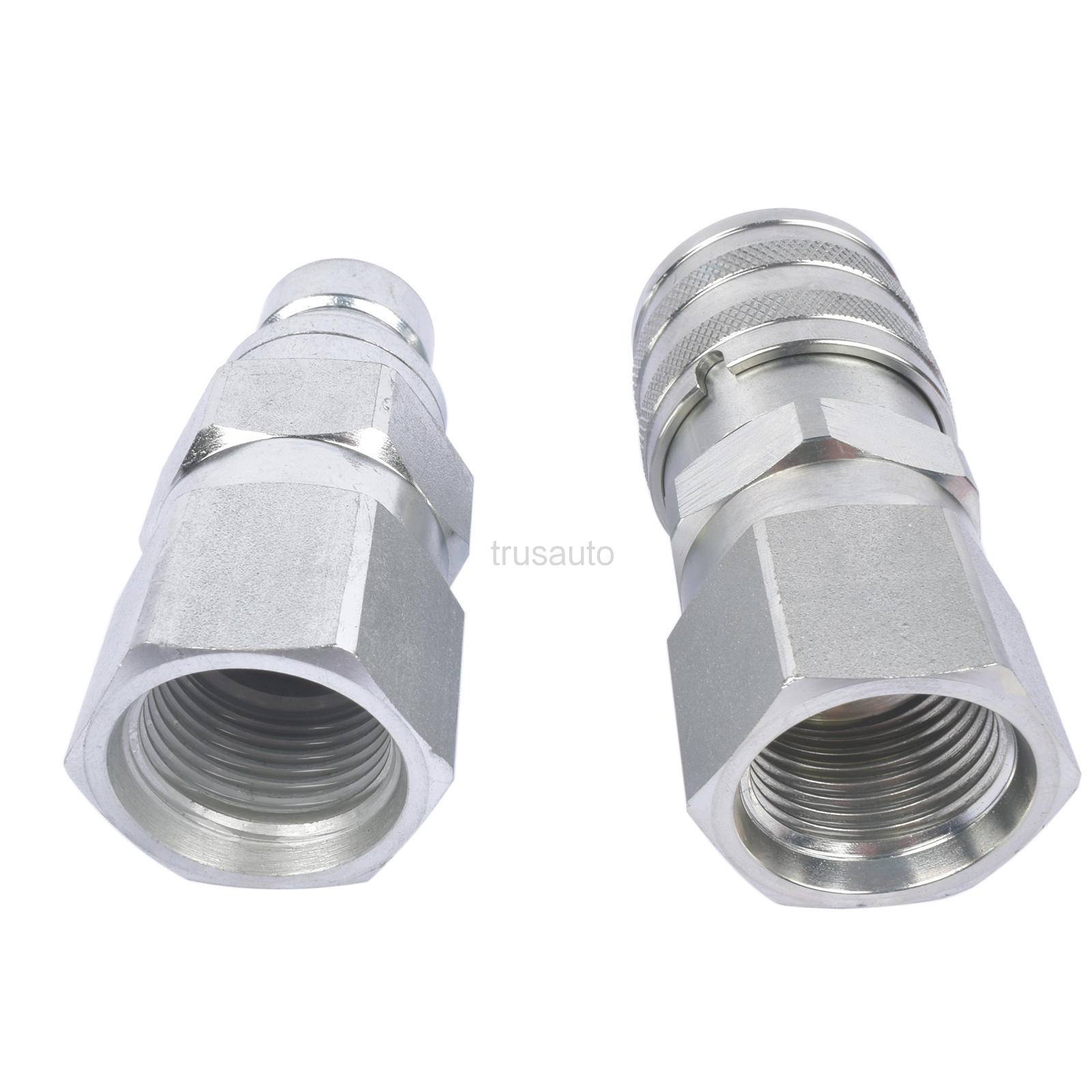

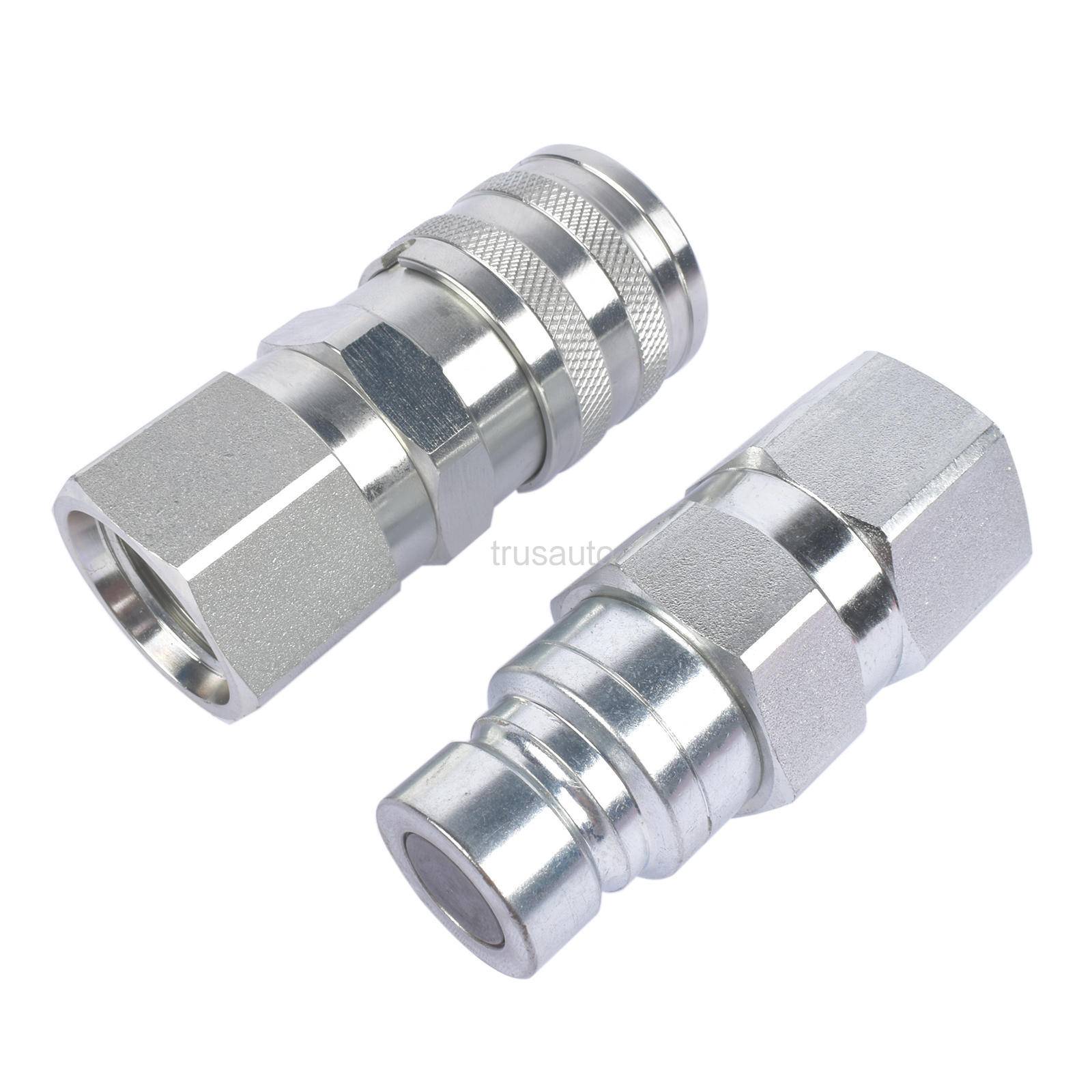

Flat Face Hydraulic Quick Connect Couplers Skid Steer Set 3/4'' SAE for Bobcat
Quantity:
-
+
If you have a large demand for this product, please send an email to sale@trusauto.us, and we will contact you as soon as possible.
Expected shipping date : Shipped on the second business day.
Shipping cost : For shipping within the United States, most regions are eligible for free delivery, with only a few remote areas subject to pricing based on specific shipping rules.
Return : 60 days returns. Buyer pays for return shipping.
Protection : within 2 years.
$ 28.80
Market Price: $32.26 0 People Puchased
Free Delivery
Flat Face Hydraulic Quick Connect Couplers Skid Steer Set 3/4'' SAE for Bobcat
Quantity:
-
+
If you have a large demand for this product, please send an email to sale@trusauto.us, and we will contact you as soon as possible.
OE Number
Parker FE Series FEM-502-12FO, FEM-501-12FO
Safeway FFE49 Series FFE491-4-12, FFE495-4-12
Faster FFH Series FFH08 34SAE M, FFH08 34SAE F
Eaton Aeroquip FD89 FD89-1004-12-08, FD89-1005-12-08
Snap Tite 74 Series 74N8-12EM, 74C8-12EM
Stucchi FIRG Series 800804009, 800804008
Dixon HT Series HT4OF6, 4HTOF6
DNP PLT4 Series FF-HPG-08-12N-SAE, FF-HPG-08-12C-SAE
Tomco FE Series EP4-12, EC4-12
Feature
Body Size(in)：1/2 (04) ISO12.5
Thread Size: 3/4'' SAE-12 UNF1-1/16 ORB
Rated Pressure(PSI): 5000 PSI
Rated Flow(GPM): 12 GPM
Spillage (ML): 0.02ML
Standard seal material: NBR
Temperature Range: -20℉ to 245℉
Interchange with Other Quick Coupler Made to ISO16028 Standard
Will fit Following Models
Bobcat (2001 or older): 7753, 773, 863, 873, 963
John Deere: 325, 328, 332
GEHL: 4640, 4840, 5640, 6640
Volvo: MC90, MC110
ASV: RC100
