Package List

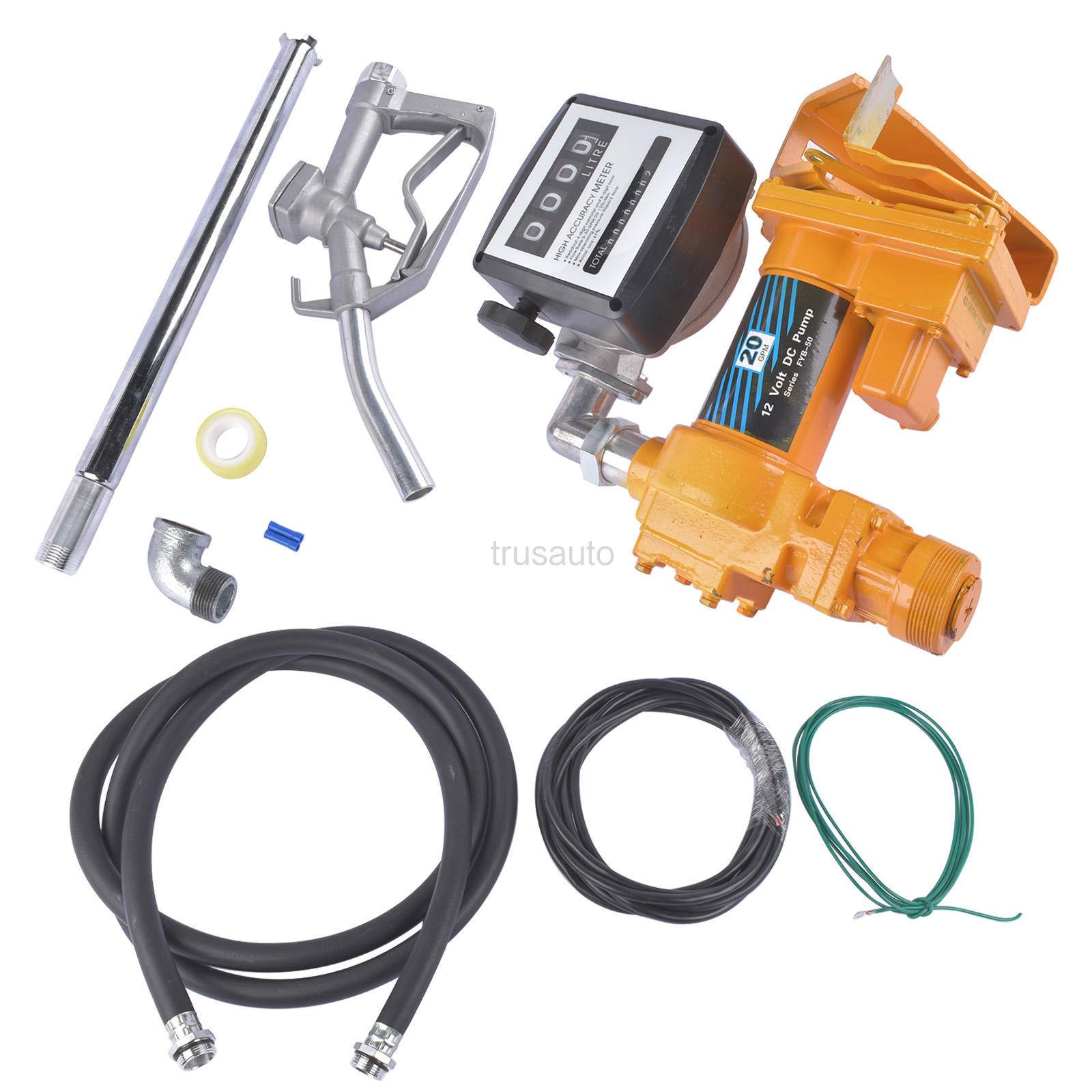

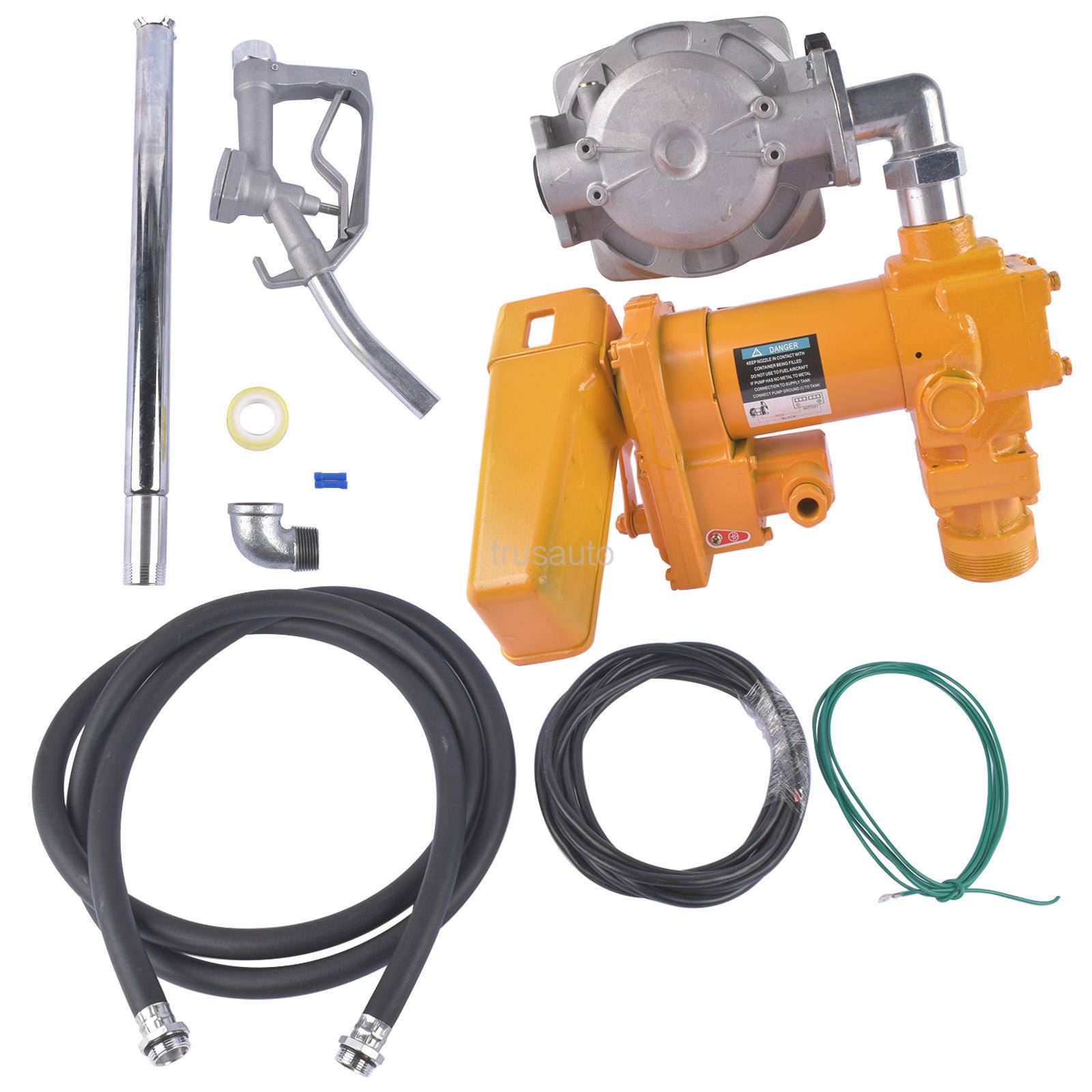

1* 20GPM 12V Yellow Fuel Transfer Pump with Discharge Hose & Manual Nozzle + Fuel Flow Meter (As Pics Shown)

Description【Multi-function】- This transfer pump provides safer and more efficient transportation of gasoline, diesel, kerosene, bio-diesel and similar fuels or oils. Suitable for lawn tractors, boats, motor boats, snowmobiles and trimmers, etc.

【Overheat Protection】- Fuel Transfer Pump is sealed with an explosion-proof permanent magnet motor and has thermal overload protection. The compact size makes it easy to install, operate and maintain.

【High Performance】- Offering a secure copper-forged pump head for both DC 12V or 24V, ensuring enhanced safety. Designed for 12V battery powered bung mounted transferring from fuel tanks on trailers or trucks, this fuel pump will pull fuel at tank depths of 8 ft. and discharge fuel up to heights of 37 ft.

【Good Quality】- This Fuel Transfer Pump body is made of cast iron, which is sturdy and durable. The pump body adopts a waterproof design, and the pump has a built-in filter and a bypass valve. The ball bearing structure does not require lubrication.

【Easy Installation】- Come with 1"Mechanical Fuel Flow Meter 4-Digital Batch Display OE# FM-120-2 for All Gasoline Kerosene Diesel Fuel Transfer Pump. Made in quality materials, and we tested each one before shipping, so easy to install.

【Attention】- 1. Please make sure the wired motor is fully charged before use for better work (if the power is too low, the product may not be able to reach the normal working efficiency) ; 2. If your pump stops working during use, this may be due to the motor overheating and triggering the protection mechanism, please make sure that the wired motor is fully charged, and then try to restart it after 15 minutes of cooling.

Product Details

Safety Information

WARNING! Electrical wiring should be performed ONLY by a licensed electrician in compliance with local, state, and national electrical code NEC/ANSI/ NFPA 70, NFPA 30, and NFPA 30A, as appropriate to the intended use of the pump. Threaded rigid conduit, sealed fittings, and conductor seal should be used where applicable. The pump must be properly grounded. Improper installation or use of this pump can result in serious bodily injury, or death!

WARNING! To ensure safe and proper operation of your equipment, it is critical to read and adhere to all of the following safety warnings and precautions. Improper installation or use of this product can cause serious bodily injury or death!

NEVER smoke near the pump, or use the pump near open flames when pumping a flammable liquid! Fire can result!

A filter should be used on the pump outlet to ensure no foreign material is transferred to the fuel tank.

Threaded pipe joints and connections must be sealed with the appropriate sealant or sealant tape to minimize the possibility of leaks.

Storage tanks must be securely anchored to prevent shifting or tipping when full or empty.

To minimize static electricity build up, use only static wire conductive hose when pumping flammable fluids, and keep the fill nozzle in contact with the container being filled during the filling process.

The pump motor is equipped with thermal overload protection; if overheated, the motor will shut off to prevent damage to the windings.

WARNING! This product shall not be used to transfer fluids into any type of aircraft.

WARNING! This product is not suited for use with fluids intended for human consumption or fluids containing water.
