Parameters
Part Type
replacement
Manufacturer Part Number
101-1007-009, 1011007009, 101-1007, 1011007
Interchange Part Number
101-1007-009, 1011007009, 101-1007, 1011007
Compatibility
| Make | Model | Year | Trim | Engine | Notes |
|---|---|---|---|---|---|
 No Data Yet | |||||
$ 121.50
Market Price: $130.01 0 People Puchased
Free Delivery
Hydraulic Motor for Eaton Char-Lynn H Series 101-1007-009, 101-1007, 101-1555
Quantity:
-
+
If you have a large demand for this product, please send an email to sale@trusauto.us, and we will contact you as soon as possible.
Expected shipping date : Shipped on the second business day.
Shipping cost : For shipping within the United States, most regions are eligible for free delivery, with only a few remote areas subject to pricing based on specific shipping rules.
Return : 60 days returns. Buyer pays for return shipping.
Protection : within 2 years.
$ 121.50
Market Price: $130.01 0 People Puchased
Free Delivery
Hydraulic Motor for Eaton Char-Lynn H Series 101-1007-009, 101-1007, 101-1555
Quantity:
-
+
If you have a large demand for this product, please send an email to sale@trusauto.us, and we will contact you as soon as possible.

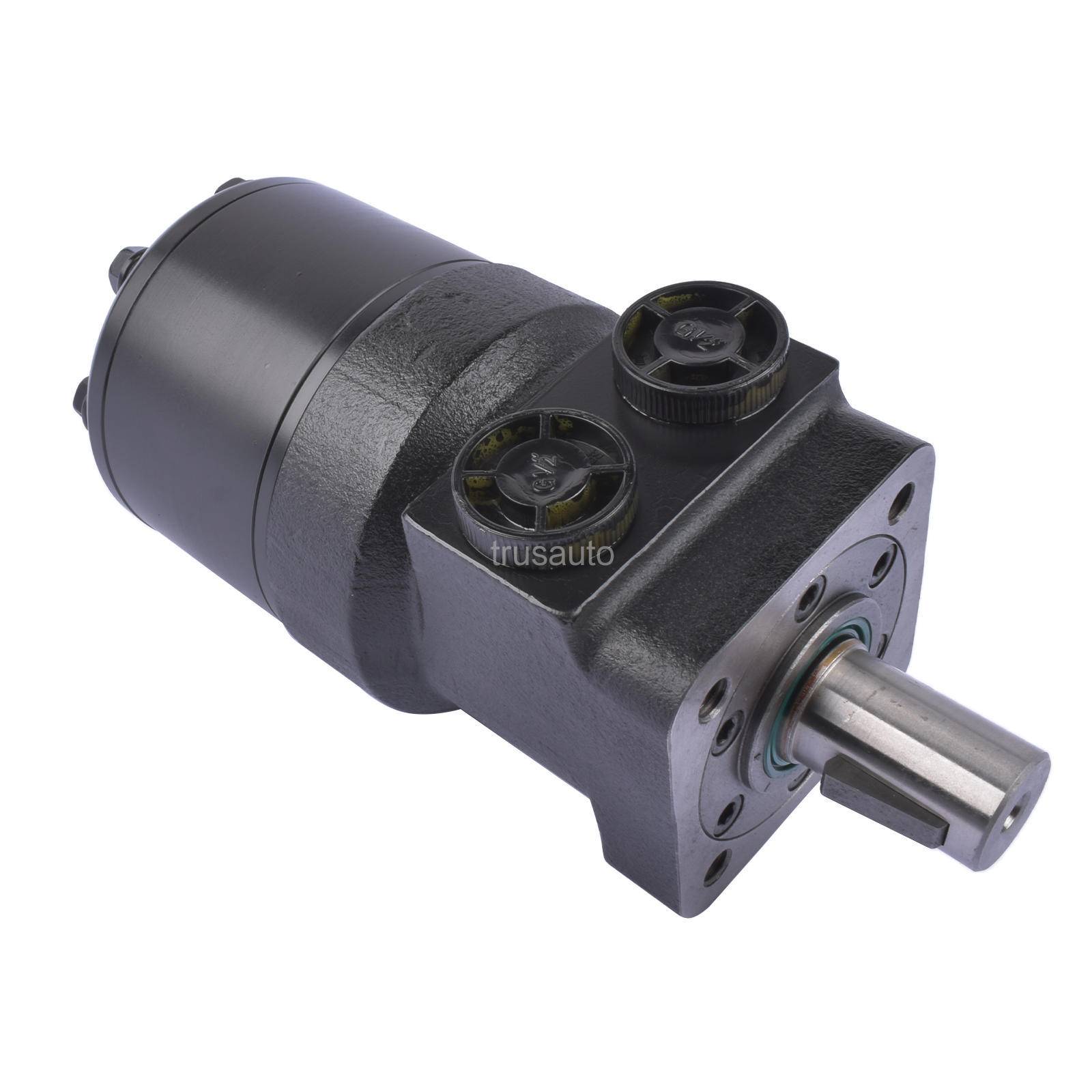

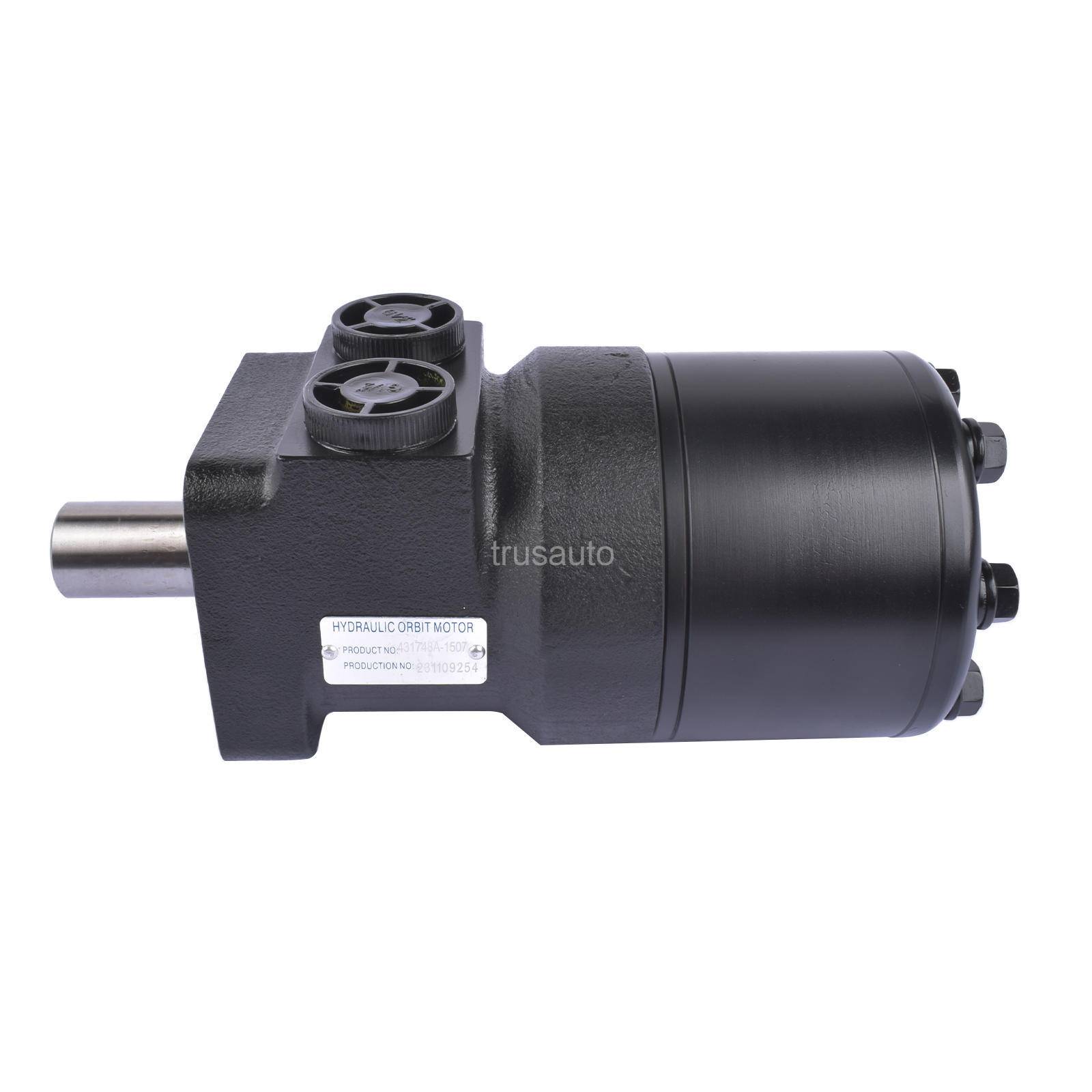

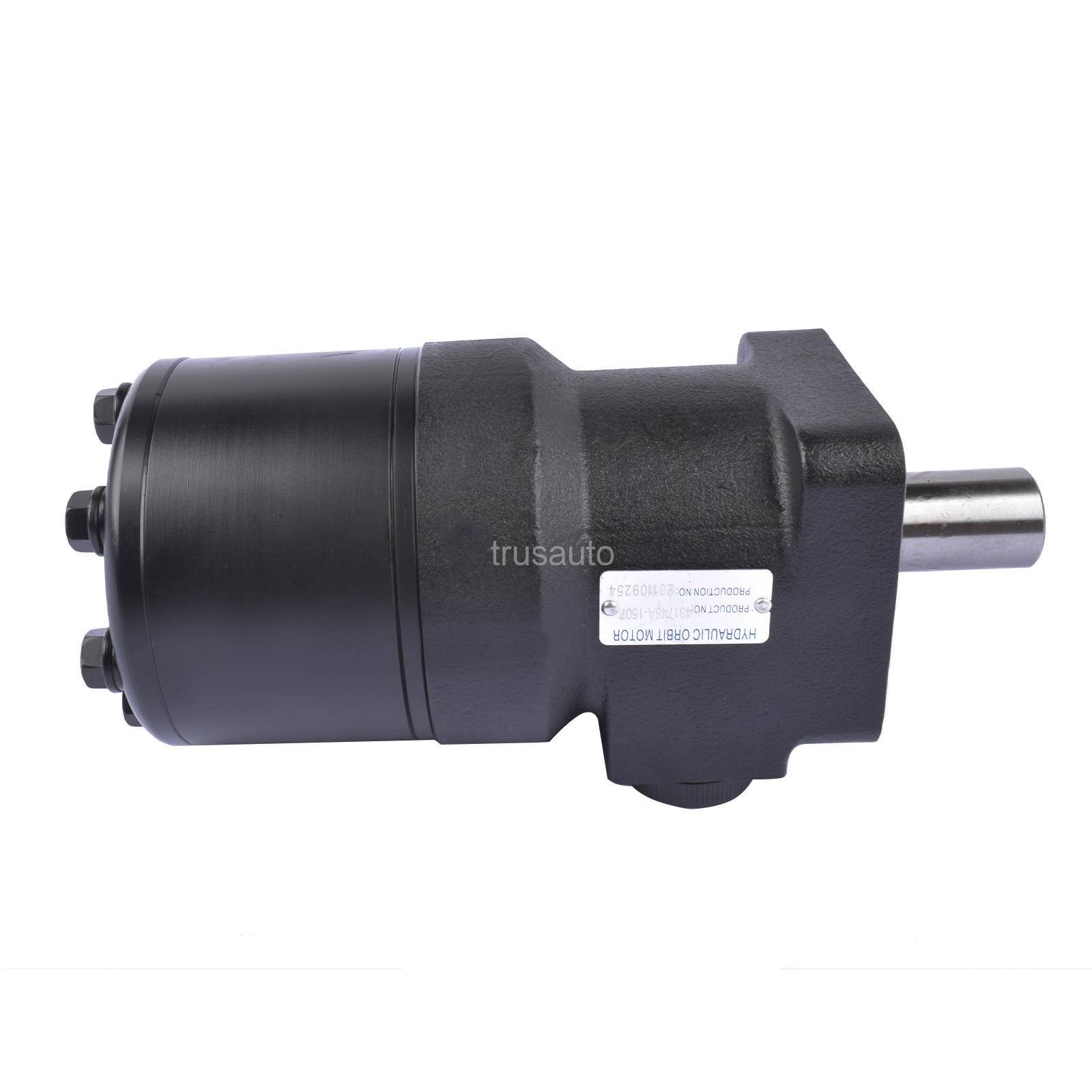

Hydraulic Motor for Eaton Char-Lynn H Series 101-1007-009, 101-1007, 101-1555
OEM Part Number
101-1007-009,1011007009
101-1007,1011007
101-1555, 1011555
Fit for The Following Models
Fit for Eaton Char-Lynn: H Series
Specifications:
Product No.: 101-1007-009
Color: Black
Material: Cast Iron
Installation Method: 4 Flange Holes
Viscosity: 37-73cSt
Filtering Accuracy: ISO18/13
Max. Speed: 200RPM
Max. Torque: 400N. m
Max. Flow Rate: 57L/Min/15Gal/Min
Max. Pressure: 9Mpa
Displacement: 300CC
Recommended Anti-Wear Hydraulic Shaft: No. 68
Working Temperature: Within 80℃/176℉
Max. Back Pressure: 5 MPa
Product Height: 19.5cm/7.7in
Packaging Size: 26*13*13cm/10.2*5.1*5.1in
Gross Weight: 9.5kg/20.94lbs
Features
Build to Last: Cast iron makes the whole product have high resistance to corrosion, wear, and heat, and not easy to rust so that it can remain beautiful and practical for a long time.
Good Sealing: The high-pressure sealing ring can effectively prevent oil leakage, not only ensuring a smooth use process but also saving you costs.
Excellent Pressure Resistance: This product can withstand a maximum back pressure of 5 Mpa and a maximum pressure of 9 Mpa, and even in harsh environments, it still has good working ability.
Careful Design: The high-quality ball bearings make the product have a strong radial force and high-pressure resistance, so you can use it safely.
Simple to Use: The one-piece structure allows you to use the product directly without an additional assembly.
Effortless Cleaning: The smooth surface and simple structure allow you to remove dust and residues with a towel easily.
