Parameters
Part Type
replacement
Manufacturer Part Number
5494878RX, 5494878, 68445522AA, 68481772AA
Interchange Part Number
5494878RX 5494878
Compatibility
| Make | Model | Year | Trim | Engine | Notes |
|---|---|---|---|---|---|
 No Data Yet | |||||
$ 225.00
Market Price: $240.75 0 People Puchased
Free Delivery

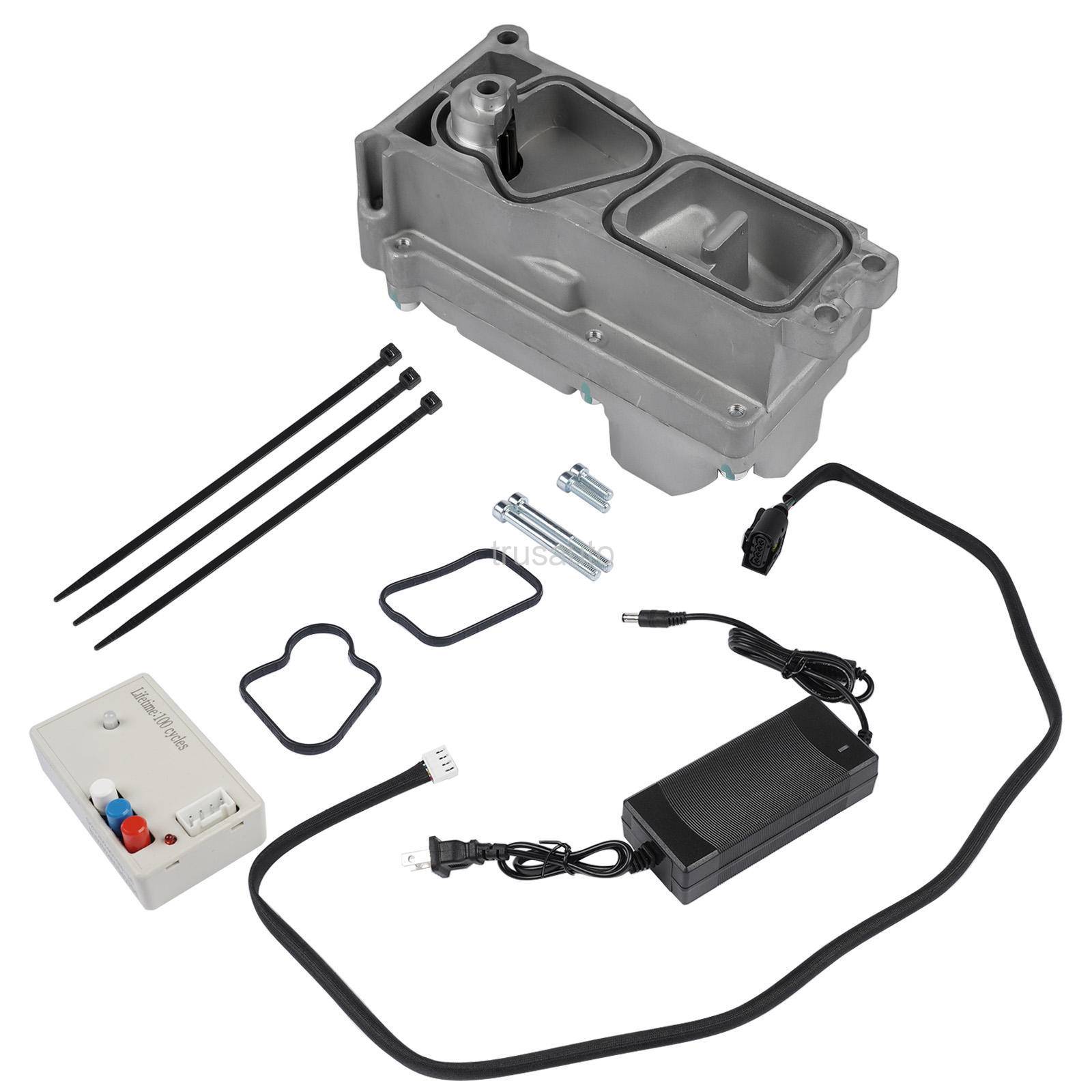

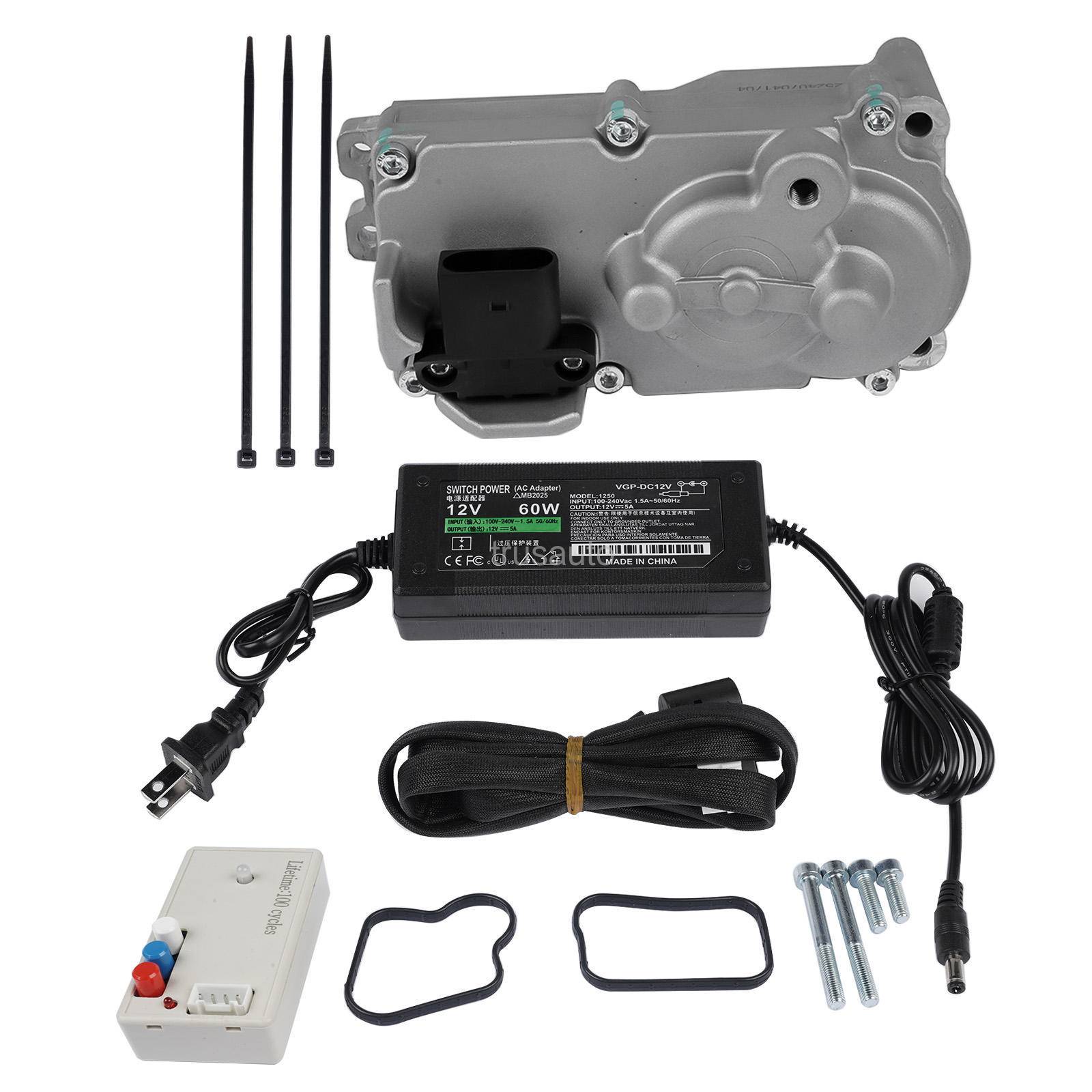

Turbo Actuator & Calibration for Dodge Ram 3500 4500 5500 6.7L Turbo 68445522AA
Quantity:
-
+
If you have a large demand for this product, please send an email to sale@trusauto.us, and we will contact you as soon as possible.
Expected shipping date : Shipped on the second business day.
Shipping cost : For shipping within the United States, most regions are eligible for free delivery, with only a few remote areas subject to pricing based on specific shipping rules.
Return : 60 days returns. Buyer pays for return shipping.
Protection : within 2 years.
$ 225.00
Market Price: $240.75 0 People Puchased
Free Delivery
Turbo Actuator & Calibration for Dodge Ram 3500 4500 5500 6.7L Turbo 68445522AA
Quantity:
-
+
If you have a large demand for this product, please send an email to sale@trusauto.us, and we will contact you as soon as possible.
Fits For the Following:
Cummins Holset 6.7 Diesel HE300VG
6.7L Turbo I6 Diesel
RAM 2500 2013, 2014, 2015, 2016, 2017, 2018
RAM 3500 2013, 2014, 2015, 2016, 2017, 2018
RAM 4500 2013, 2014, 2015, 2016, 2017, 2018
RAM 5500 2013, 2014, 2015, 2016, 2017, 2018
Turbo OEM Number:
3787604 3781632 5601240NX, 3794756, 3775439, 3787608
3781633, 3779986, 3798539 37985, 3794758, 3775427
3787607, 3781755, 3779987 5326054, 3781754, 3775426
3779989, 3784573, 3784574, 68307025AA, 3798575
5326054, 5326057, 5327046 532704600, 532704600HX
5459710RX, 68210648AA, 68212738AA, 68245792AA
68253983AA, 68295438AA, 68297874AA, 68321377AA,68445522AA
Turbo Actuator Calibration Tool:
Operating voltage: 8-28V,According to the actuator supply voltage
to determine(Usually 12V or 24V)
Operating temperature: -40~125°.
Human-machine interface: 3 switches, 1 status lamp, 1 Display
panel.
Calibration method(Holset)
Condition 1▬ Actuator had been removed from turbo Calibration Step:
press IP Key->Assemble the Actuator with turbo and then-> press IC Key
Condition 2▬ Actuator had been calibrated and assembled with turbo
Calibration Step:press IC Key
Warning: Before powering on the calibration box, ensure that the
actuator is properly connected to the calibration box
Warning: Any time when Reset key is pressed, make sure Actuator had
been removed from turbo, and then IP->IC
Warning: When IP success(digital tube display IP-S), make sure turbo
gear is in the left limitation location and then assemble
actuator. If not, calibration cannot success.
