Parameters
Part Type
replacement
Manufacturer Part Number
TD05 20G, For, 2.5L 2458CC H4 GAS DOHC Turbocharged, For 2.0L 1994CC H4 GAS DOHC Turbocharged, Turbo Charger, Turbo Model: TD05 20G
Interchange Part Number
TD05 20G, For, 2.5L 2458CC H4 GAS DOHC Turbocharged, For 2.0L 1994CC H4 GAS DOHC Turbocharged, Turbo Charger, Turbo Model: TD05 20G
Compatibility
| Make | Model | Year | Trim | Engine | Notes |
|---|---|---|---|---|---|
 No Data Yet | |||||
$ 122.40
Market Price: $133.42 0 People Puchased
Free Delivery
TD05-20G Turbo Turbocharger for Subaru Impreza WRX STI EJ20 EJ25 2002-2006
Quantity:
-
+
If you have a large demand for this product, please send an email to sale@trusauto.us, and we will contact you as soon as possible.
Expected shipping date : Shipped on the second business day.
Shipping cost : For shipping within the United States, most regions are eligible for free delivery, with only a few remote areas subject to pricing based on specific shipping rules.
Return : 60 days returns. Buyer pays for return shipping.
Protection : within 2 years.
$ 122.40
Market Price: $133.42 0 People Puchased
Free Delivery
TD05-20G Turbo Turbocharger for Subaru Impreza WRX STI EJ20 EJ25 2002-2006
Quantity:
-
+
If you have a large demand for this product, please send an email to sale@trusauto.us, and we will contact you as soon as possible.
OE Number
TD05-20G（420HP）,TD05 20G
Feature
Product Material
-Turbine housing ：Ductile iron QT450-10- temperature resistant up to 700℃
-Steel turbine wheel：K418 alloy - high oxidation stability and resistance up to 900℃
-Compressor housing：ZL104 aluminum with lightweight
-Compressor wheel/blades：Cast aluminium blades – superior air tightness & corrosion resistance
Product Performance
High-Speed oil seal ring and Precision clearance
Technology Advantage:
Advanced Actuator Tester/Programmer
Specification
Exhaust Outlet Flange:5-Bolt Flange
Exhaust Intlet Flange:3-Bolts Flange
Turbine Side:
Turbine Trim: 76.4
Turbine Housing: 7cm²
Turbine Inducer Diameter:56mm
Turbine Exducer Diameter: 48.96mm
Compressor Side:
Compressor Trim: 59.8
Compressor Inducer Diameter: 52.6mm
Compressor Exducer Diameter:67.9mm
Compressor Housing Inlet OD: 57.8mm
Oil Feed: M10*1.5
Oil Drain: 2*M6*1.0
Water In/Out: M14*1.5
Turbine housing: 7cm²
Compressor housing inlet OD: 57.8mm,ID:53.62mm
Compressor housing outlet OD: 51.2mm,ID:41.2mm
Bearing Type: Wet Float/Journal Bearing
Cooling Type: Water + Oil cooled
Turbo Model: TD05 20G
Thrust Bearing: 270 degree
Hosepower: Up to 420 HP
Turbo Type:Individual
Universal Fitment: No
Finish: Matte
Condition: 100% Brand New
Vehicle Information
For Subaru IMPREZA WRX / STI EJ20 EJ25 engine 2002 - 2006
For Subaru Impreza WRX Limited Sedan 4-Door
For Subaru Impreza WRX Limited Wagon 4-Door
For Subaru Impreza WRX Sedan 4-Door
For Subaru Impreza WRX STI Limited Sedan 4-Door
For Subaru Impreza WRX STI Sedan 4-Door
For Subaru Impreza WRX TR Sedan 4-Door
For Subaru Impreza WRX Wagon 4-Door
*Notice: All WRX Wagon engines and automatic sedan engines came with a TD04,all manual WRX sedans including STI versions had a TD05 model. If your original turbo is TD04 model, some modification(connections, bolts, fixed screws etc.) is required.
Engine Number:
For 2.5L 2458CC H4 GAS DOHC Turbocharged
For 2.0L 1994CC H4 GAS DOHC Turbocharged

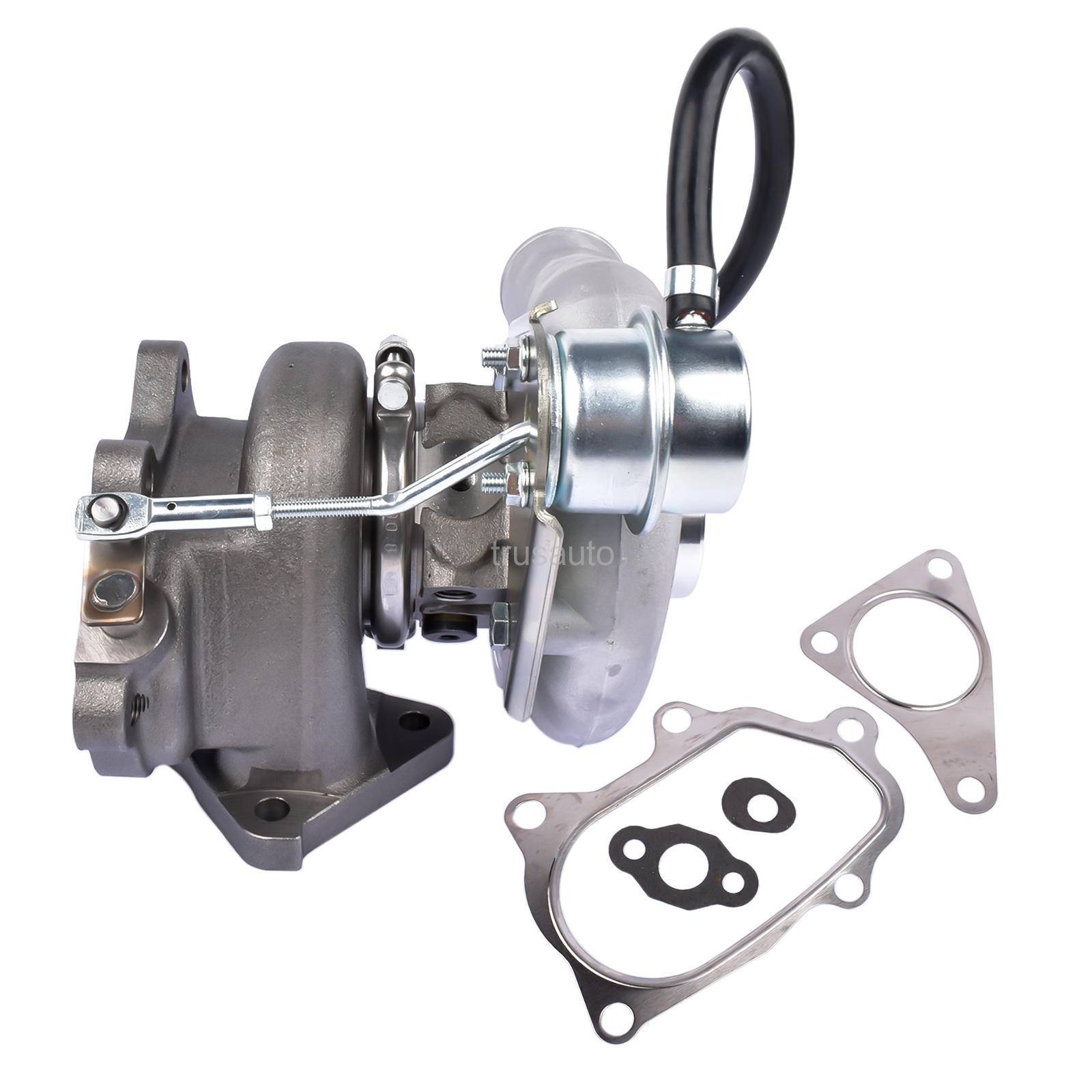

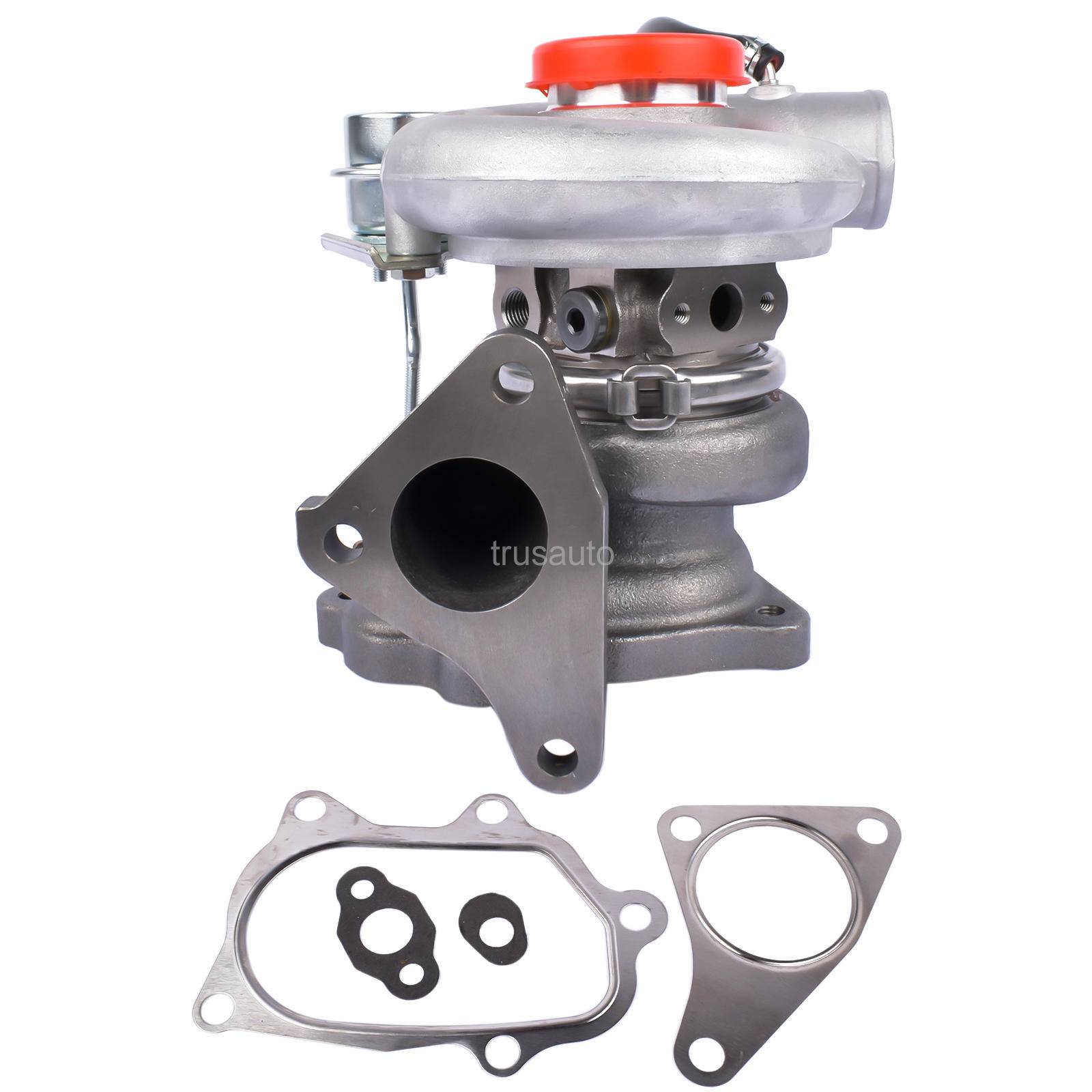

Package included
As pics shown
1xTurbocharger
2xFlange gaskets
4xOil/Water port gaskets
Note
* Please confirm your original fitment before Purchasing
* Professional installation is highly recommended
* Before installing the new turbocharger, the cause that led to the failure of the turbo must be analyzed and eliminated (e.g. insufficient oil supply, foreign bodies in the intake area, crankcase ventilation without function, etc.)!
