Package List

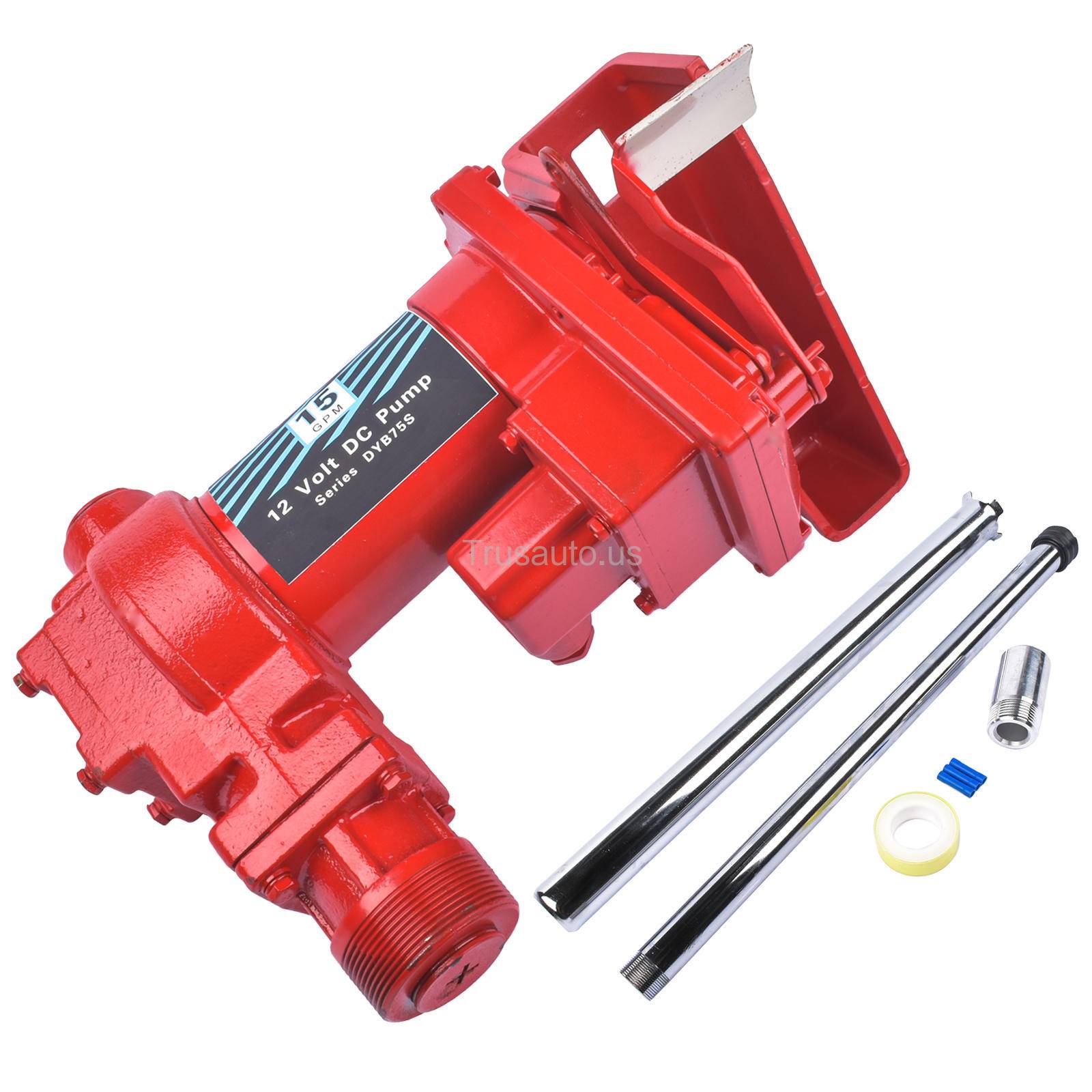

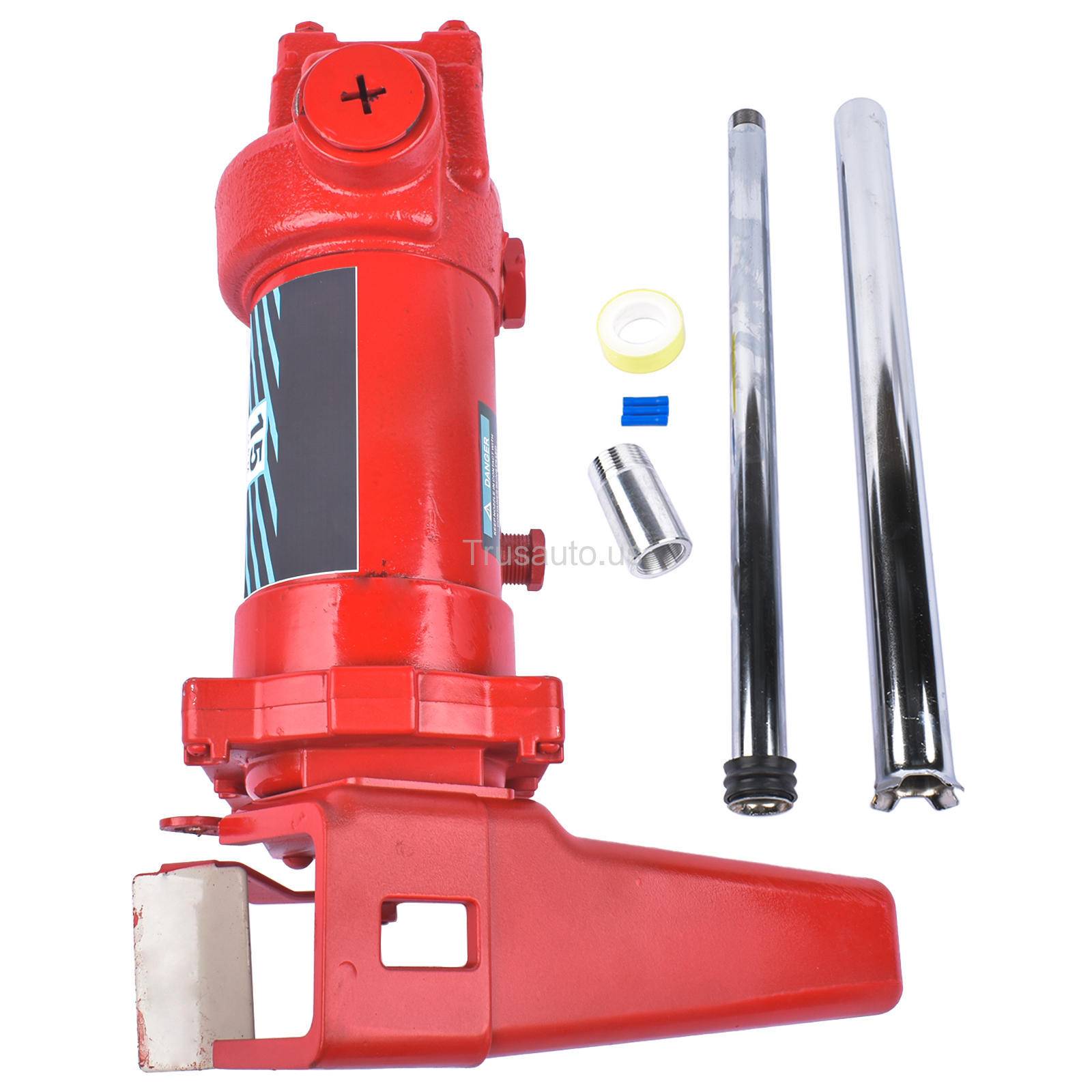

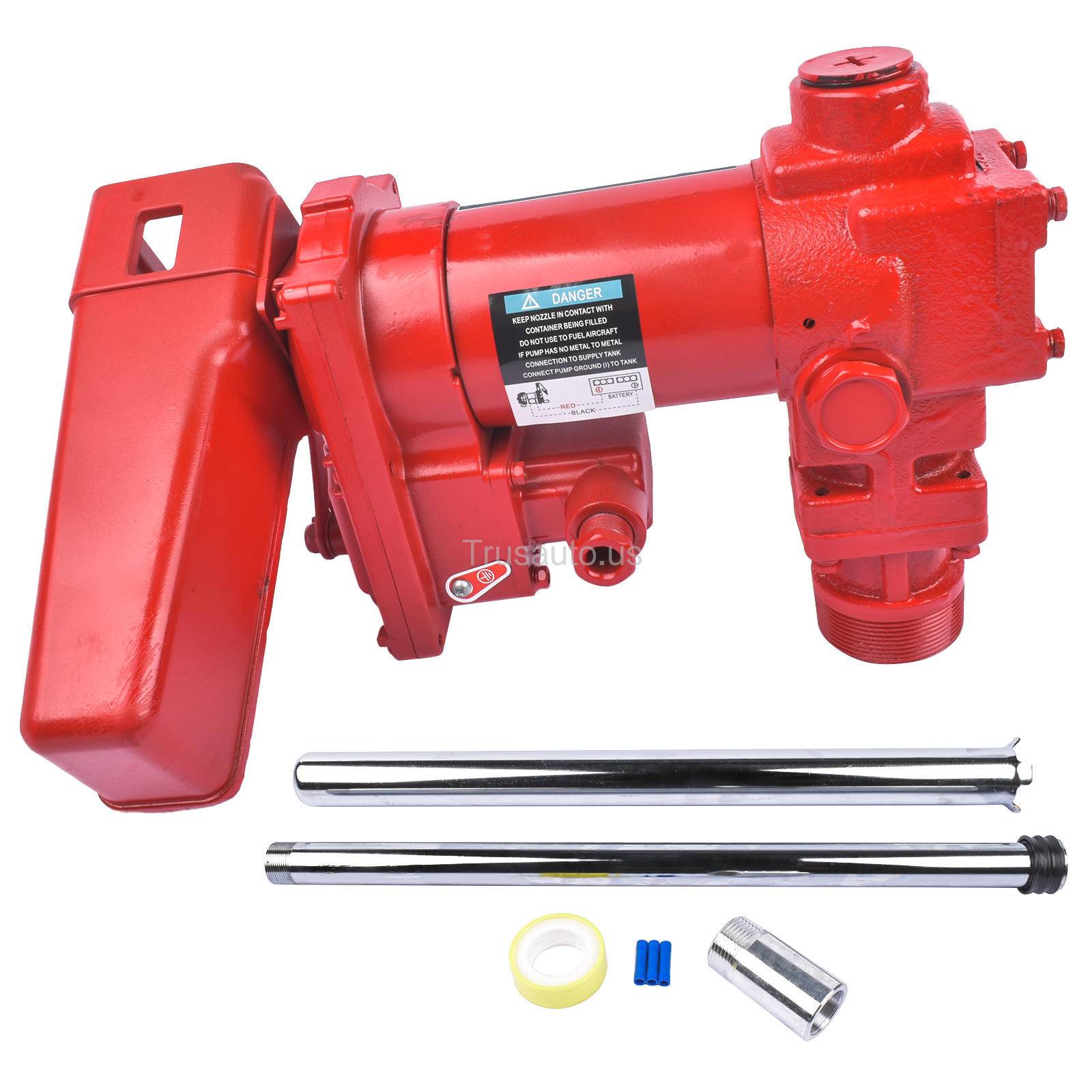

1*15 GPM 12V Fuel Transfer Pump DC Gasoline (with Fuel Line only)

Description

• [Multi-function] - This transfer pump can transfer gasoline, diesel, paraffin, biodiesel and similar fuels or oils more safely and efficiently. Suitable for lawn tractors, boats, motorboats, snowmobiles and trimmers, etc.
• [HIGH CAPACITY] - This industry-standard DC pump delivers up to 15 GPM (57 LPM) for more efficient refuelling. Designed for 12V battery-powered spigot fueling of trailer or truck tanks, this transfer pump can pump fuel up to 8 feet deep in the tank and discharge fuel up to 37 feet high.
• [Thermal Protection] - Designed to exceed the industry's most stringent safety standards, the pump features thermal overload protection to prevent the motor from overheating during abnormal use.
• [Application scope]- 15GPM 12V red fuel transfer pump is suitable for transferring gasoline, diesel, paraffin, mineral oil, heptane, hexane, E15, biodiesel and similar fuels or oils.
• [RELIABLE AND DURABLE PUMP] - Our petrol pumps are designed with ball bearings and require no lubrication. We offer a 1 year warranty on our fuel transfer pumps.

Specification

Safety Information

WARNING! Electrical wiring should be performed ONLY by a licensed electrician in compliance with local, state, and national electrical code NEC/ANSI/ NFPA 70, NFPA 30, and NFPA 30A, as appropriate to the intended use of the pump. Threaded rigid conduit, sealed fittings, and conductor seal should be used where applicable. The pump must be properly grounded. Improper installation or use of this pump can result in serious bodily injury, or death!

WARNING! To ensure safe and proper operation of your equipment, it is critical to read and adhere to all of the following safety warnings and precautions. Improper installation or use of this product can cause serious bodily injury or death!

NEVER smoke near the pump, or use the pump near open flames when pumping a flammable liquid! Fire can result!

A filter should be used on the pump outlet to ensure no foreign material is transferred to the fuel tank.

Threaded pipe joints and connections must be sealed with the appropriate sealant or sealant tape to minimize the possibility of leaks.

Storage tanks must be securely anchored to prevent shifting or tipping when full or empty.

To minimize static electricity build up, use only static wire conductive hose when pumping flammable fluids, and keep the fill nozzle in contact with the container being filled during the filling process.

The pump motor is equipped with thermal overload protection; if overheated, the motor will shut off to prevent damage to the windings.

WARNING! This product shall not be used to transfer fluids into any type of aircraft.

WARNING! This product is not suited for use with fluids intended for human consumption or fluids containing water.
