Parameters
Part Type
replacement
Manufacturer Part Number
4005001010, TTPTDAS4005001010G, 4005001010X, 22801004, 10008469, ABS4005001010, ABS400-500-101-0, 400-500-101-0, WAB4005001010, WAB400-500-101-0, S4005001010, S400-500-101-0, GTAS4005001010, GTAS400-500-101-0, ABS5344, ABSR955344, 1ABS00119, 43AVS402, 5344, ABS00119, GEN2-1010
Interchange Part Number
4005001010, TTPTDAS4005001010G, 4005001010X, 22801004, 10008469, ABS4005001010, ABS400-500-101-0, 400-500-101-0, WAB4005001010, WAB400-500-101-0, S4005001010, S400-500-101-0, GTAS4005001010, GTAS400-500-101-0, ABS5344, ABSR955344, 1ABS00119, 43AVS402, 5344, ABS00119, GEN2-1010
Compatibility
| Make | Model | Year | Trim | Engine | Notes |
|---|---|---|---|---|---|
 No Data Yet | |||||
$ 135.90
Market Price: $160.37 0 People Puchased
Free Delivery
ABS Relay Valve Fits for Electronic Control Unit Commercial Trucks 12V 22801004
Quantity:
-
+
If you have a large demand for this product, please send an email to sale@trusauto.us, and we will contact you as soon as possible.
Expected shipping date : Shipped on the second business day.
Shipping cost : For shipping within the United States, most regions are eligible for free delivery, with only a few remote areas subject to pricing based on specific shipping rules.
Return : 60 days returns. Buyer pays for return shipping.
Protection : within 2 years.
$ 135.90
Market Price: $160.37 0 People Puchased
Free Delivery
ABS Relay Valve Fits for Electronic Control Unit Commercial Trucks 12V 22801004
Quantity:
-
+
If you have a large demand for this product, please send an email to sale@trusauto.us, and we will contact you as soon as possible.

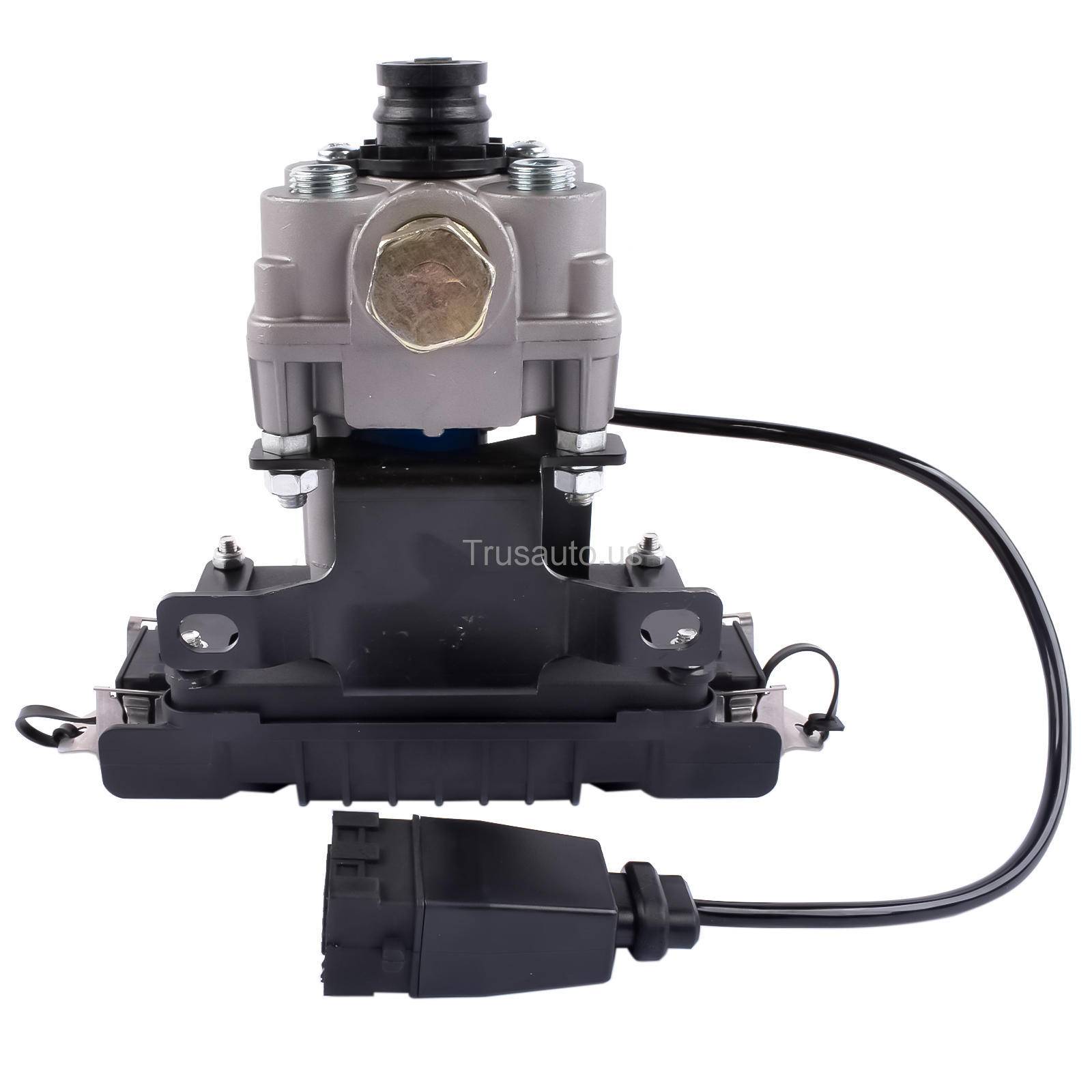

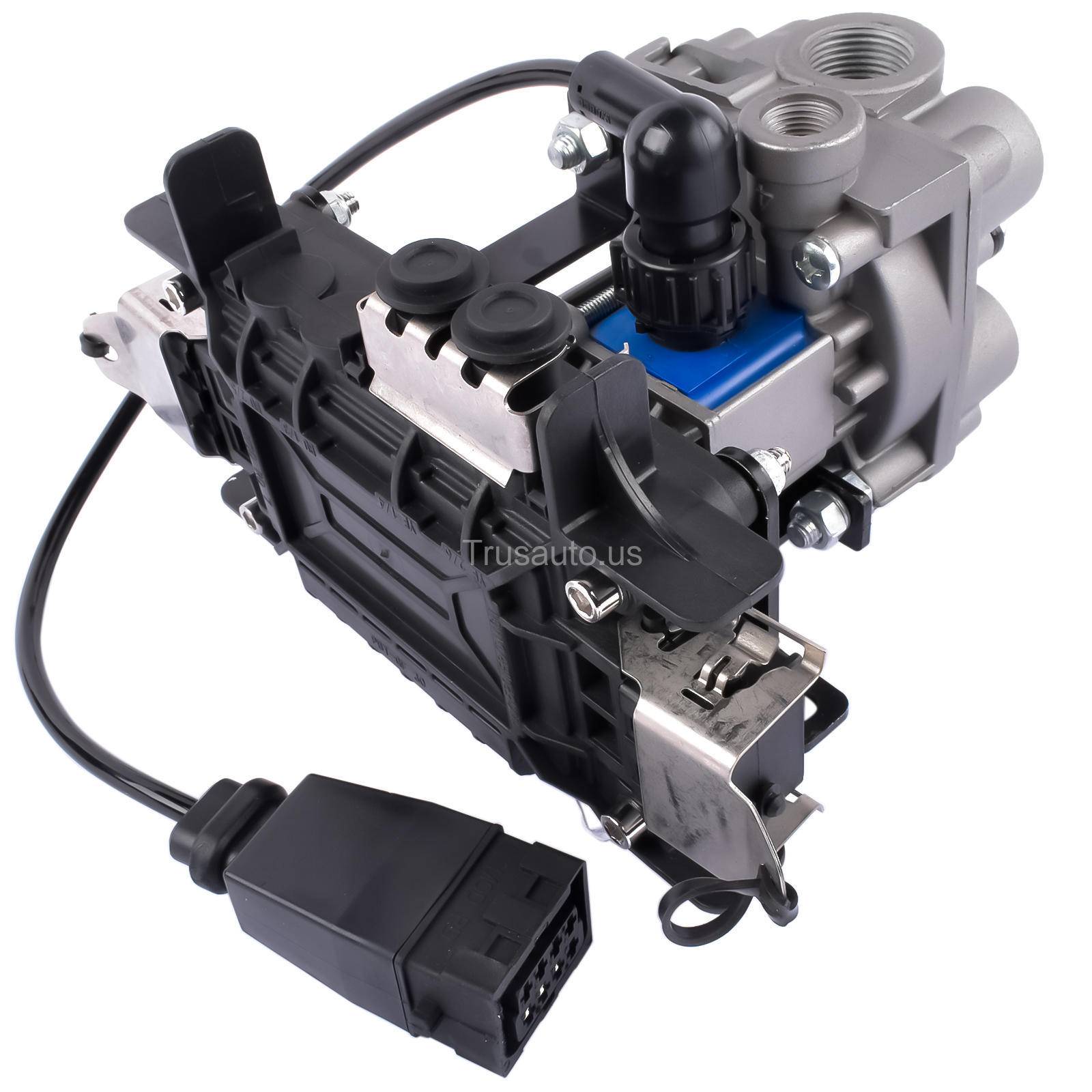

This Modulator Valve Assembly is a reliable replacement for the 4005001010 Electronic Control Unit Assembly for commercial trucks.
OEM Part Number:
4005001010, TTPTDAS4005001010G, 4005001010X
22801004, 10008469, ABS4005001010, ABS400-500-101-0
400-500-101-0, WAB4005001010, WAB400-500-101-0
S4005001010, S400-500-101-0, GTAS4005001010, GTAS400-500-101-0
ABS5344, ABSR955344, 1ABS00119, 43AVS402, 5344, ABS00119, GEN2-1010
Specifications:
◻️12V 2S1M
◻️ Used on trailers produced after March 1,2001
◻️ Recommended for use with standard trailers
◻️ Do not use with turntables, steerables or dollies
◻️ Max operating pressure: 13 bar
◻️ IP 66 protection class
◻️ Temperature range of -40°C to +65°C
◻️ Port 1: 2x 314-14 Dry Seal NPTF
◻️ Port 2: 4x 3/8-18 Dry Seal NPTF
◻️ Port 3: Flap exhaust
◻️ Port 4: 3/8-18 Dry Seal NPTF
◻️ Control Port Diameter: 3/8-18 in.
◻️ Delivery Port Diameter: 3/8-18 in.
◻️ Freight Class: 70
◻️ Supply Port Diameter: 3/4-14 in.
◻️ Voltage: 12V
