part number

USQ1072

Specifications:

• Single Speed
• 115/230 Volts
• 13.4/6.7 Max Amps
• 1.3 Service Factor
• Threaded Shaft
• 48Y Frame
• 3450 RPM/60 HZ
• 3/4 HP
• Capacitor Start

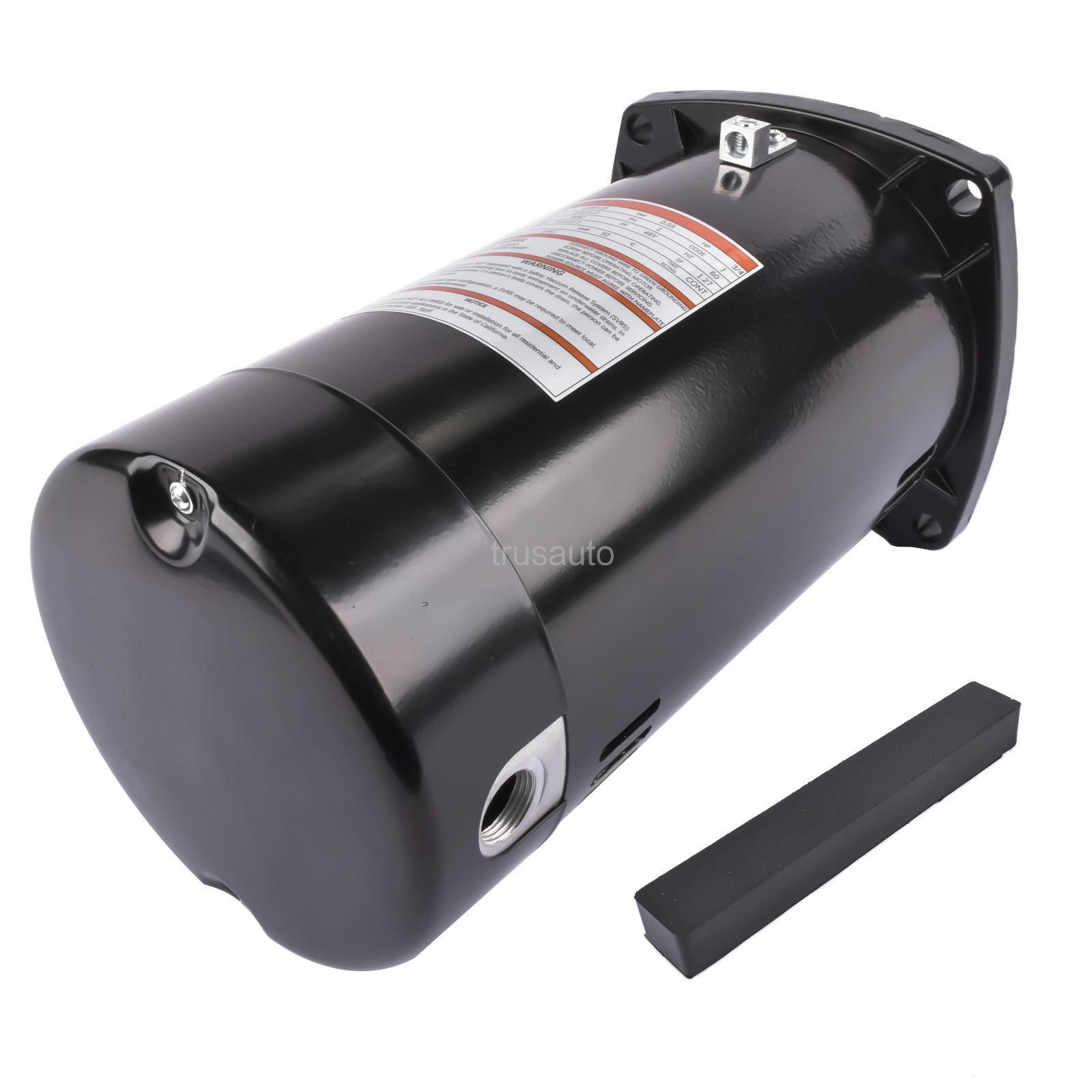

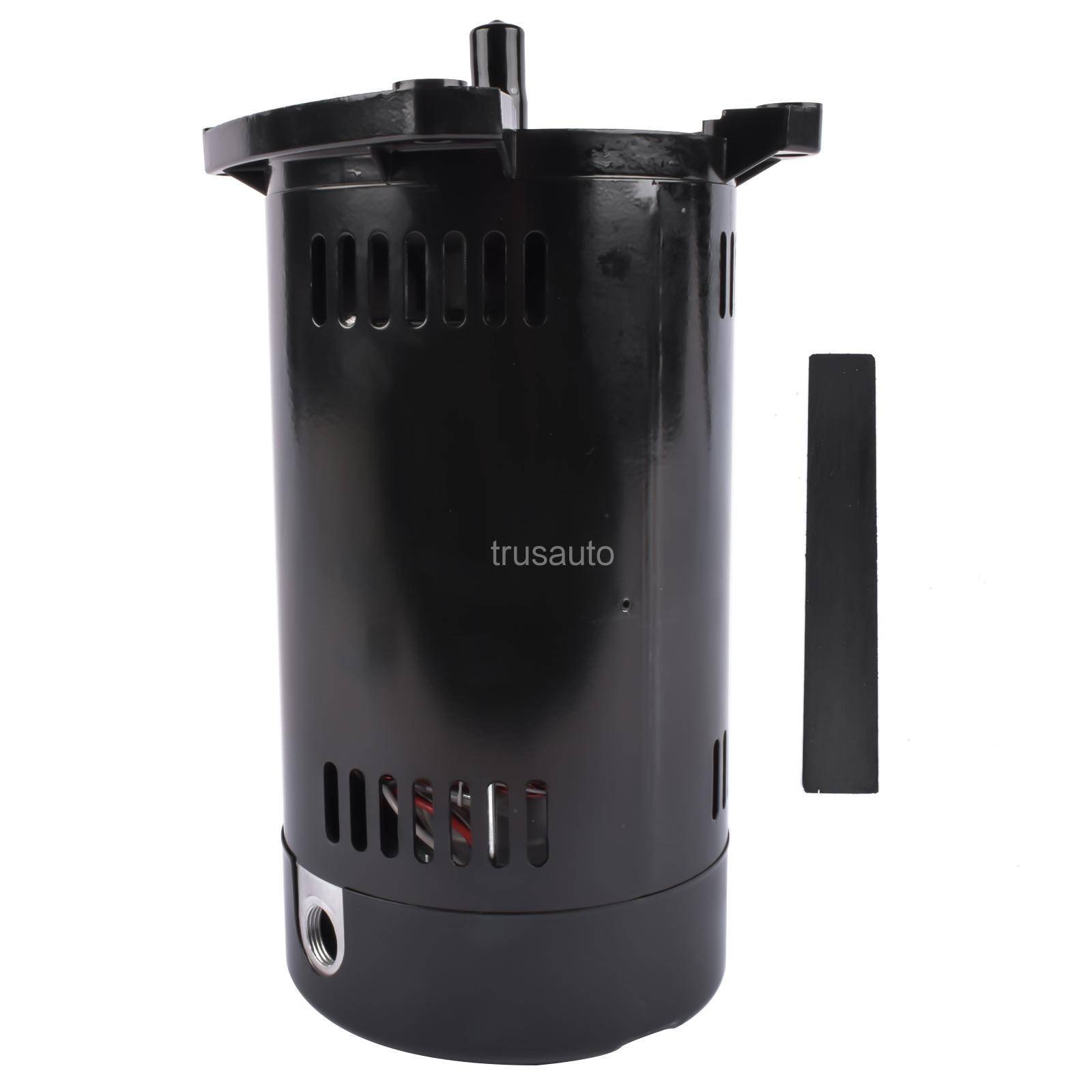

• Square Flange Pool Motor
• ADVANTAGES
  High efficiency: The motor USQ1072 is designed to be highly efficient, helping to reduce energy consumption and increase the efficiency of the swimming pool.
  High output horsepower: The motor USQ1072 has high output horsepower, which can provide stable and powerful power and flow to meet the needs of swimming pools.
  High-quality materials: The motor USQ1072 is made of high-quality materials with good durability.
• Features:
  Auto Protector
  Class B Insulation
  Rotation: CCW Pump End
  Sealed Ball Bearings
  60 Hz
  Capacitor Start
  Open Dripproof
  303 Stainless Steel Threaded Shaft
  50 C Ambient

INSTALLATION STEPS :

1. Turn off the power:

Before starting the installation, you need to turn off the power to the pool pump motor and other related power sources.

2. Remove the old motor:

Use tools to remove the existing motor on the water pump. Loosen the fixation bolts and gently remove the connection screw on the wire connector.

3. Preparation:

Check whether the dimensions of the motor are compatible with your floor bracket or bearing cover. If your floor bracket is not compatible, you may need to purchase a motor installation kit.

4. Install the new motor:

Fix the motor on the bracket of the water pump, ensuring the motor is stable. Use the fixation screws, and check if bearing cover and rotor rotation direction are correct and the terminal connection is tight and correct.

5. Test startup:

After the installation is complete, start the pool pump motor for a test run and observe the working status of the motor and the operation of each component to ensure it runs normal.
