Parameters
Part Type
replacement
Manufacturer Part Number
1244-6661
Interchange Part Number
1244-6661
Compatibility
| Make | Model | Year | Trim | Engine | Notes |
|---|---|---|---|---|---|
 No Data Yet | |||||
$ 405.00
Market Price: $469.80 0 People Puchased
Free Delivery

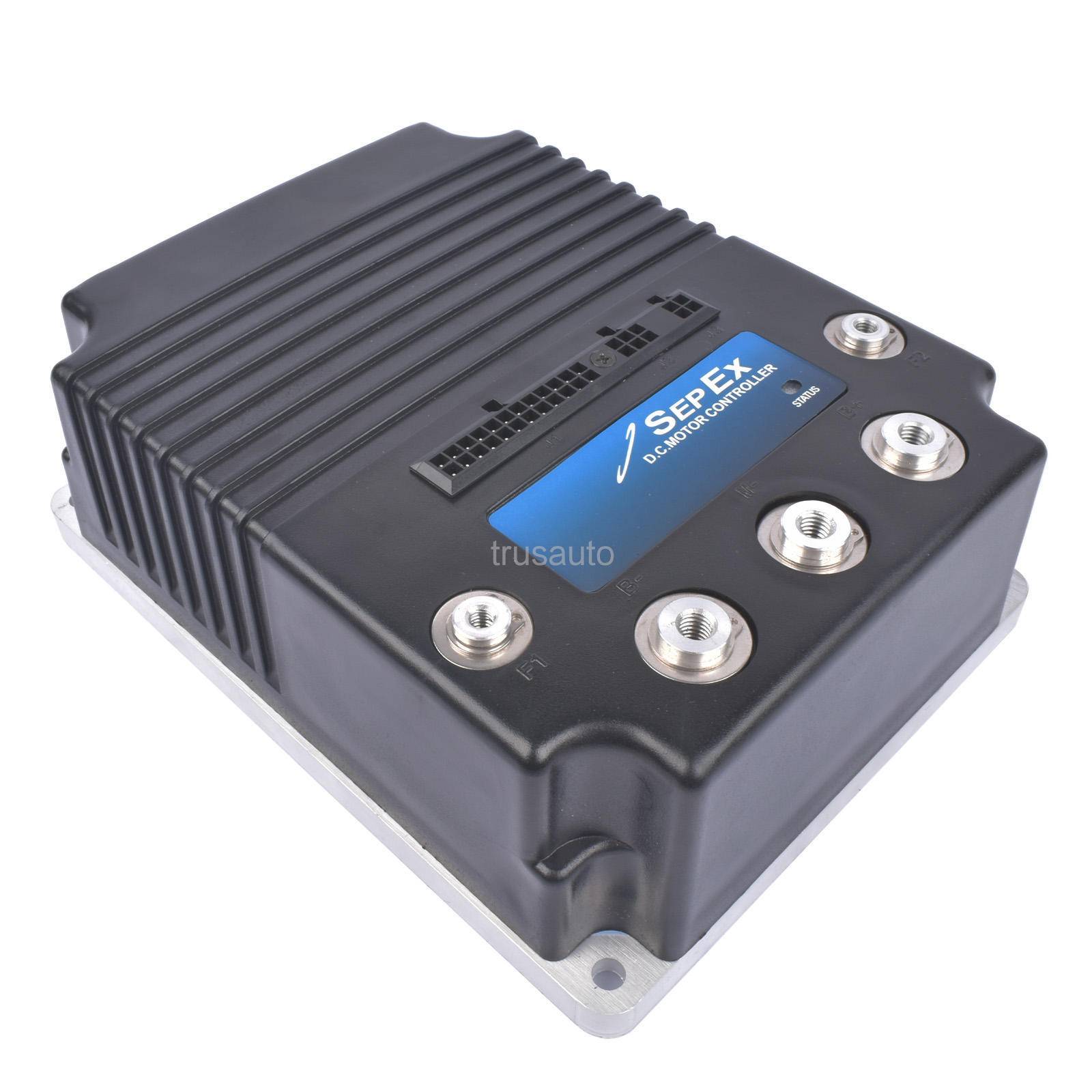

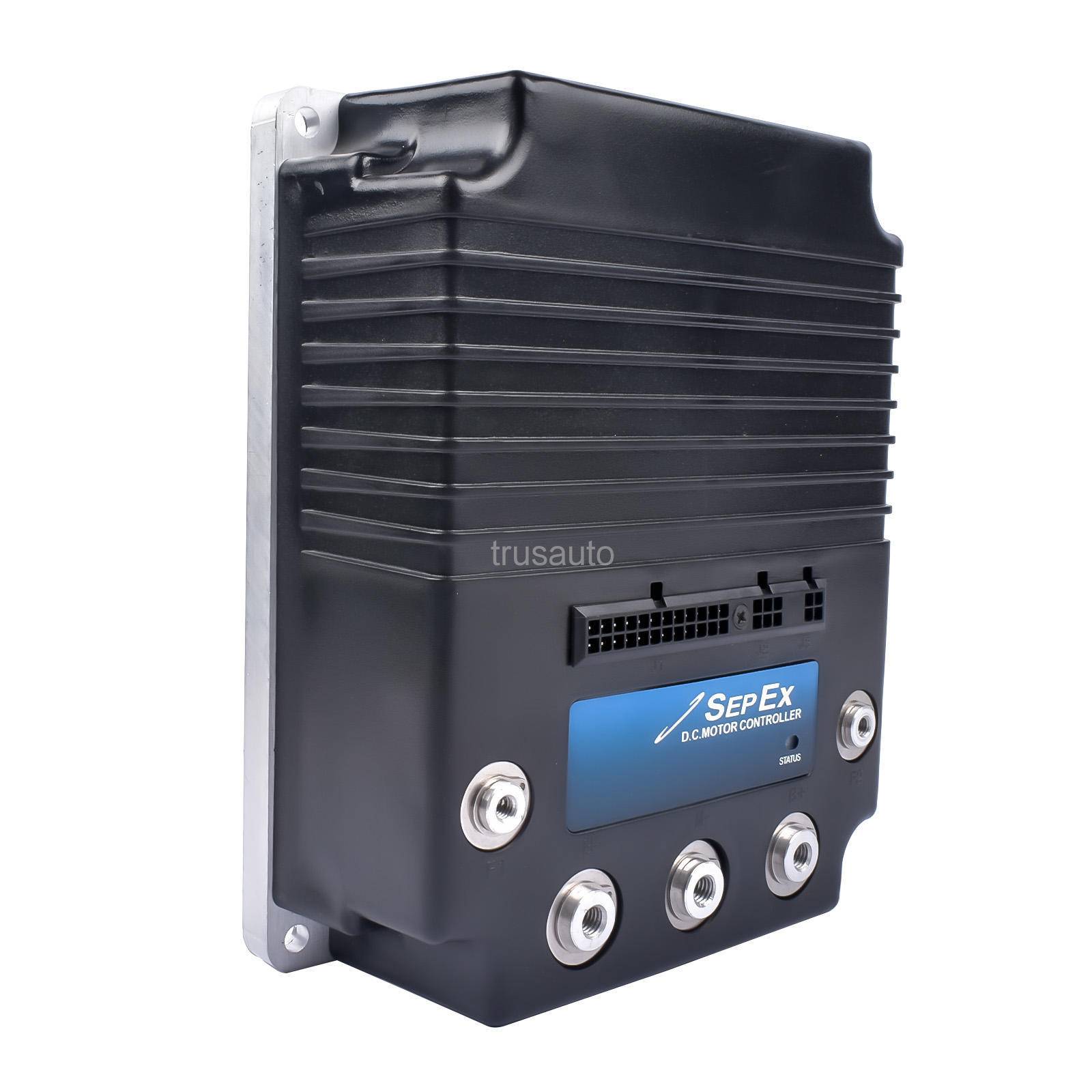

72V 84V 60V 42V Curtis Motor Speed Controller for Forklift Curtis 1244-6661
Quantity:
-
+
If you have a large demand for this product, please send an email to sale@trusauto.us, and we will contact you as soon as possible.
Expected shipping date : Shipped on the second business day.
Shipping cost : For shipping within the United States, most regions are eligible for free delivery, with only a few remote areas subject to pricing based on specific shipping rules.
Return : 60 days returns. Buyer pays for return shipping.
Protection : within 2 years.
$ 405.00
Market Price: $469.80 0 People Puchased
Free Delivery
72V 84V 60V 42V Curtis Motor Speed Controller for Forklift Curtis 1244-6661
Quantity:
-
+
If you have a large demand for this product, please send an email to sale@trusauto.us, and we will contact you as soon as possible.
Features:
Curtis Model: 1244-6661
Norminal Battery Voltage (Volts): 72V (default setting), 84V, 60V or 48V
Amature Current Limit (amps): 600
Amature 1 Minute Current Rating (amps): 600
Amature 1 Hour Current Rating (amps): 140
Field 2 Minute Current Rating (amps): 50
Net Weight: 3.9 kg
Specifications:
- PWM operating frequency: 16 kHz
- Electrical isolation to heatsink (min.):500 VAC
- KSI input current (no contactors engaged):160 mA without programmer;200 mA with programmer
- Logic input voltage:>7.5 V High;<1 V Low
- Logic input current: 10 mA
- Operating ambient temperature range: -40°C to 50°C
- Heatsink overtemperature cutback: 85°C
- Heatsink undertemperature cutback: -25°C
- Package environmental rating:IP64/IP67
