Parameters
Part Type
replacement
Manufacturer Part Number
1244-5651, 12445651
Interchange Part Number
1244-5651, 12445651
Compatibility
| Make | Model | Year | Trim | Engine | Notes |
|---|---|---|---|---|---|
 No Data Yet | |||||
$ 335.57
Market Price: $355.71 0 People Puchased
Free Delivery

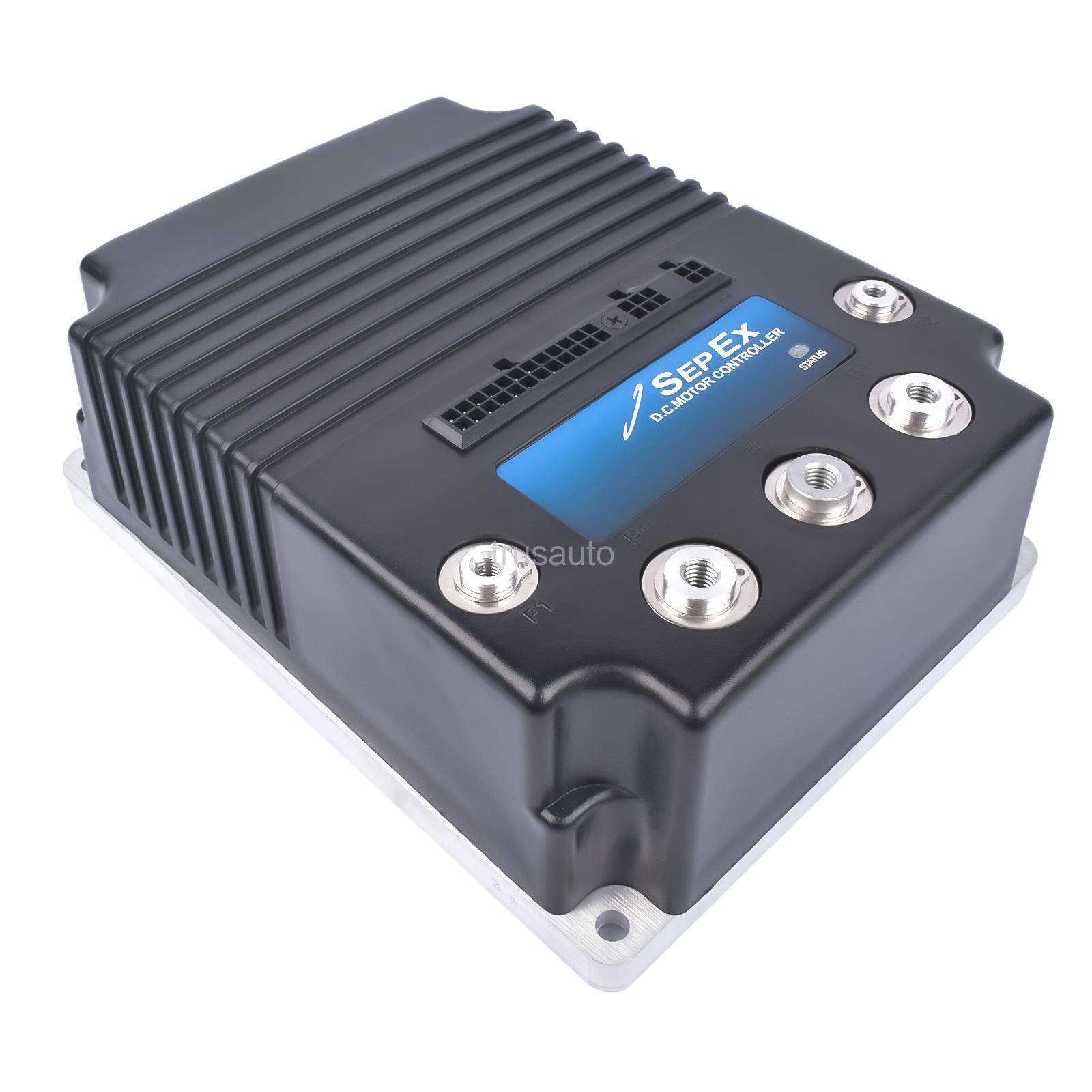

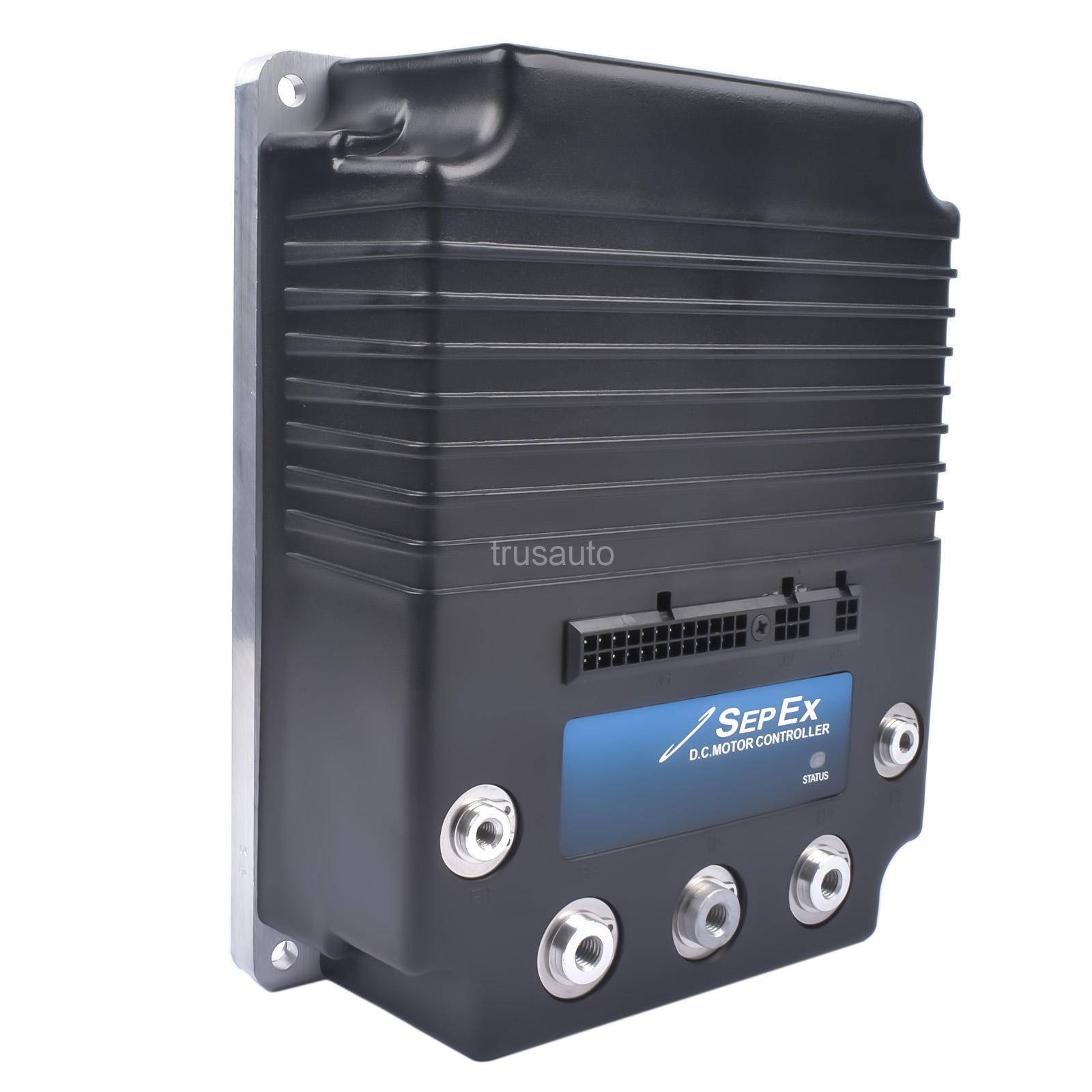

1244-5651 Fit for Curtis SepEx Controller Programmable MultiMode DC 36V/48V 600A
Quantity:
-
+
If you have a large demand for this product, please send an email to sale@trusauto.us, and we will contact you as soon as possible.
Expected shipping date : Shipped on the second business day.
Shipping cost : For shipping within the United States, most regions are eligible for free delivery, with only a few remote areas subject to pricing based on specific shipping rules.
Return : 60 days returns. Buyer pays for return shipping.
Protection : within 2 years.
$ 335.57
Market Price: $355.71 0 People Puchased
Free Delivery
1244-5651 Fit for Curtis SepEx Controller Programmable MultiMode DC 36V/48V 600A
Quantity:
-
+
If you have a large demand for this product, please send an email to sale@trusauto.us, and we will contact you as soon as possible.
OE Number
1244-5651
12445651
Fits For the Following Models
Curtis Electric Forklift Golf Car
Specification: 600A;36V/48V(optional);0-5v/0-5k/5k-0(optional)
Note: Please send the nameplate picture of the old controller when placing an order, otherwise the default setting is 48V 600A 5k-0Ω
PWM operating frequency: 16 kHz
Electrical isolation to heatsink (min.): 500 VAC
KSI input current (no contactors engaged):160 mA without programmer. 200 mA with programmer
Logic input voltage: >7.5 V High; <1 V Low
Logic input current: 10 mA
Operating ambient temperature range: -40°C to 50°C
Heatsink overtemperature cutback: 85°C
Heatsink undertemperature cutback: -25°C
Package environmental rating: IP64 / IP67
Key Features:
Curtis Model: 1244-5651
Norminal Battery Voltage (Volts): 48V (default setting) or 36V
Amature Current Limit (amps): 600
Amature 2 Minute Current Rating (amps): 600
Amature 1 Hour Current Rating (amps): 160
Field 2 Minute Current Rating (amps): 50
