Parameters
Part Type
replacement
Manufacturer Part Number
104-1028-006, 104-1028
Interchange Part Number
104-1028-006, 104-1028
Compatibility
| Make | Model | Year | Trim | Engine | Notes |
|---|---|---|---|---|---|
 No Data Yet | |||||
$ 115.20
Market Price: $133.64 0 People Puchased
Free Delivery

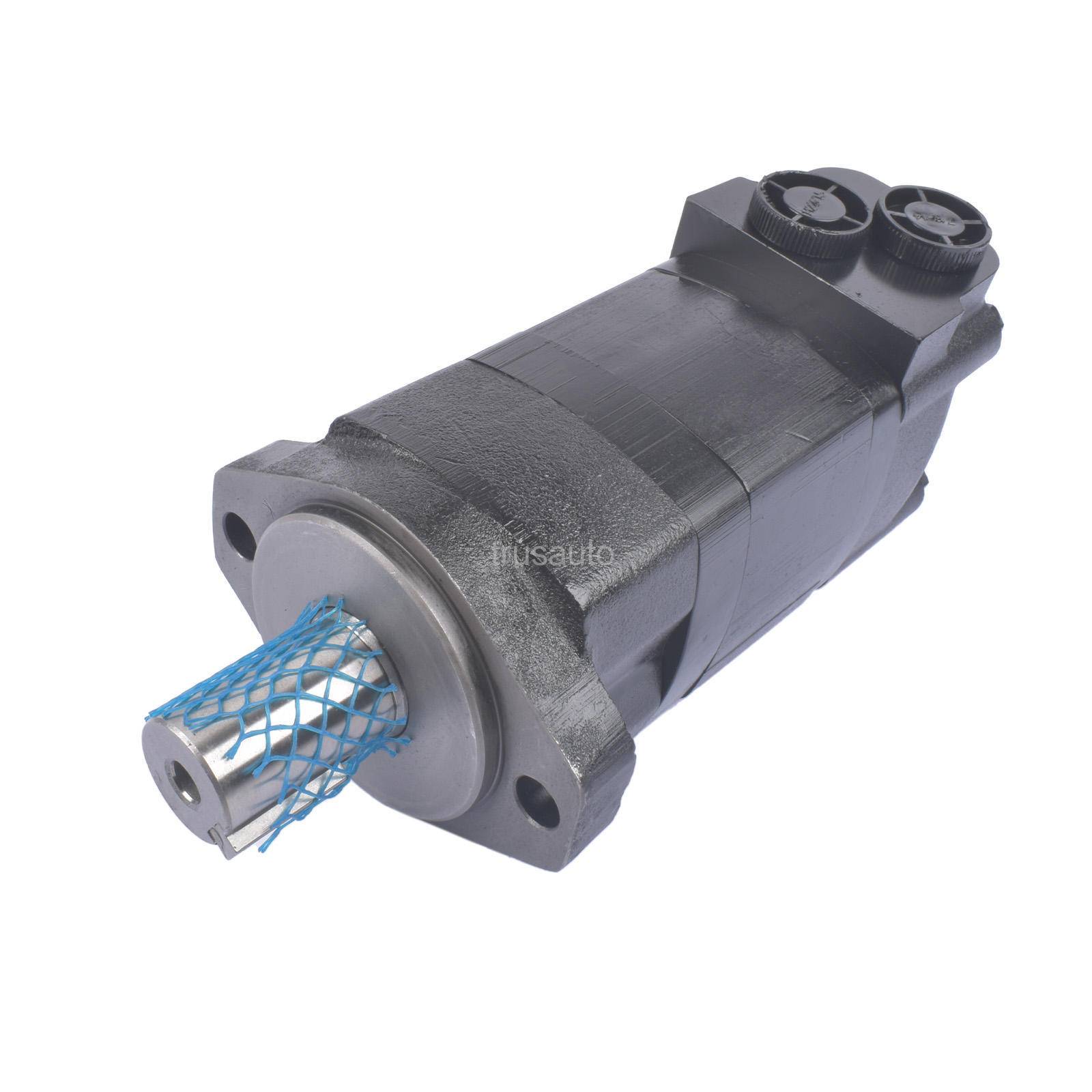

For Char-Lynn 104-1028-006 Eaton 104-1028 Hydraulic Engine Motor 306.6 CM3/R
Quantity:
-
+
If you have a large demand for this product, please send an email to sale@trusauto.us, and we will contact you as soon as possible.
Expected shipping date : Shipped on the second business day.
Shipping cost : For shipping within the United States, most regions are eligible for free delivery, with only a few remote areas subject to pricing based on specific shipping rules.
Return : 60 days returns. Buyer pays for return shipping.
Protection : within 2 years.
$ 115.20
Market Price: $133.64 0 People Puchased
Free Delivery
For Char-Lynn 104-1028-006 Eaton 104-1028 Hydraulic Engine Motor 306.6 CM3/R
Quantity:
-
+
If you have a large demand for this product, please send an email to sale@trusauto.us, and we will contact you as soon as possible.
Replacement Part Number:
104-1028-006, 104-1028
Applications:
Fit for Eaton Char-Lynn: 2000 Series
Specifications:
Mounting Type:Standard
Shaft Type:Straight
Mounting:Standard, 2 Bolt
Fit Models:Char-Lynn Eaton 2000 Series
Replaces OEM:Char-Lynn 104-1028-006,Eaton 104-1028
Shaft Length:1-1/4"
Inlet Port Diameter:7/8-14 O-ring Staggered
Rated Power:305 [18.7]
Outlet Port Diameter:7/8-14 O-ring Staggered
DISPLACEMENT: 306.6 CM3/R [18.71 IN3/R]
MOUNTING TYPE: STANDARD, 2 BOLT; 82.6 [3.25] PILOT DIA. 13.59 [.535] DIA. HOLES ON 106.4 [4.19] DIA. BOLT CIRCLE. SAE A
OUTPUT SHAFT: 31.75 [1.250] DIA. STRAIGHT SHAFT WITH .375-16UNC-2B THREAD IN END, 7.938 [.3125] SQ X 31.75 [1.250] STRAIGHT KEY
PORTS: .875-14 UNF-2B SAE O-RING PORTS - STAGGERED PORTS
CASE FLOW OPTION: .4375-20 UNF-2B SAE O-RING PORT
Note:
If you are not very sure about the compatibility, please send us your VIN, and we will check it for you.
