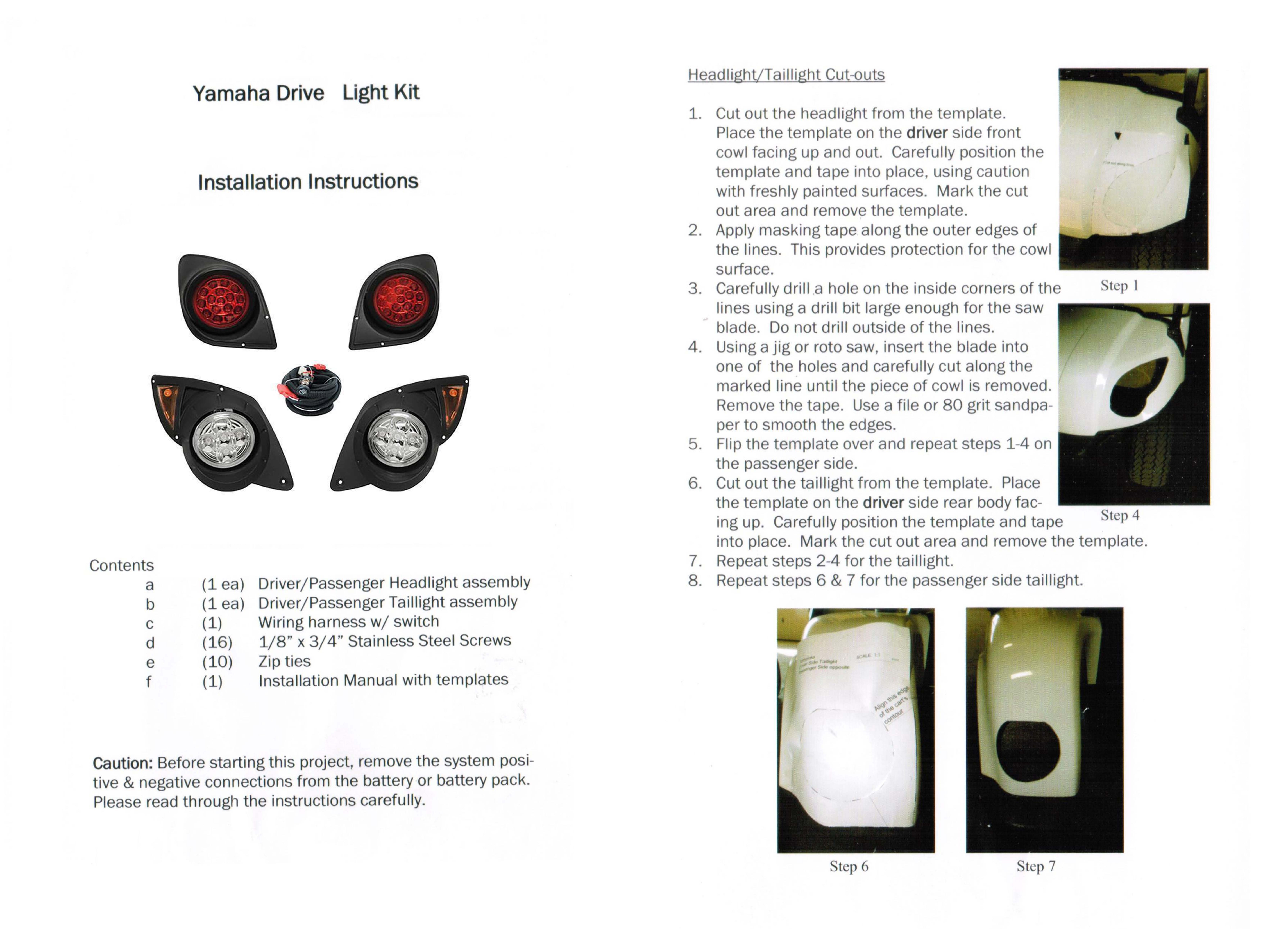

Installation Reference:

https://www.youtube.com/watch?v=5rLoBLXueQsClick here to view the operating instructions

Description:

Golf Cart LED Light Kit for Yamaha G29 YDR Drive 07+ &Turn Signal Horn Brake 12V

- Golf cart LED light kit  fit for 2007-up Yamaha G29 Gas or Electric Carts 12V,If your golf cart is 48v or 36v,Pls note that you MUST need a 48v-12v or 36v-12v voltage reducer.OUR LIGHT KIT NOT INCLUDED REDUCER.

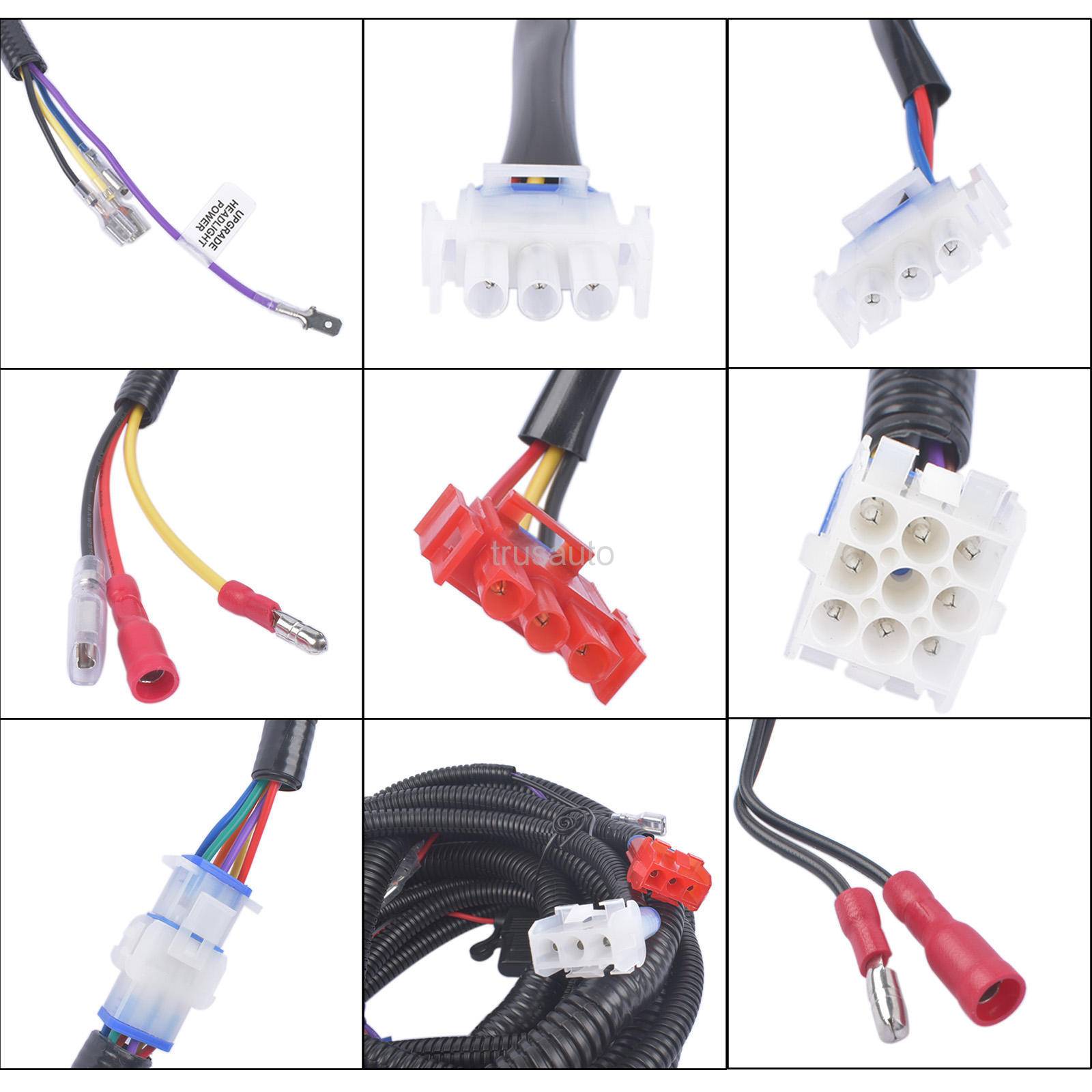

- Package included: golf cart LED light kit AND golf cart universal deluxe light upgrade kit. 2x LED head lights, 2xLED tail lights, turn signals and switch, horn, brake lights, harness hardware and instruction.

- Golf cart headlight tail light kits come with universal deluxe light upgrade kit ,this deluxe kit included the up-gradable harness, that allows you to extend to brake, hazard,horn and turn signal function.there are front turn signals as well as rear turn signals, hazard flasher, head lights and brake lights.(AS LED headlight and tail light kit are all LED light that are bright enough, so the turn singal does NOT with the function of high beam. )

- Living in a golf cart community and using cart daily to get around, a suitable set of car lights is very necessary for your golf cart ,you will get a great night vision and be safe after your golf cart install bright led golf cart lights.

Will Fit Following Models:

2007-up Yamaha G29E, G29A

Note:

Before installing please check the product according to the following steps as the first thing after you receive the car light kit. After all parts of the car light work well, then install it on the golf cart:

1.After installing the wire, connect the power supply (must be 12 voltage ,and make sure the positive and negative poles is correct , )

2.Turn on the emergency switch ( the red one), and the turn signal light should flash before and after the test. --to check the control box and the connection line to work well.

3.Turn off emergency switch and spin the turn signal switch to ON, the headlights and taillights should be on,--to check the head light taillights and the signal switch are all work well .

4.The brake lever switch( signal switch) turns to the left and right, the corresponding left and right signal lights flash---to check controller and signal switch is work well.

5.Step on the pedal and the tail light will brighten, release it and go off.---To check the brake pedal.
