300-130

Parameters

Part Type
replacement
Manufacturer Part Number
300-130
Interchange Part Number
300-130

Compatibility

MakeModelYearTrimEngineNotes
No Data Yet

OEM Part Number

300-130

Fit For the Following Models

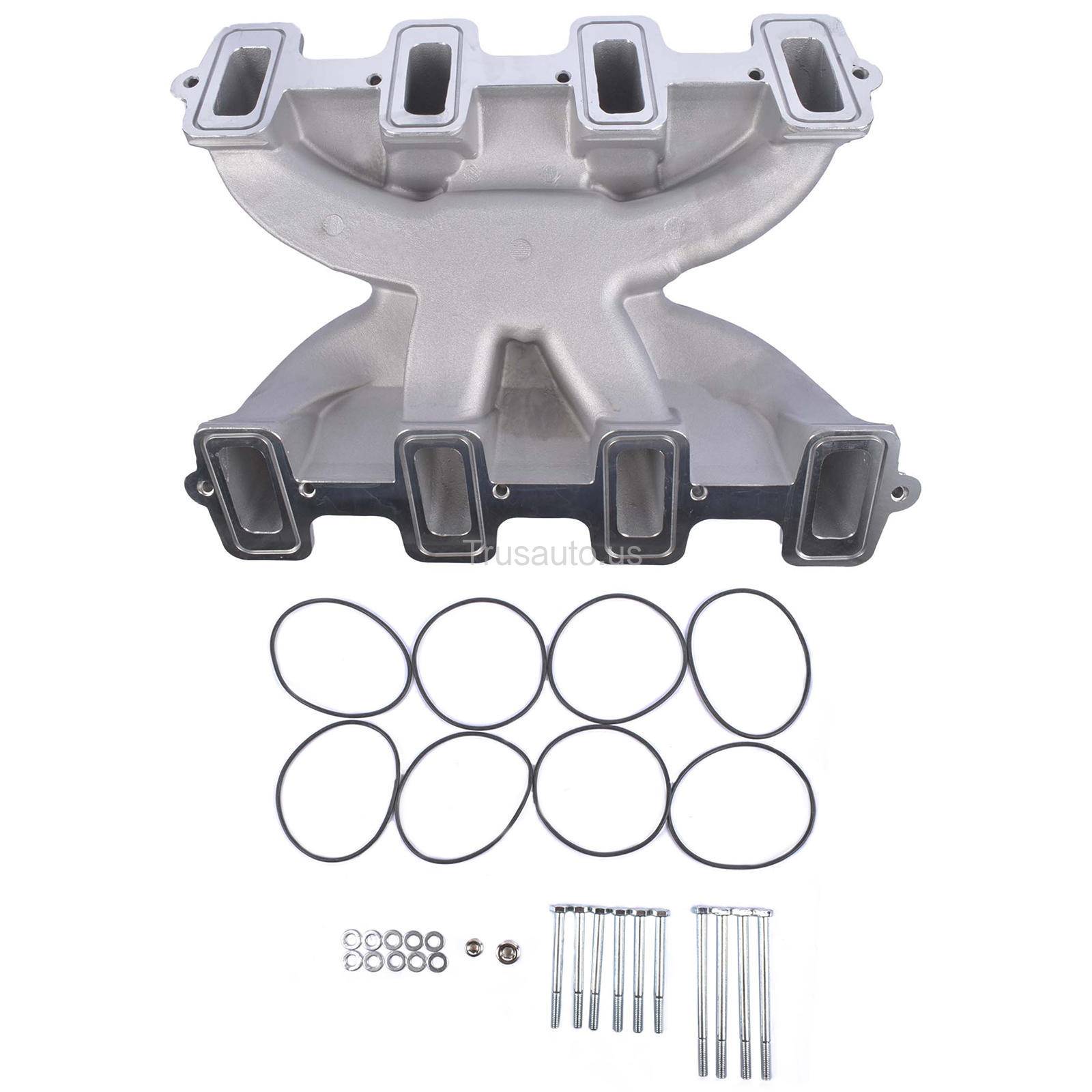

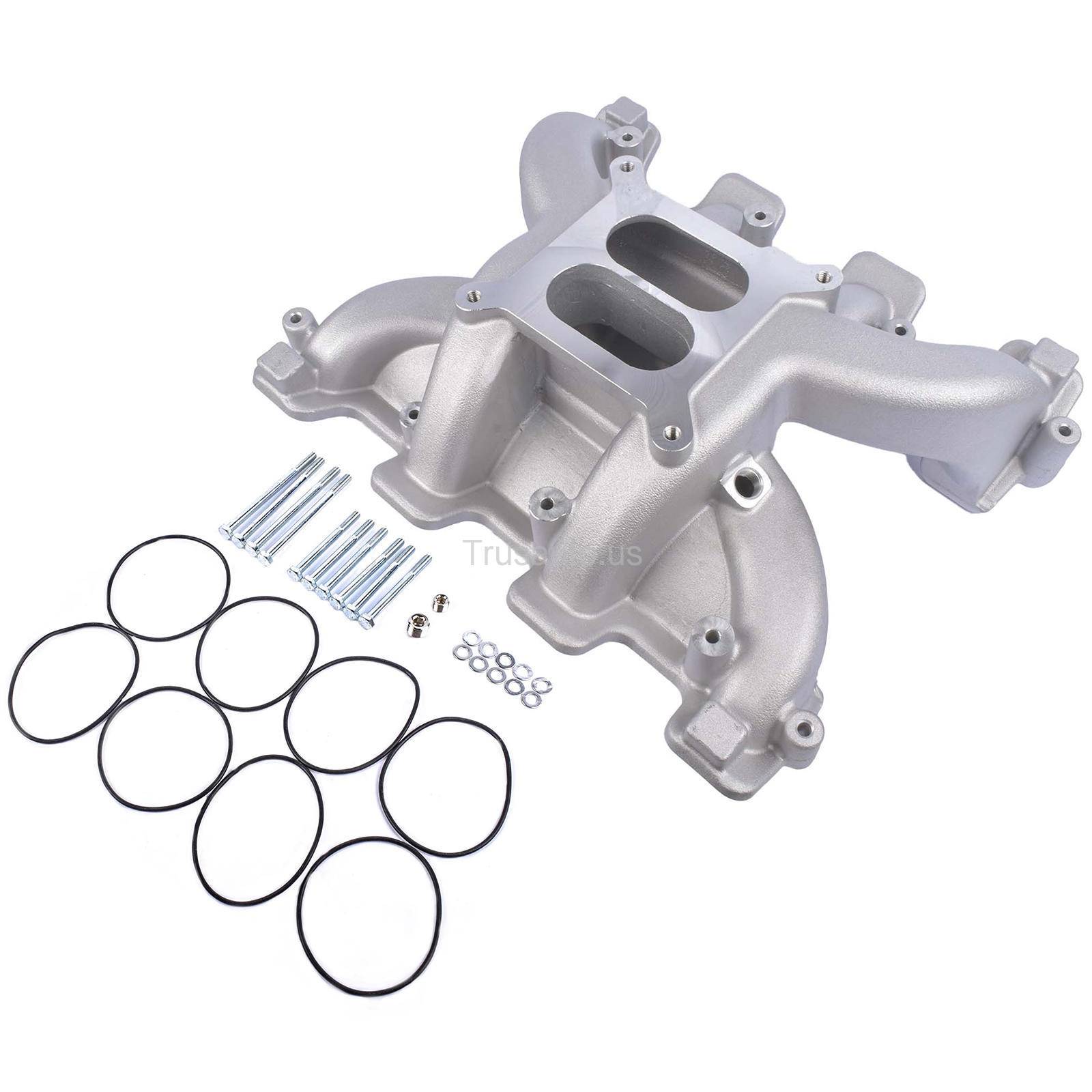

Dual Plane Mid-Rise Intake Manifold

  • All GM LS Gen III or IV engines equipped with LS1/LS2/LS6 style cathedral port cylinder heads.
  • Square Bore Carb Flange
  • 1500-6500 RPM
  • Natural FinishSpecifications
  • RPM Range: 1,500-6,500
  • Weight: 15.14 lbs
  • Front Height: 5.07" from front lifter valley cover to carb mounting flange
  • Rear Height: 6.14" from rear lifter valley cover to carb mounting flange
  • Port Size: 1" W x 2.72" H
  • Carb Flange Angle: 0°
  • Carb Flange: Standard 4150, accepts up to 1.75" diameter throttle bores
  • Vacuum Port Thread: 3/8" NPT
  • MAP Sensor Port Thread: 1/8" NPTParts Supplied with Each Intake:
  • Zinc-plated hex head cap mounting bolts and washers
  • 3/8" NPT hex socket pipe plug (to block the manifold vacuum port if necessary)
  • 1/8" NPT hex socket pipe plug (to block the MAP sensor port if necessary)
  • (8) Viton® O-ring cylinder head mounting flange gaskets

Chevrolet Corvette 2007 Base Convertible 2-Door 6.0L 5967CC 364Cu. In. V8 GAS OHV

Chevrolet Corvette 2007 Base Hatchback 2-Door 6.0L 5967CC 364Cu. In. V8 GAS OHV

Chevrolet Corvette 2006 Base Convertible 2-Door 6.0L 5967CC 364Cu. In. V8 GAS OHV

Chevrolet Corvette 2006 Base Hatchback 2-Door 6.0L 5967CC 364Cu. In. V8 GAS OHV

Cadillac CTS 2005 V Sedan 4-Door 5.7L 346Cu. In. V8 GAS OHV

Chevrolet Corvette 2005 Base Convertible 2-Door 6.0L 5967CC 364Cu. In. V8 GAS OHV

Chevrolet Corvette 2005 Base Hatchback 2-Door 6.0L 5967CC 364Cu. In. V8 GAS OHV

Cadillac CTS 2004 V Sedan 4-Door 5.7L 346Cu. In. V8 GAS OHV

Chevrolet Corvette 2004 Base Convertible 2-Door 5.7L 350Cu. In. V8 GAS OHV

Chevrolet Corvette 2004 Base Coupe 2-Door 5.7L 350Cu. In. V8 GAS OHV

Chevrolet Corvette 2004 Base Hatchback 2-Door 5.7L 350Cu. In. V8 GAS OHV

Chevrolet Corvette 2004 Z06 Coupe 2-Door 5.7L 350Cu. In. V8 GAS OHV

Chevrolet Corvette 2003 50th Anniversary Edition Convertible 2-Door 5.7L 350Cu. In. V8 GAS OHV

Chvrolet Corvette 2003 50th Anniversary Edition Hatchback 2-Door 5.7L 350Cu. In. V8 GAS OHV

Chevrolet orvette 2003 50th Anniversary Edition Pace Car Coupe 2-Door 5.7L 350Cu. In. V8 GAS OHV

Chevrolet Corvette 2003 Base Convertible 2-Door 5.7L 350Cu. In. V8 GAS OHV

Chevrolet Corvette 2003 Base Coupe 2-Door 5.7L 350Cu. In. V8 GAS OHV

Chevrolet Corvette 2003 Base Hatchback 2-Door 5.7L 350Cu. In. V8 GAS OHV

Chevrolet Corvette 2003 Z06 Coupe 2-Door 5.7L 350Cu. In. V8 GAS OHV

Chevrolet Camaro 2002 Z28 Convertible 2-Door 5.7L 350Cu. In. V8 GAS OHV

Chevrolet Camaro 2002 Z28 Coupe 2-Door 5.7L 350Cu. In. V8 GAS OHV

Chevrolet Camaro 2002 Z28 SS Convertible 2-Door 5.7L 350Cu. In. V8 GAS OHV

Chevrolet Camaro 2002 Z28 SS Coupe 2-Door 5.7L 350Cu. In. V8 GAS OHV

Chevrolet Corvette 2002 Base Convertible 2-Door 5.7L 350Cu. In. V8 GAS OHV

Chevrolet Corvette 2002 Base Coupe 2-Door 5.7L 350Cu. In. V8 GAS OHV

Chevrolet Corvette 2002 Base Hatchback 2-Door 5.7L 350Cu. In. V8 GAS OHV

Chevrolet Corvette 2002 Z06 Coupe 2-Door 5.7L 350Cu. In. V8 GAS OHV

Chevrolet Camaro 2001 Z28 Convertible 2-Door 5.7L 350Cu. In. V8 GAS OHV

Chevrolet Camaro 2001 Z28 Coupe 2-Door 5.7L 350Cu. In. V8 GAS OHV

Chevrolet Camaro 2001 Z28 SS Convertible 2-Door 5.7L 350Cu. In. V8 GAS OHV

Chevrolet Camaro 2001 Z28 SS Coupe 2-Door 5.7L 350Cu. In. V8 GAS OHV

Chevrolet Corvette 2001 Base Convertible 2-Door 5.7L 350Cu. In. V8 GAS OHV

Chevrolet Corvette 2001 Base Coupe 2-Door 5.7L 350Cu. In. V8 GAS OHV

Chevrolet Corvette 2001 Base Hatchback 2-Door 5.7L 350Cu. In. V8 GAS OHV

Chevrolet Corvette 2001 Z06 Coupe 2-Door 5.7L 350Cu. In. V8 GAS OHV

Chevrolet Camaro 2000 Z28 Convertible 2-Door 5.7L 350Cu. In. V8 GAS OHV

Chevrolet Camaro 2000 Z28 Coupe 2-Door 5.7L 350Cu. In. V8 GAS OHV

Chevrolet Camaro 2000 Z28 SS Convertible 2-Door 5.7L 350Cu. In. V8 GAS OHV

Chevrolet Camaro 2000 Z28 SS Coupe 2-Door 5.7L 350Cu. In. V8 GAS OHV

Chevrolet Corvette 2000 Base Convertible 2-Door 5.7L 350Cu. In. V8 GAS OHV

Chevrolet Corvette 2000 Base Coupe 2-Door 5.7L 350Cu. In. V8 GAS OHV

Chevrolet Corvette 2000 Base Hatchback 2-Door 5.7L 350Cu. In. V8 GAS OHV

Chevrolet Camaro 1999 Z28 Convertible 2-Door 5.7L 350Cu. In. V8 GAS OHV

Chevrolet Camaro 1999 Z28 Coupe 2-Door 5.7L 350Cu. In. V8 GAS OHV

Chevrolet Camaro 1999 Z28 SS Convertible 2-Door 5.7L 350Cu. In. V8 GAS OHV

Chevrolet Camaro 1999 Z28 SS Coupe 2-Door 5.7L 350Cu. In. V8 GAS OHV

Chevrolet Corvette 1999 Base Convertible 2-Door 5.7L 350Cu. In. V8 GAS OHV

Chevrolet Corvette 1999 Base Coupe 2-Door 5.7L 350Cu. In. V8 GAS OHV

Chevrolet Corvette 1999 Base Hatchback 2-Door 5.7L 350Cu. In. V8 GAS OHV

Chevrolet Camaro 1998 Z28 Convertible 2-Door 5.7L 350Cu. In. V8 GAS OHV

Chevrolet Camaro 1998 Z28 Coupe 2-Door 5.7L 350Cu. In. V8 GAS OHV

Chevrolet Camaro 1998 Z28 SS Convertible 2-Door 5.7L 350Cu. In. V8 GAS OHV

Chevrolet Camaro 1998 Z28 SS Coupe 2-Door 5.7L 350Cu. In. V8 GAS OHV

Chevrolet Corvette 1998 Base Convertible 2-Door 5.7L 350Cu. In. V8 GAS OHV

Chevrolet Corvette 1998 Base Coupe 2-Door 5.7L 350Cu. In. V8 GAS OHV

Chevrolet Corvette 1998 Base Hatchback 2-Door 5.7L 350Cu. In. V8 GAS OHV

Chevrolet Corvette 1998 Indianapolis 500 Pace Car Convertible 2-Door 5.7L 350Cu. In. V8 GAS OHV

Chevrolet Corvette 1998 Indianapolis 500 Pace Car Hatchback 2-Door 5.7L 350Cu. In. V8 GAS OHV

Chevrolet Corvette 1997 Base Coupe 2-Door 5.7L 350Cu. In. V8 GAS OHV

Chevrolet Corvette 1997 Base Hatchback 2-Door 5.7L 350Cu. In. V8 GAS OHV

$ 109.80
Market Price: $119.69  0 People Puchased
Free Delivery

Dual Plane Carbureted Intake Manifold for GM LS Gen III/IV LS1/LS2/LS6 5.7 6.0L

Quantity:
-
+
  / 10 Available
If you have a large demand for this product, please send an email to sale@trusauto.us, and we will contact you as soon as possible.
Expected shipping date : Shipped on the second business day.
Shipping cost : For shipping within the United States, most regions are eligible for free delivery, with only a few remote areas subject to pricing based on specific shipping rules.
Return : 60 days returns. Buyer pays for return shipping.
Protection : within 2 years.
